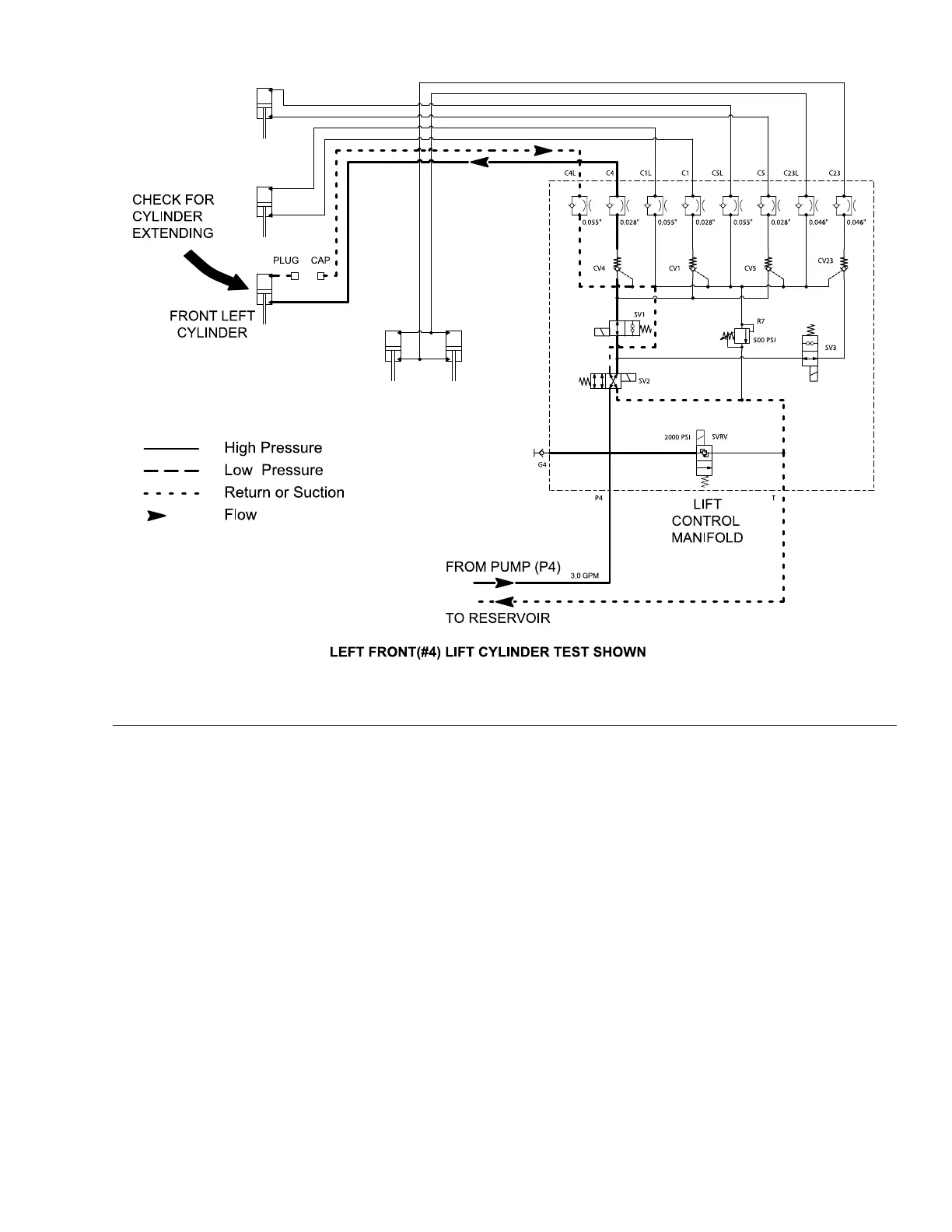

TestingtheLiftCircuit–LiftCylinderInternalLeakage(5610-D)
g216146
Figure138
Performtheliftcylinderinternalleakagetestifyouidentifyacuttingreelraiseand
lowerproblem.Thistestdeterminesiftheliftcylinderbeingtestedisdamaged.
Theliftcylindersmustbetestedindividually.
Note:Theraise/lowercircuitoperationcanbeaffectedbytheliftcylinder
binding,extraweightonthecuttingreel,and/orbindingoftheliftcomponents.
Ensurethattheseitemsarecheckedbeforecontinuingwiththeliftcylinder
internalleakagetest.
Reelmaster
®
5410/5510/5610Series
Page6–139
HydraulicSystem:TestingtheHydraulicSystem
15216SLRevC
