ServicingtheBedbarAdjuster

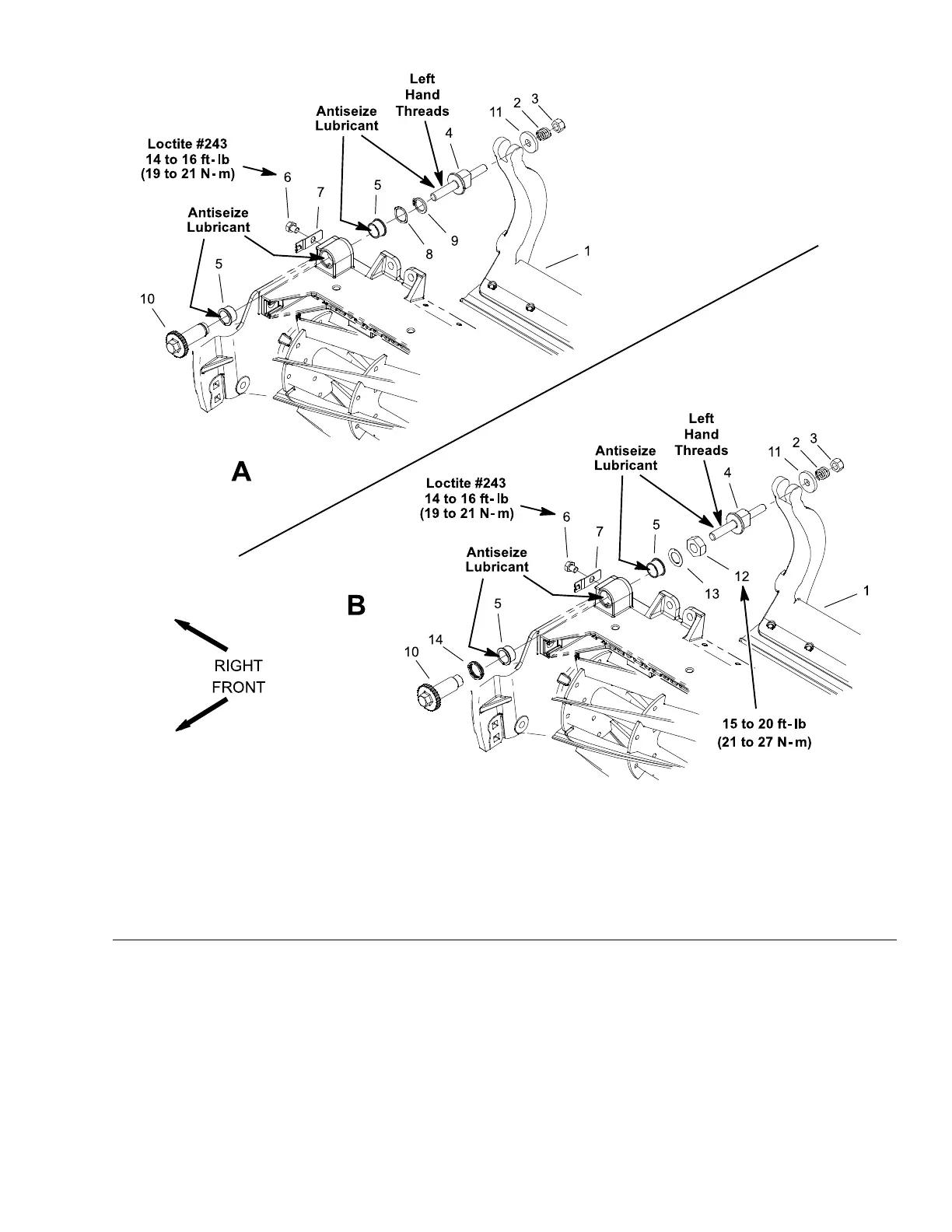

g214497

Figure338

1.Bedbarassembly

6.Capscrew

11.Washer

2.Compressionspring

7.Detent12.Locknut

3.Locknut8.Wavewasher13.Flatwasher

4.Bedbaradjusterscrew9.Retainingring14.Wavewasher

5.Flangebushing(2each)10.Bedbaradjustershaft

Note:ThebedbaradjustersystemforearlyproductionDPAcuttingunits(Figure

338A)usedaretainingringontheendofthebedbaradjustershaft.Current

productionDPAcuttingunits(Figure338B)includealocknutontheendofthe

bedbaradjustershaft.Upgradingtothecurrentproductionstyleadjustersis

recommendedusingHeavyDutyDPAKitp/n120-7230.Thebedbaradjuster

serviceproceduresforeitherstyleofadjustershaftisverysimilar.

Reelmaster

5410/5510/5610Series

Page9–27

CuttingUnit:ServiceandRepairs

15216SLRevC
