Service
and
Repairs
Note:
Refer
to
the
appropriate
engine
service
manual
for
engine
electrical
component
repair
information.
Hydraulic
Solenoid
V
alve
Coils

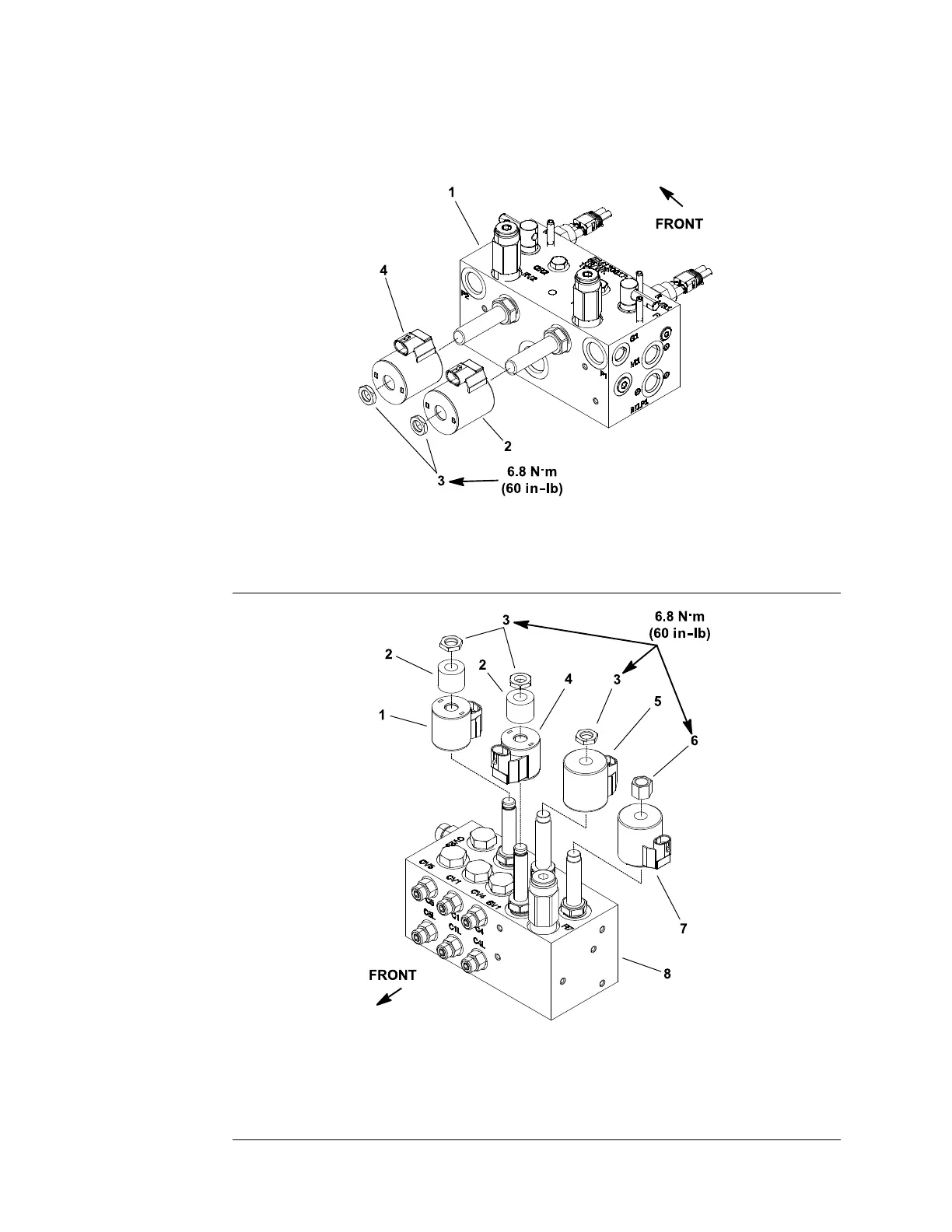

g214062
Figure
284
1.
Mow
control
manifold
3.
Nut
2.
Solenoid
coil
MSV1
4.
Solenoid
coil
MSV2
g214063
Figure
285
1.
Solenoid
coil
SV3
4.
Solenoid
coil
SV1
7.
Solenoid
coil
SVRV
2.
Coil
spacer
5.
Solenoid
coil
SV2
8.
Lift
control
manifold
3.
Nut
6.
Nut
Electrical
System:
Service
and
Repairs
Page
7–120
Reelmaster
®
5410/5510/5610
Series
15216SL
Rev
C
475
477
