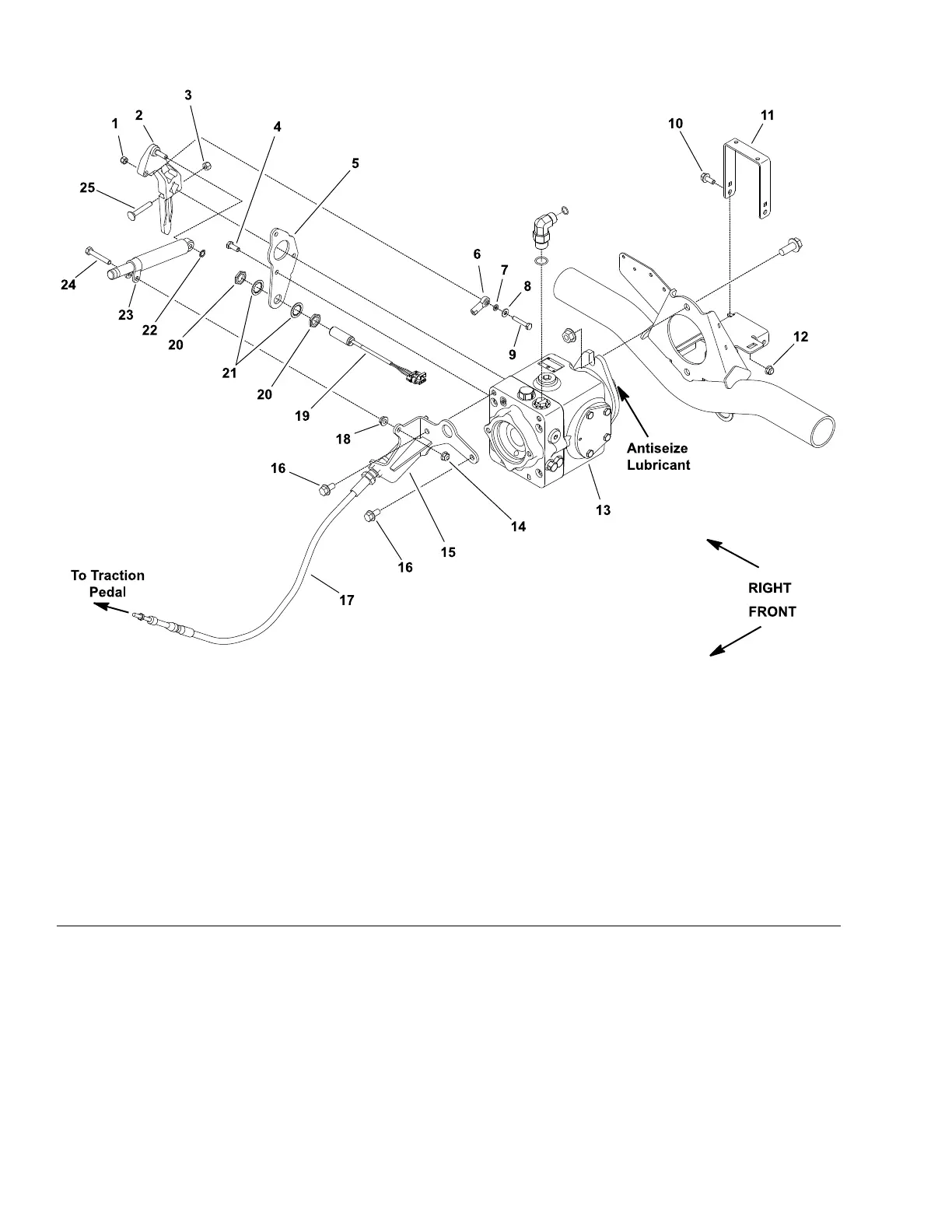

Piston(Traction)PumpControlAssembly

g213707

Figure145

1.Locknut

10.Flange-headscrew(2each)

19.Tractionneutralswitch

2.Pumplever

11.Guardhoop20.Jamnut(2each)

3.Locknut

12.Flangenut(2each)21.Lockwasher(2each)

4.Bolt(3each)13.Piston(traction)pump

22.Retainingring

5.Pumpplate14.Flangenut23.Leverdamper

6.Cablerodend

15.Tractioncablebracket24.Bolt

7.Flatwasher

16.Flange-headscrew(2each)25.Carriagescrew

8.Flatwasher17.Tractioncontrolcable

9.Bolt18.Flangenut

DisassemblingthePiston(Traction)PumpControlAssembly

1.Parkthemachineonalevelsurface,settheparkingbrake,lowerthecutting

units,andshutofftheengine,andremovethekeyfromthekeyswitch.

2.Removethecomponentsfromthetractionpumpcontrolassemblyas

necessary(Figure145andFigure146).

HydraulicSystem:ServiceandRepairs

Page6–156

Reelmaster

5410/5510/5610Series

15216SLRevC
