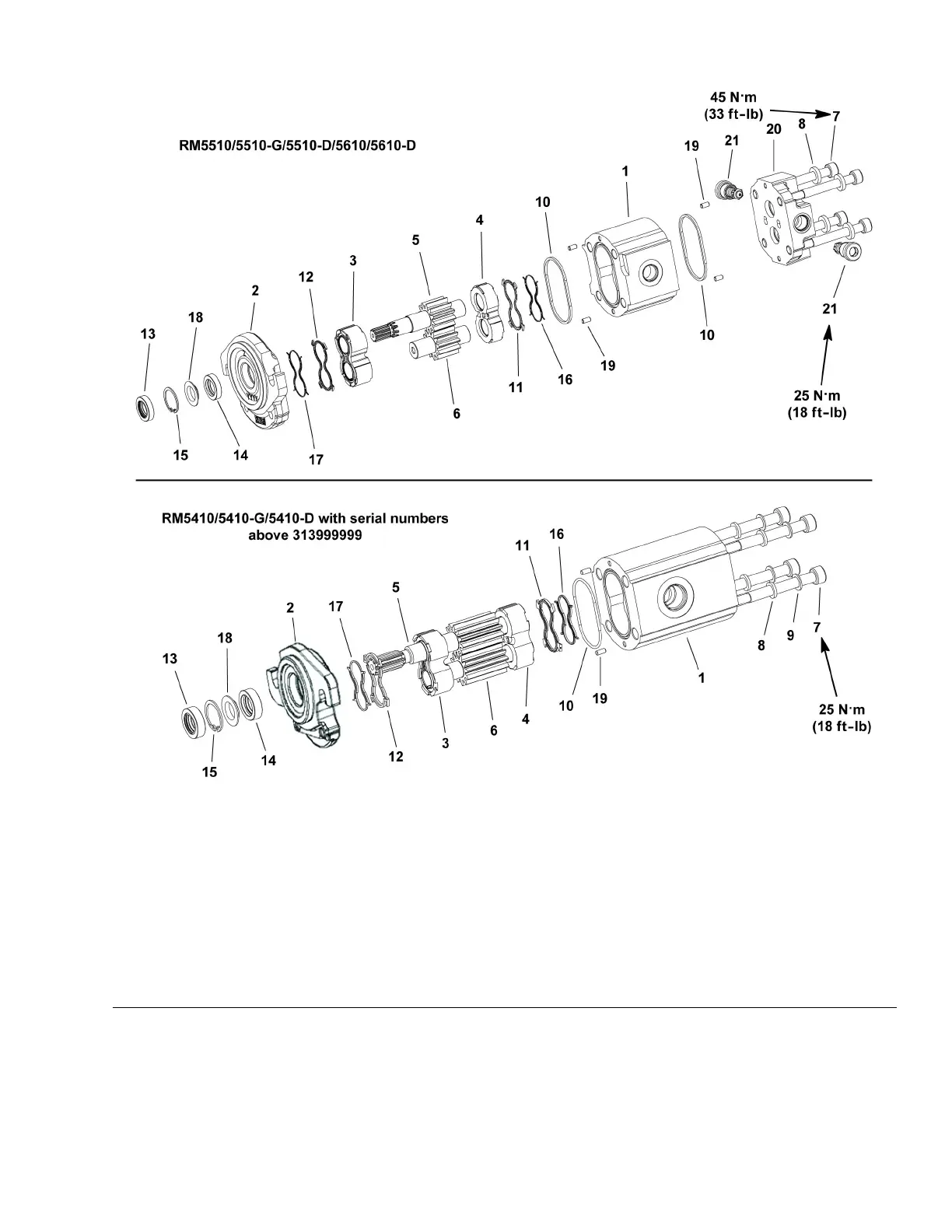

ServicingtheCuttingReelMotor(Casappa)

g230321

Figure173

1.Body

8.Flatwasher(4each)

15.Retainingring

2.Frontange9.Lockwasher(RM5410series)

16.Back-upseal

3.Frontwearplate

10.O-ring

17.Back-upseal

4.Rearwearplate11.Pressureseal18.Flangewasher

5.Drivegear12.Pressureseal19.Dowelpin

6.Idlergear13.Dustseal

20.Rearcover(RM5510/5610series)

7.Socket-headscrew(4each)14.Shaftseal21.Reliefcartridge(RM5510/5610

series)

Note:CasappacuttingreelmotorsareusedonReelmaster5410/5410-G/5410-D

machineswithserialnumbersabove313999999andalsoReelmaster

5510/5510-G/5510-D/5610/5610-Dmachines.

Reelmaster

5410/5510/5610Series

Page6–205

HydraulicSystem:ServiceandRepairs

15216SLRevC
