ServicingthePiston(Traction)Pump
g213710

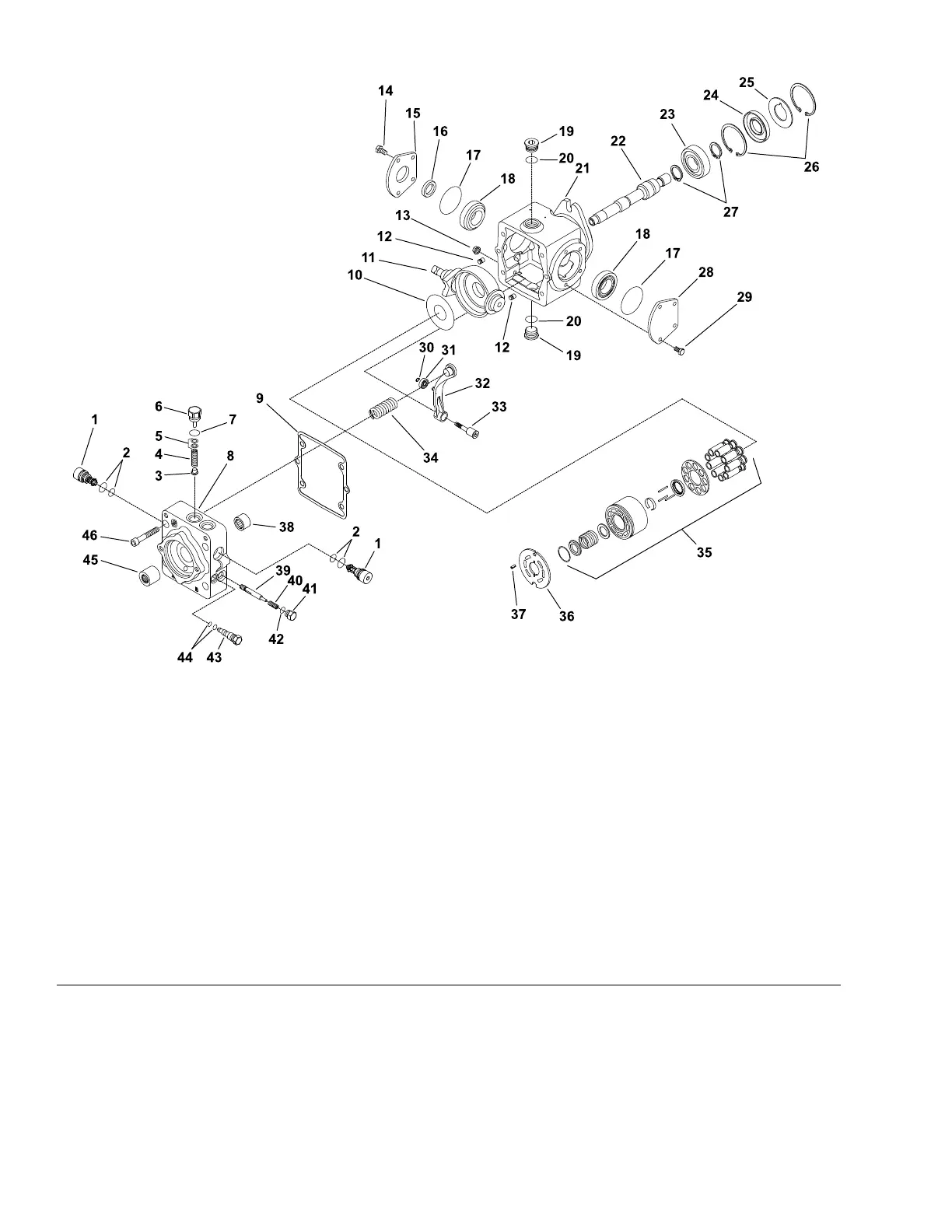

Figure153
1.Reliefvalve(2each)13.Sealnut
25.Backupwasher
37.Slottedpin
2.Sealkit(2each)14.Screw(4each)26.Retainingring(2each)
38.Needlebearing
3.Chargereliefpoppet
15.Trunnioncover
27.Retainingring(2each)39.Loopushingspool
4.Spring
16.Seal
28.Trunnioncover
40.Spring
5.Shimkit17.O-ring(2each)29.Screw(4each)
41.Plug
6.Chargereliefplug18.Bearing(2each)
30.Retainingring
42.O-ring
7.O-ring19.Plug(2each)
31.Bearing43.Bypassvalve
8.Endcap
20.O-ring(2each)
32.Neutralreturnarm
44.Sealkit
9.Endcapgasket21.Tractionpumphousing33.Neutralreturnpivot
45.Coupling
10.Thrustplate
22.Auxiliaryshaft34.Spring46.Screw(4each)
11.Swashplate
23.Ballbearing
35.Cylinderblockkit
12.Pin(2each)24.Seal
36.Valveplate
Note:Forthepiston(traction)pumprepairinformation;refertothe
Sauer-DanfossLPVClosedCircuitAxialPistonPumpsRepairInstructionsand
ServiceManualattheendofthischapter.
HydraulicSystem:ServiceandRepairs
Page6–168
Reelmaster
®
5410/5510/5610Series
15216SLRevC
