Piston(Traction)PumpFlowTest(UsingTesterwithFlowMeterand

PressureGauge)(5410/5410-G/5410-D/5510/5510-G/5510-D/5610)

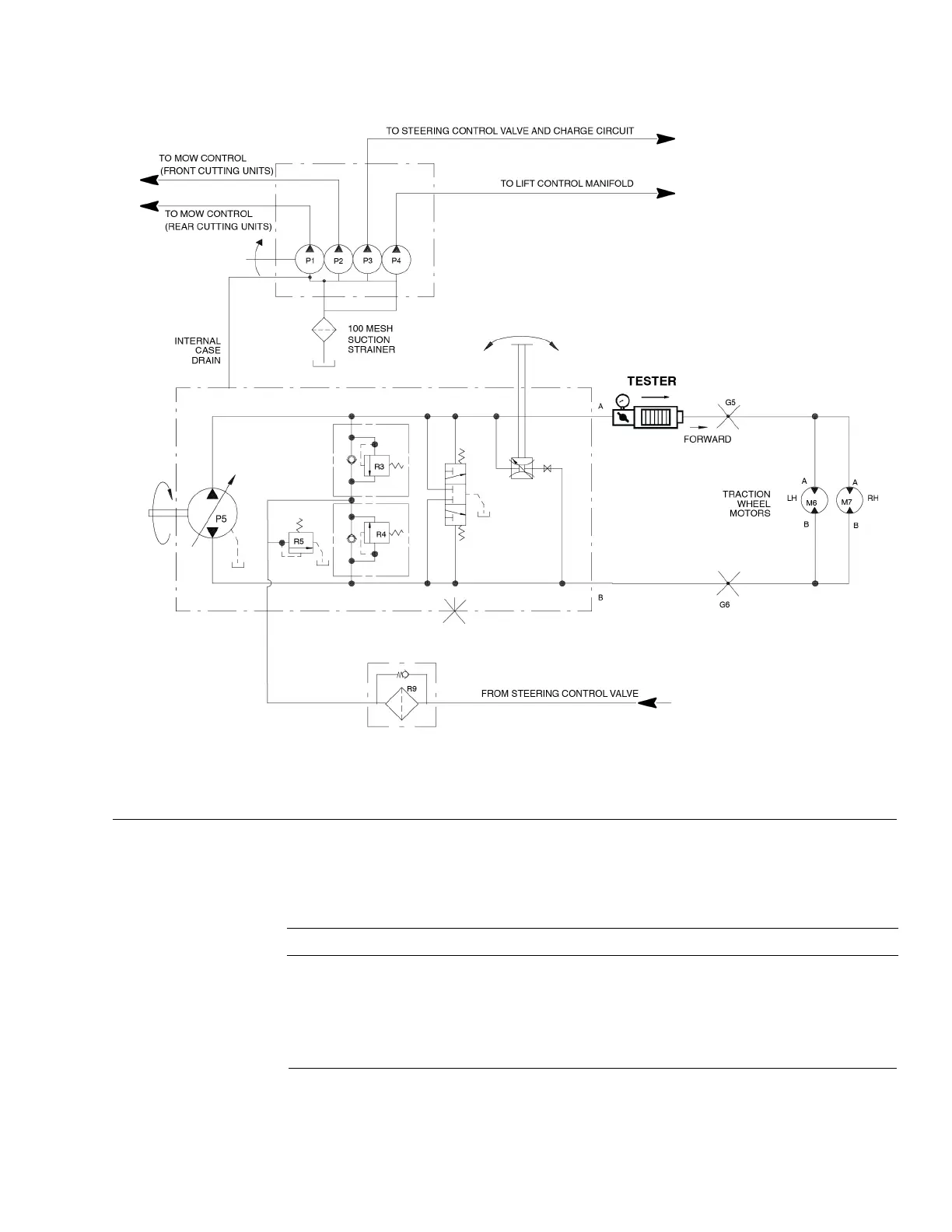

g230022

Figure91

TestProcedure

Thistestmeasurespiston(traction)pumpoutput(ow).Duringthistest,pump

loadiscreatedattheowmeterusingtheadjustableloadvalveonthetester.

IMPORTANT

TractioncircuitowforyourReelmasterisapproximately114

L/minute(30gallons/minute).Use150L/minute(40gallons/minute)

hydraulicTester#AT40002(pressureandow)forthistest;referto

SpecialTools(page6–44).

1.Parkmachineonalevelsurfacewiththecuttingunitsloweredandoff.Shut

offengine.Ensurethatthemowspeedlimiterisinthetransportpositionto

allowfullmovementoftractionpedal.

Reelmaster

5410/5510/5610Series

Page6–71

HydraulicSystem:TestingtheHydraulicSystem

15216SLRevC
