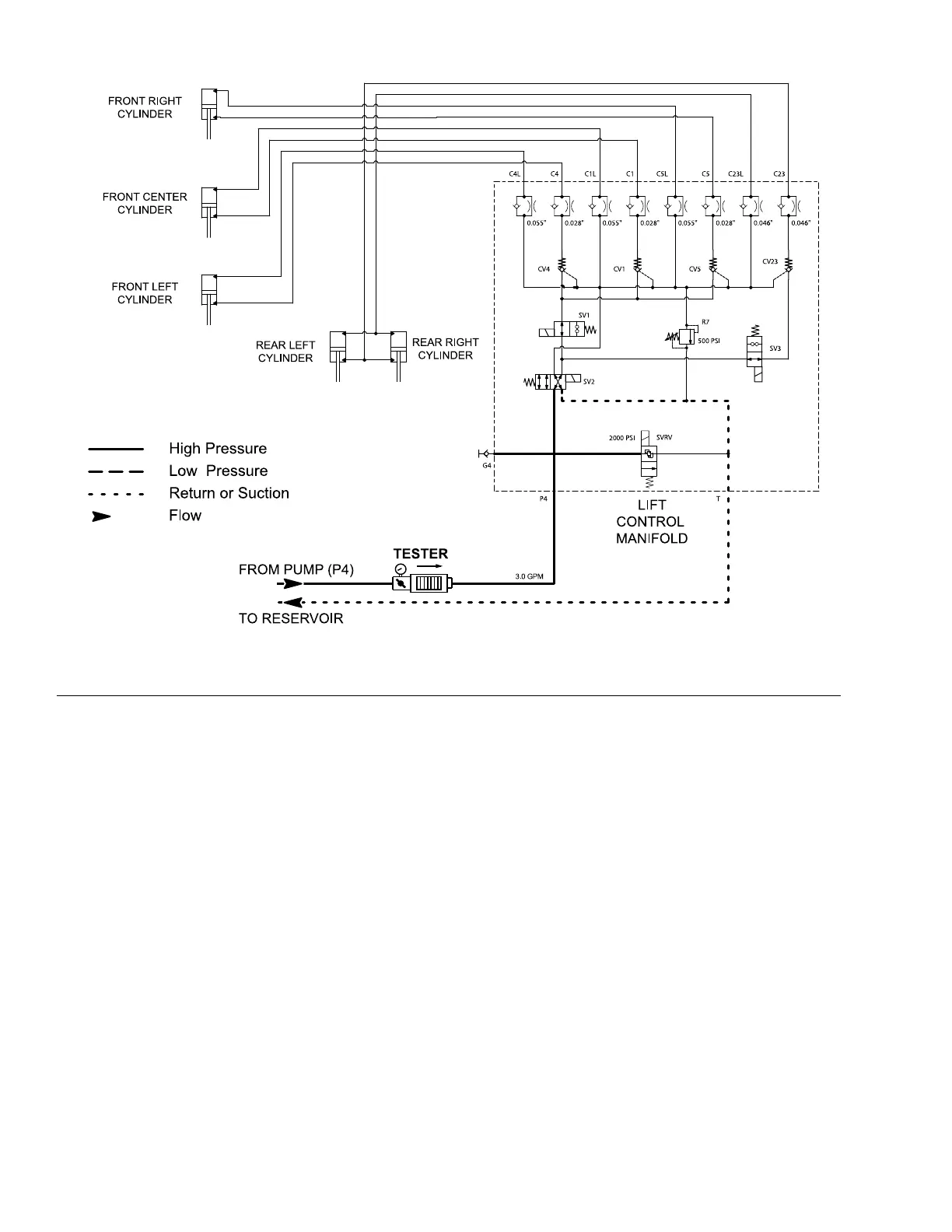

TestingtheLiftCircuit–GearPump(P4)Flow(5610-D)

g216145

Figure140

Thegearpump(P4)isdesignedtosatisfytheliftcylinderneeds(atfullspeed).

Thegearpump(P4)owtestcomparesuidowatNoLoadwithuidow

UnderLoad.Adropinowunderloadofmorethan15%indicatesthegearsand

wearplatesinthepumphaveworn.Continuedoperationwithawornpumpcan

generateexcessiveheatandcausedamagetothesealsandothercomponents

inthehydraulicsystem.

SpecialEquipmentRequired:Flowmeterwithpressuregaugethathasatleasta

16L/minute(5gallons/minute)capacity.

Note:Iftheowfromgearpump(P4)islow,theoperationofalltheliftcylinders

willbeaffected.

TestProcedure

1.Parkthemachineonalevelsurfacewiththereelengageswitchoff,lowerthe

cuttingunits,shutofftheengine,mowspeedlimiterisintheMOWposition,

andsettheparkingbrake.

HydraulicSystem:TestingtheHydraulicSystem
