TestingtheFuelSender
1.Parkthemachineonalevelsurface,lowerthecuttingunits,shutoffthe
engine,andsettheparkingbrake.Removethekeyfromkeyswitch.Raise
theoperatorseatandhood.
g229530

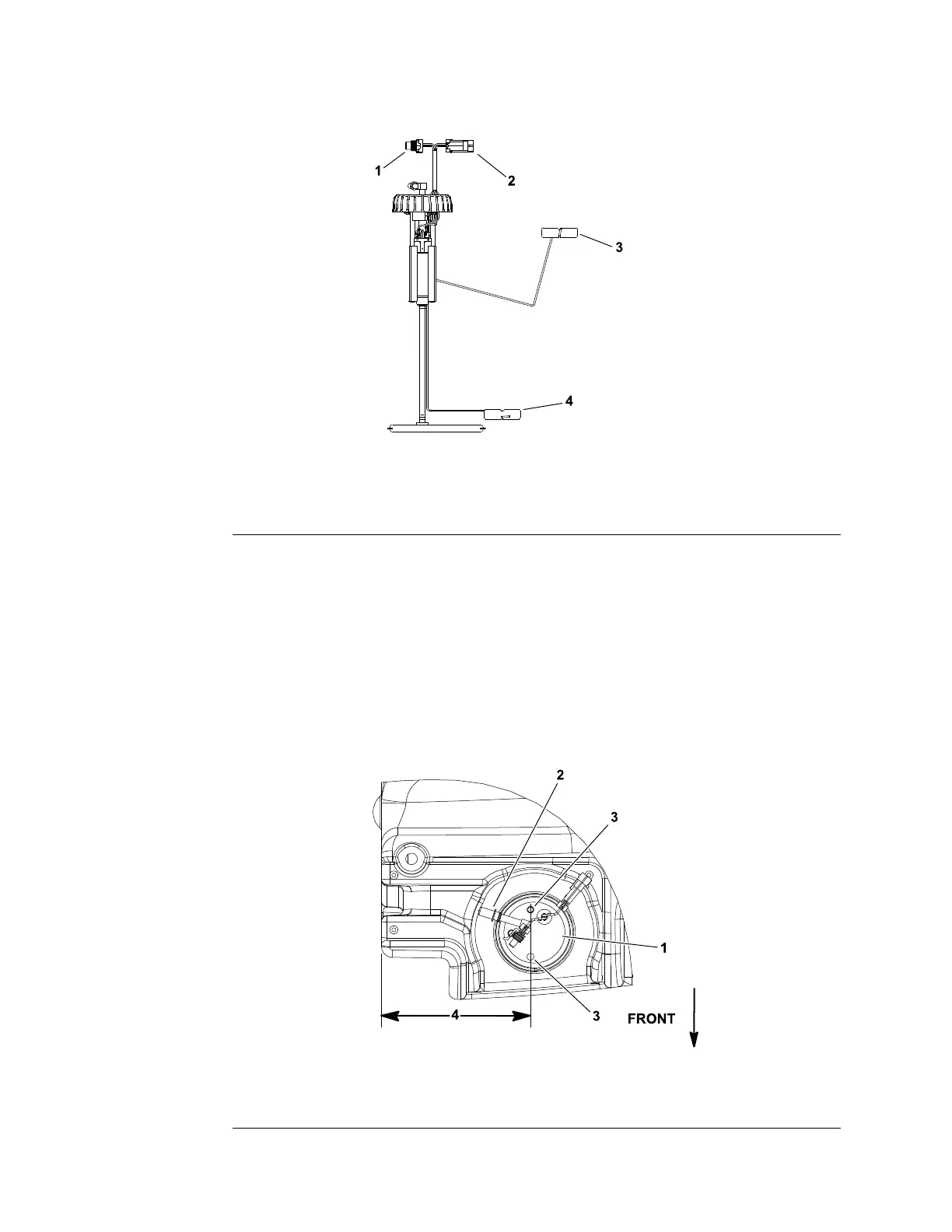

Figure274
1.Fuelsenderconnector3.Fullposition
2.Fuelpumpconnector4.Emptyposition
2.Carefullydisconnectbothmachinewireharnessconnectorsfromthefuel
pumpassembly.Thefuelpumpassemblyconnectorsforthefuelsenderand
fuelpumpareidentiedinFigure274.
3.TotestthecircuitwiringandInfoCenterfuelgauge,useajumperwireto
connectthe2wireharnessconnectorpinsandturnkeyswitchtoON/RUN.
InfoCenterfuelgaugeshouldindicatefullifcircuitwiringandInfoCenterfuel
gaugeareacceptable.TurnkeyswitchOFF.Proceedwithfuelsendertesting
ifcircuitwiringandfuelgaugearefunctioningcorrectly.
4.Carefullydisconnectfuelttingfromttingonthetopofthefuelpump
assembly.Fuelsupplyhosecanstayattachedtothefueltting.
g229529
Figure275
1.Fuelsender
2.Fuelsupplytting
3.Alignmenthole4.Parallel
ElectricalSystem:TestingtheElectricalComponents
Page7–106
Reelmaster
®
5410/5510/5610Series
15216SLRevC
