g252640

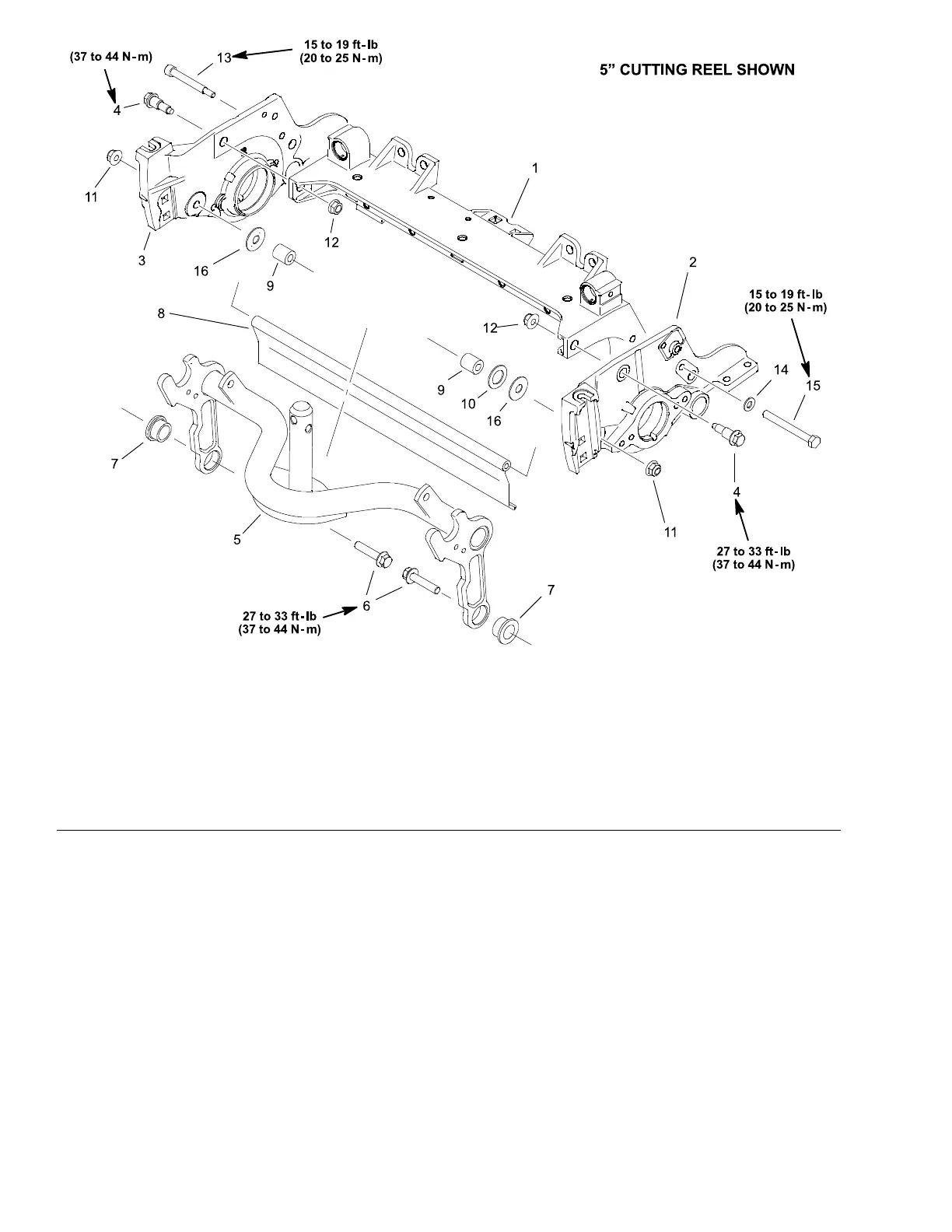

Figure343
1.Frame
7.Flangebushing(2each)13.Specialscrew
2.LHsideplate8.Reargrassshield14.Flatwasher
3.RHsideplate
9.Spacer(2each)15.Capscrew
4.Shoulderbolt(4or6each)10.Shim(0.060”–asrequired)16.Washer(2each)
5.Carrierframe11.Flangenut(2each)
6.Flangeheadscrew(2each)12.Flangenut(4each)
RemovingtheReelAssembly
1.Positionmachineonacleanandlevelsurface,lowercuttingunits,stop
engine,engageparkingbrakeandremovekeyfromtheignitionswitch.
2.Removethecuttingunitfromthemachineandplaceonaatworkarea.
3.IfcuttingunitisequippedwithacounterweightoraccessoryonLHsideplate,
removethecounterweightoraccessoryfromthecuttingunit.Removeand
discardO-ringfromcounterweight.RefertoServiceandRepairs(page
10–6)foradditionalbeltdrivengroomerinformation.RefertoServiceand
Repairs(page11–4)foradditionaluniversalgroomerinformation.Referto
RearRollerBrush–Optional(cuttingunitswithaluminumsideplates)(page
9–57)foradditionalrearrollerbrushinformation.
4.Removethebedbarassembly;refertoRemovingtheBedbarAssembly
(page9–20).
CuttingUnit:ServiceandRepairs
Page9–36
Reelmaster
®
5410/5510/5610Series
15216SLRevC
