Toro 03606A Service Manual

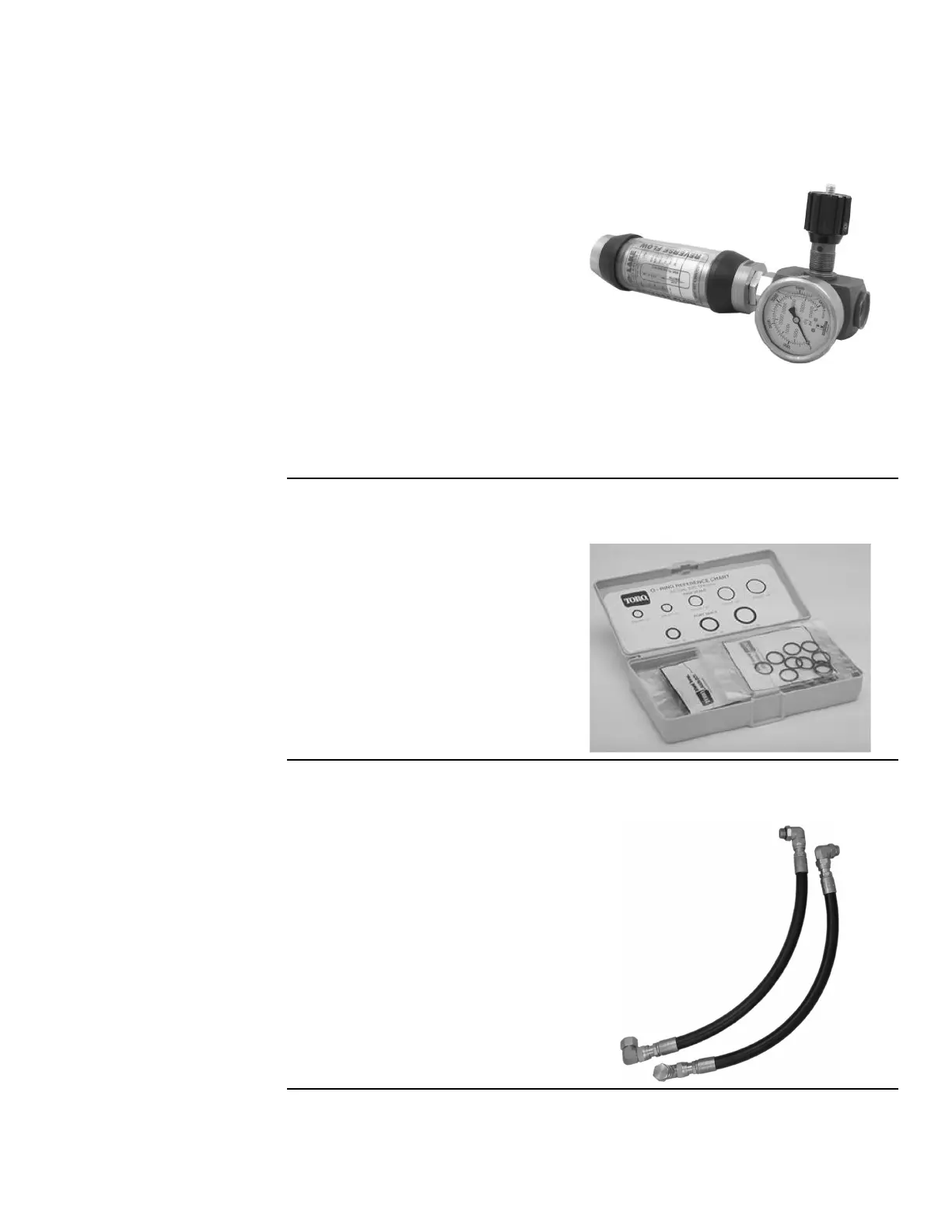

150LPM(40GPM)HydraulicTester
ToroPartNo.AT40002
Usethistestertotestthehydrauliccircuits
andcomponentsforowandpressure
capacities.Thetesterowmeasurement
maximumis151LPM(40GPM).This
testerincludesthefollowing:
LoadValve–Turnthevalvetorestrictthe
owtocreateasimulatedworkingloadin
thecircuit.
PressureGauge–Aglycerinelled
pressuregauge0to34,500kPa(0to
5,000psi)toprovideoperatingcircuit
pressure.
FlowMeter–Thismetermeasuresthe
actualuidowintheoperatingcircuit
withagaugeratedat20to150LPM(4
to40GPM).
Note:Thistesterdoesnotinclude
anyhydraulichosesorttings;refer
toHydraulicHoseKitT oroPartNo.
TOR6007andHydraulicT estFittingKit
TorPartNo.TOR4079.
HydraulicO-RingKit
ToroPartNo.117-2727
ThiskitincludesO-ringsinavariety
ofsizesforthefacesealandportseal
hydraulicconnections.Tohelppreventa
hydraulicleak,replacetheO-ringswhen
youopenthehydraulicconnection.
HydraulicHoseKit
ToroPartNo.TOR6007
Thiskitincludesthettingsandhosesthat
areusedtoconnecthighowhydraulic
lterkit(TOR6011)tothemachine
hydraulictractionsystemcomponents.
Reelmaster
®
5410/5510/5610Series
Page2–13
SpecicationsandMaintenance:SpecialTools
15216SLRevC
