RemovingtheReelAssembly(continued)
2.Removethecuttingunitfromthemachineandplaceonaatworksurface.
3.IfcuttingunitisequippedwithacounterweightoraccessoryonLHsideplate,
removethecounterweightoraccessoryfromthecuttingunit.Removeand
discardO-ringfromcounterweight.RefertoServiceandRepairs(page
10–6)foradditionalbeltdrivengroomerinformation.RefertoServiceand
Repairs(page10–6)foradditionaluniversalgroomerinformation.Referto
RearRollerBrush–Optional(cuttingunitswithpaintedsideplates)(page
9–51)foradditionalrearrollerbrushinformation.
4.Removethebedbar;refertoRemovingtheBedbarAssembly(page9–20).
5.Removethefrontroller;refertoRemovingtheFrontRoller(page9–43).
6.Removetherearroller;refertoRemovingtheRearRoller(page9–45).
g230064

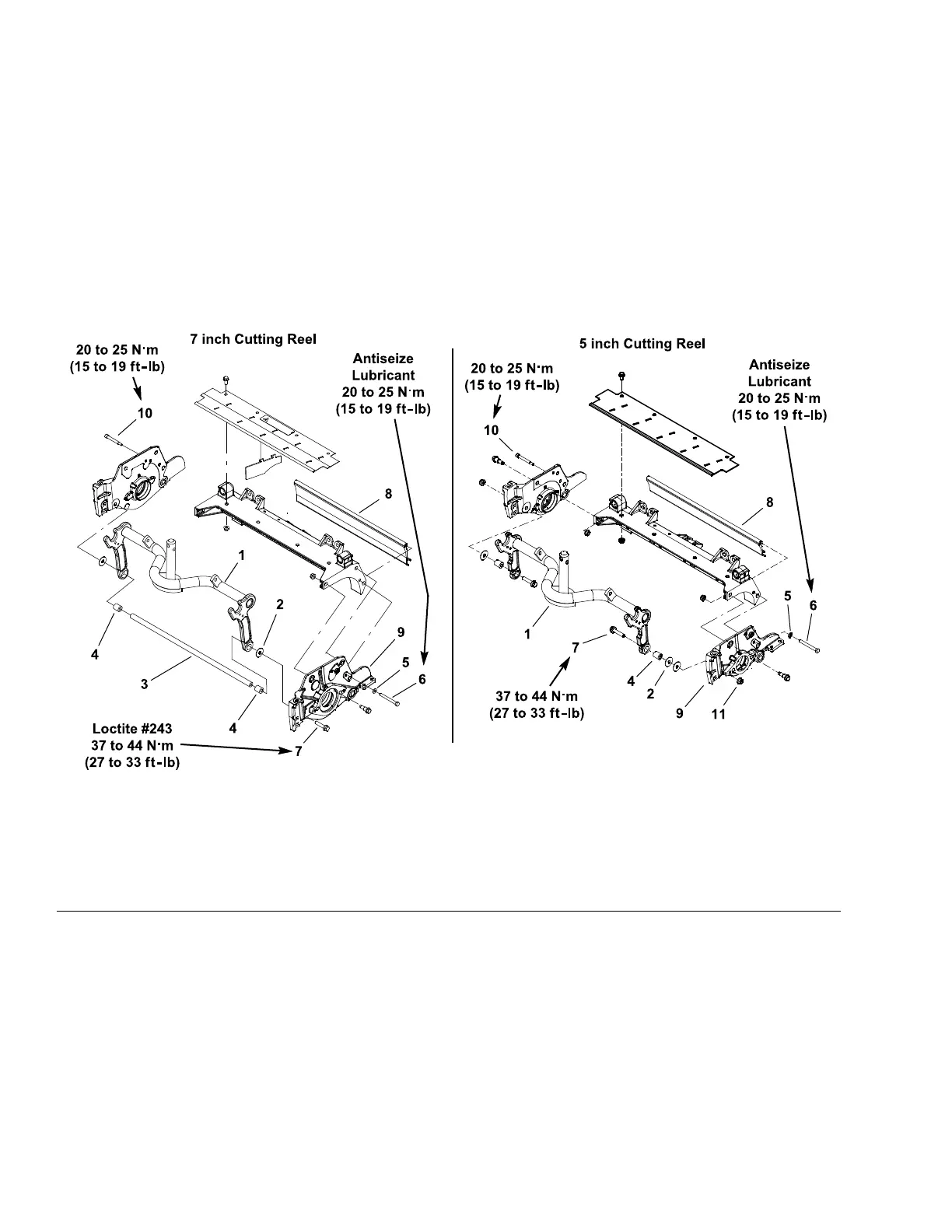

Figure340
1.Carrierframe
5.Flatwasher9.LHsideplate
2.Shim(ifequipped)6.Capscrew10.Socket-headscrew
3.Supporttube
7.Flange-headscrew11.Flangenut
4.Framespacer8.Reargrassshield
7.Removetheboltandatwasherthatsecurethereargrassshieldtothe
LHsideplate.
8.Removeangeheadscrewthatsecuressupporttube,framespacerand
carrierframetoLHsideplate
Note:Thereelbearingsandsealsarepresstonthecuttingreelshaftand
shouldremainonthereelwhenremovingtheLHsideplate.
Note:Sideplateson5”cuttingunitsattachtocuttingunitframewithtwo(2)
shoulderboltsandangenuts.Sideplateson7”cuttingunitsusethree
(3)shoulderboltsandangenuts.
CuttingUnit:ServiceandRepairs
Page9–30
Reelmaster
®
5410/5510/5610Series
15216SLRevC
