Toro 03606A Service Manual

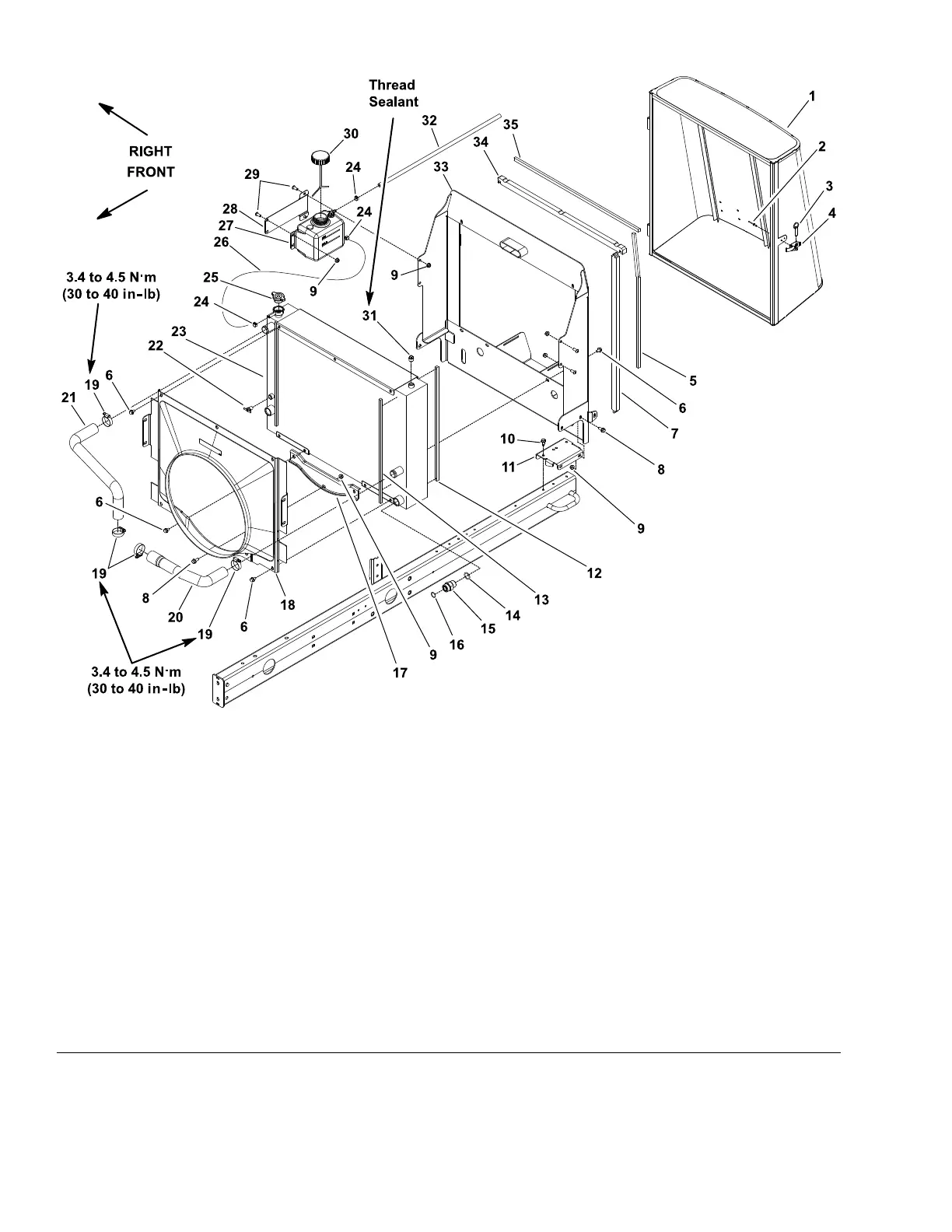

Radiator
g188098
Figure33
1.Screen
10.Washer-headscrew
(6each)
19.Hoseclamp(4each)
28.Reservoirbracket
2.Poprivet(2each)11.Mountingbracket(2
each)
20.Lowerradiatorhose
29.Button-headscrew(5
each)
3.Detentballpin
12.Foamseal(2each)
21.Upperradiatorhose30.Reservoircap
4.Drawlatch
13.Foamseal(2each)
22.Draincock31.Pipeplug
5.Foamseal(2each)14.O-ring(2each)
23.Radiatorandoilcooler
assembly
32.Reservoirhose
6.Flange-headscrew
(14each)
15.Straighthydraulictting
(2each)
24.Hoseclamp(3each)33.Radiatorframe
7.Foamseal(2each)16.O-ring(2each)
25.Radiatorcap
34.Foamseal(2each)
8.Flange-headscrew
(5each)
17.Shroudcap
26.Reservoirhose35.Foamseal
9.Flangenut(10each)
18.Fanshroud
27.Coolantreservoir
assembly
Note:TheradiatoronyourReelmasteriscombinedwiththehydraulicoilcooler.
YanmarDieselEngine:ServiceandRepairs
Page4–18
Reelmaster
®
5410/5510/5610Series
15216SLRevC
