Technical data
44 OM 100.EPW400.202002.en

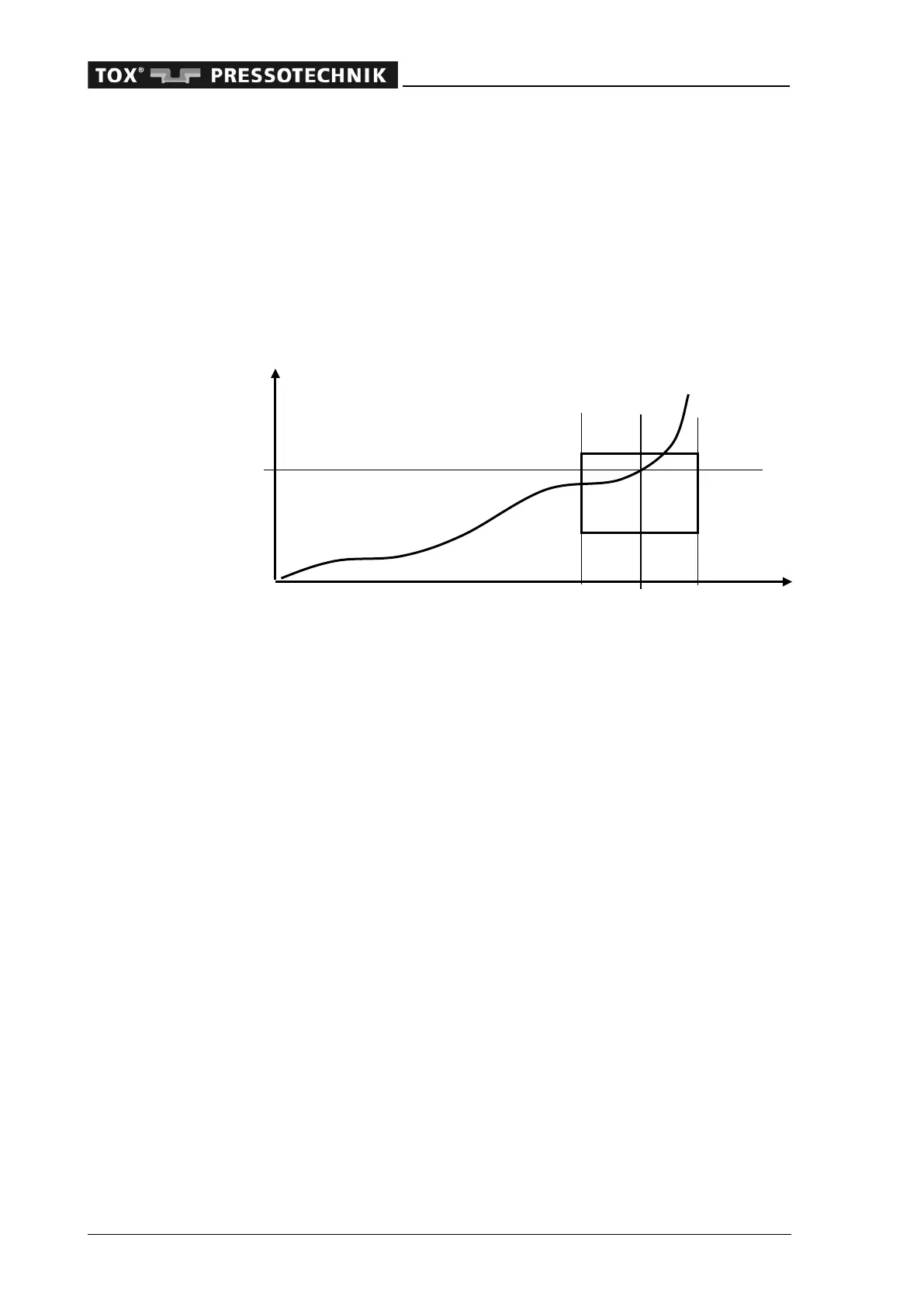

The actual distance [mm] of the respective window is determined as follows:
The actual distance [mm] is exactly in the centre of the window in X-direction.
Example:
The window extends from 8.00 mm to 11.60 mm => actual distance [mm] = 9.80 mm.
The actual force [kN] is the point where the measurement curve intersects the actual
distance [mm].
Actual force
[mm]
Actual distance [mm]
8.00 mm
11.60
Distance
[mm]
Force [kN]
