2.SETTING MODES
5
2. SETTING MODES

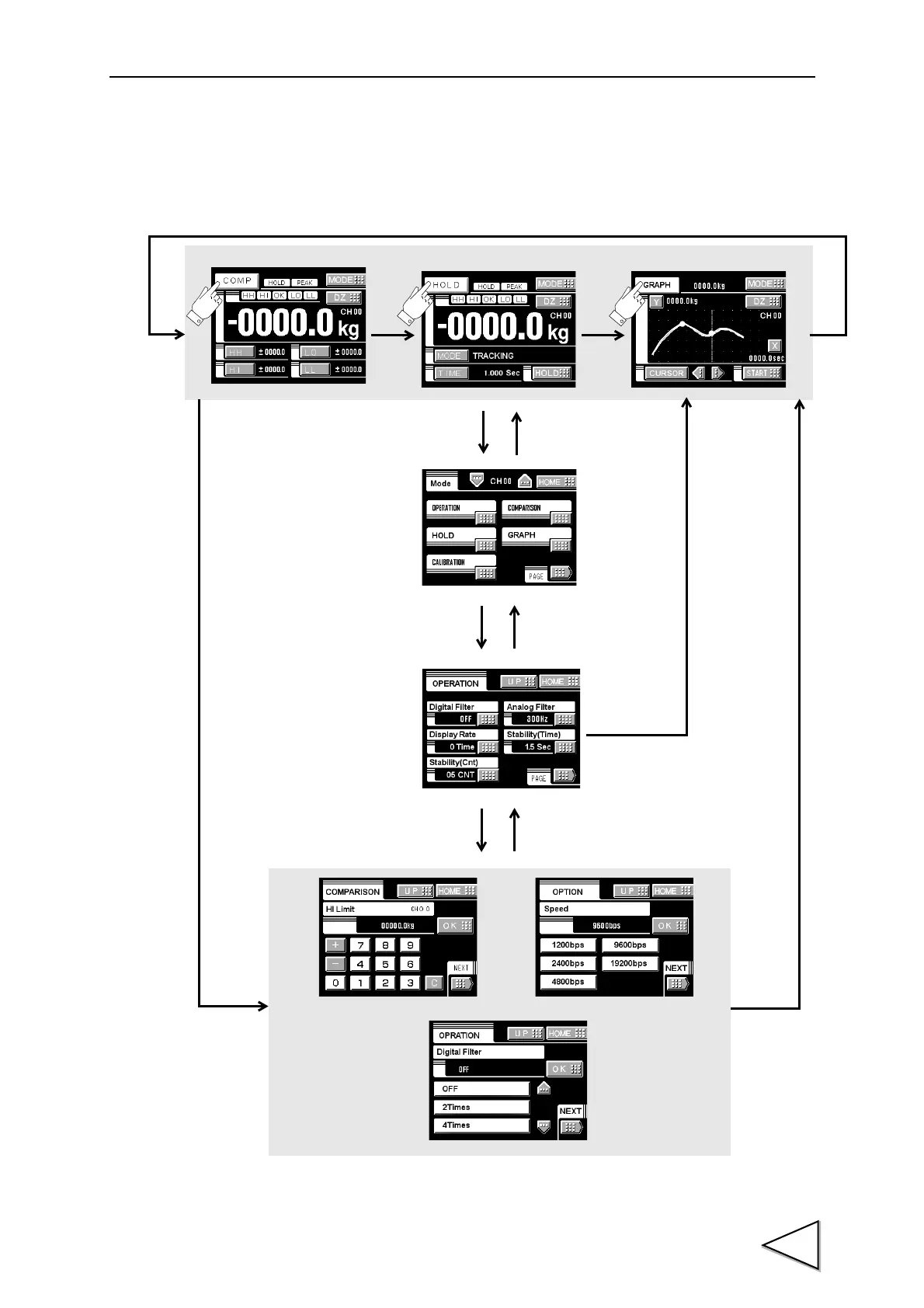

2-1. F371 Screen
Configuration
HOME
MODE
UP
Mode keys
Setting keys
HOME
HOME
Set value entry from
the ordinary display screen
UP
[Ordinary display screen]
[Mode selection scr
een]
[Set value selection screen]
[Set value entry screen]
With the NEXT key on the set value entr
y screen, the next set value entry scree
n appears.
