3. CONNECTION

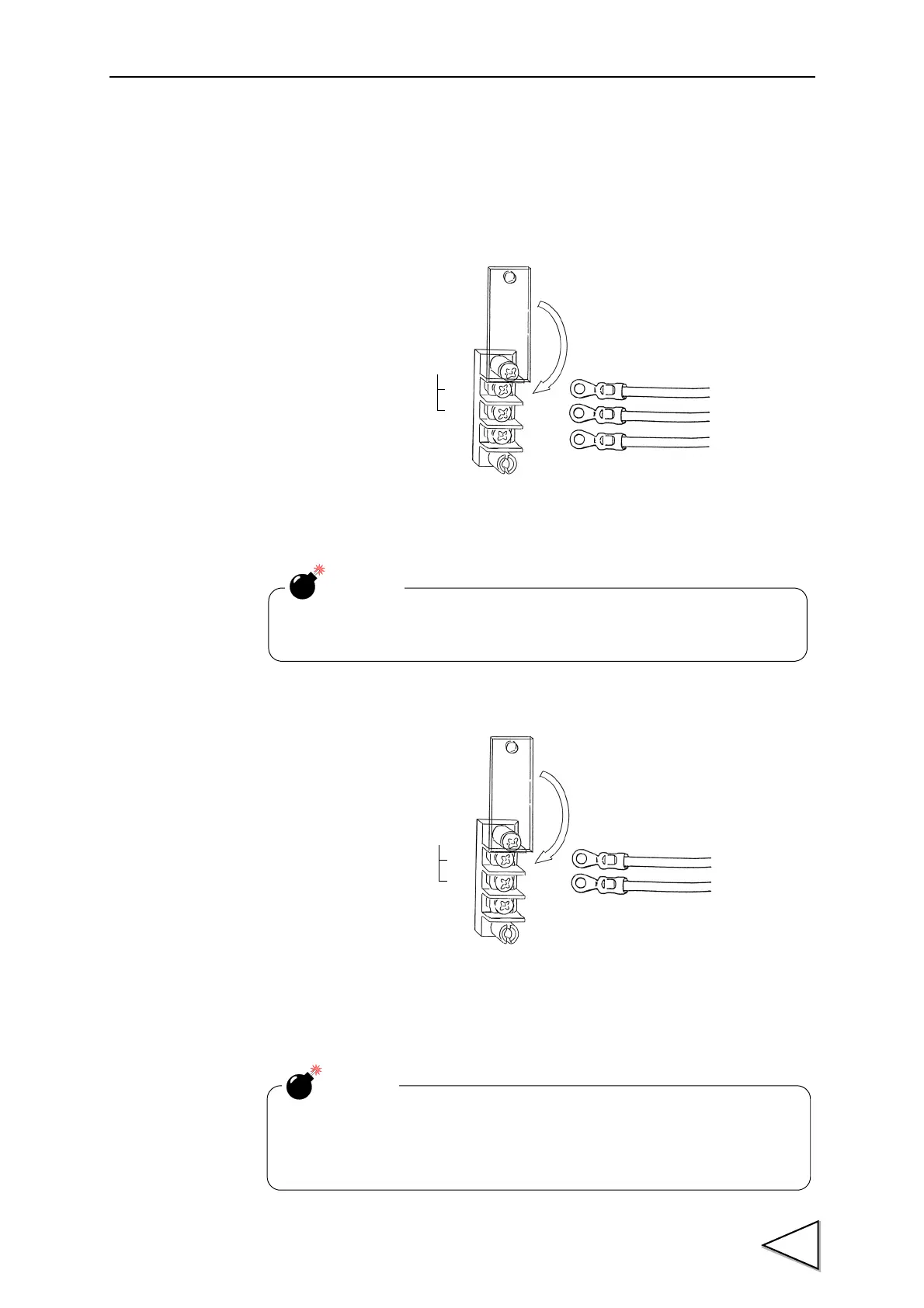

3-1. Power Input Connection
AC spec.
Connect AC power code. The input voltage is 100V-240V AC.
The frequency is 50/60Hz.
DC spec.(Depending on the request at the time of order)
Connect the positive (+) side of the power source to the red screw side of the terminal
block on the back of the F371, and its negative (-) side to the black screw side. The input
voltage is 12V-24V DC.
（ Black ）
（
White)
（ Green)
AC
IN
L
N
F.G.
CAUTION
Pay close attention to the wring in case of power on.
（ Red ）
（
Black)
DC IN
＋
－
F.G.
CAUTION
Be aware that the voltage drops depending on the wire thickness
and length. Also, never input an AC power source. Doing so will
cause a failure.
