Unipulse F371 User Manual

7.HOLD FUNCTIONS
56
7-5. Hold Operation

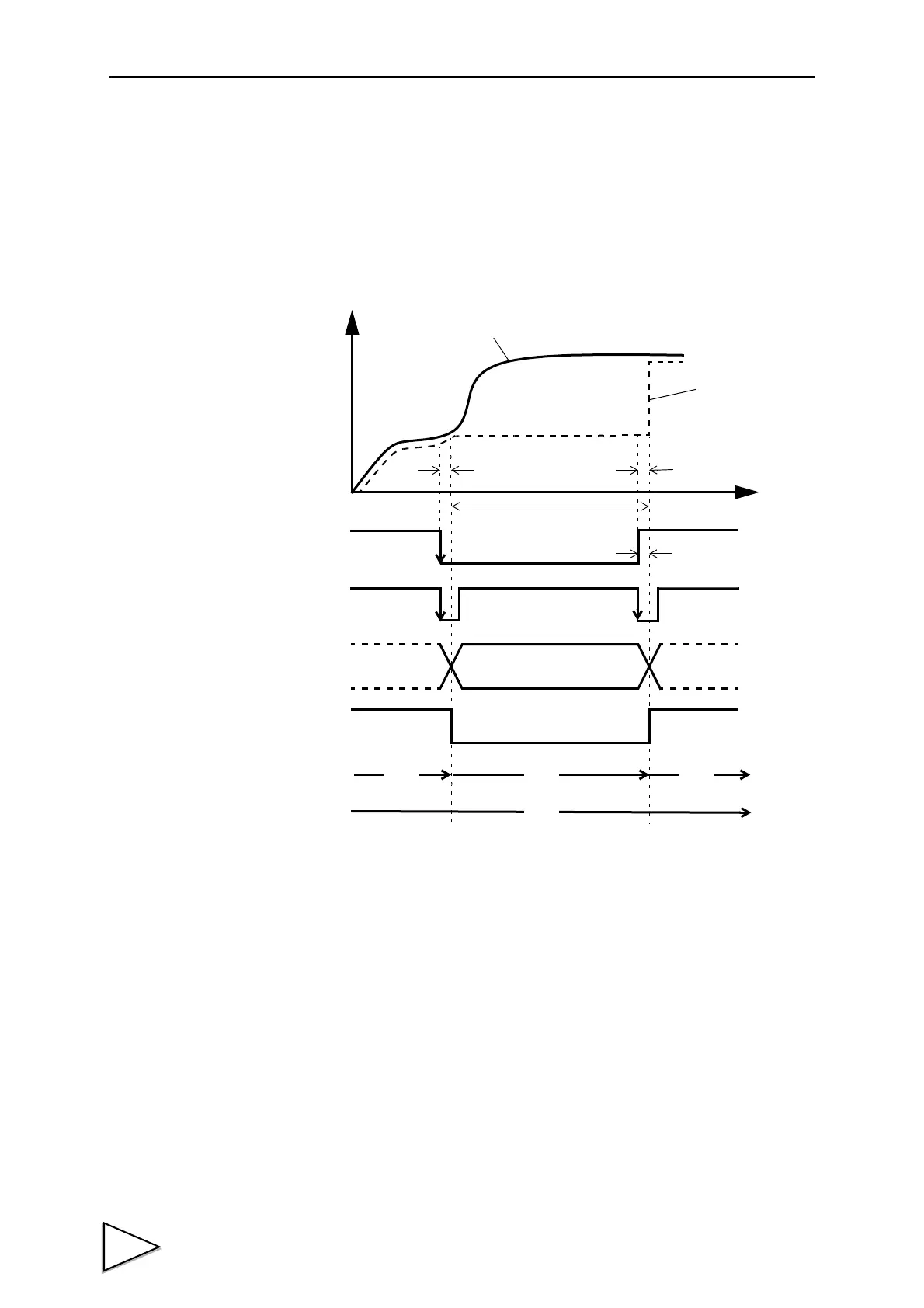

7-5-1. Sample Hold
When the T/H signal is inputted, a desired point is held, and the H/E output is turned on.
Hold of the value continues as long as the T/H signal is on.
t1： A delay time between the instant when the T/H signal is inputted and the instant
when the indicated value is held
1.0ms (max.)
t2：A delay time between the instant when the T/H signal is released and the instant
when the indicated value returns to tracking
1.0ms (max.)
t3：A minimum reset signal width required for releasing the hold
1.0ms (min.)
Indicated Value
t2
t3
t1
Sensor Input Value
Detection・Hold Period
Decide
t
＋
T/H
HI-LO Limit
Judging Output
H/E
OFF
ON
OFF
ON
OFF
ON
HOLD
OFF
ON
Button
HOLD
Status Display
Status Display
ONBlink Blink
OFF
PEAK
