Vaisala FS11P - Figure 60 End Plug Removal (Shown for Transmitter); Figure 61 Module Retainer Removal (Shown for Transmitter)

Chapter 6 _______________________________________________________________ Maintenance
VAISALA _______________________________________________________________________ 199
4. Open transmitter/receiver head.
- Remove end plug, use wrench size 13 mm.

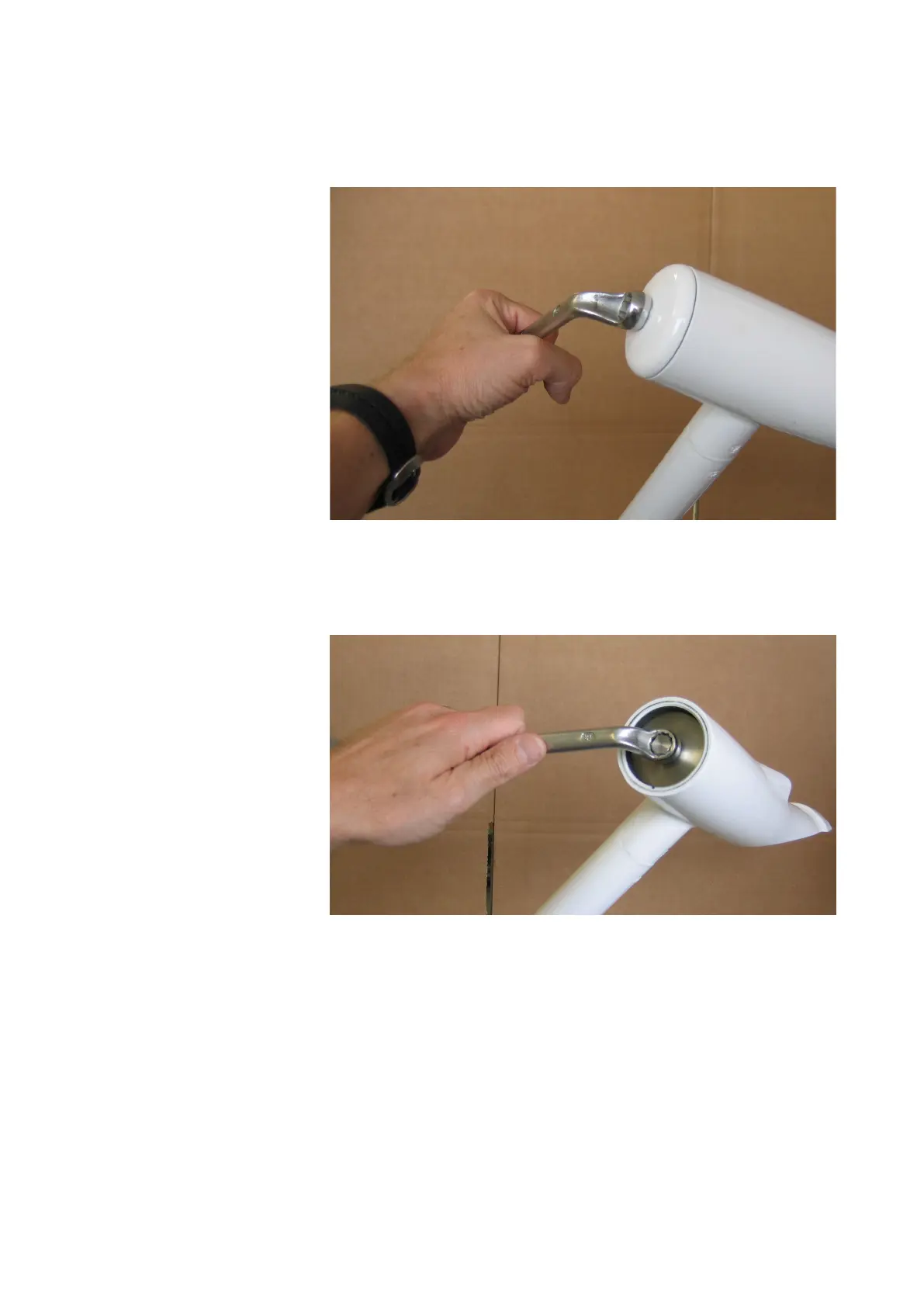

Figure 60 End Plug Removal (Shown for Transmitter)
5. Unlock transmitter/receiver module.
- Remove corresponding module retainer.
Figure 61 Module Retainer Removal (Shown for
Transmitter)
6. Screw the opening tool (Vaisala item DRW011133) into the rear
plate of the transmitter/receiver module as shown in Figure 63 on
page 200.
