Chapter 3 ________________________________________________________________ Installation
VAISALA ________________________________________________________________________ 39
4. If an aluminum mast is installed, mount the mast pedestal on the
base plate by first removing the three preinstalled M16 set screws
(see Figure 11 below). Attach the supplied 12-mm guard plug into
the plate and use the four mounting screws supplied with the
Foundation Kit FS211296 to mount the pedestal.
0201-062

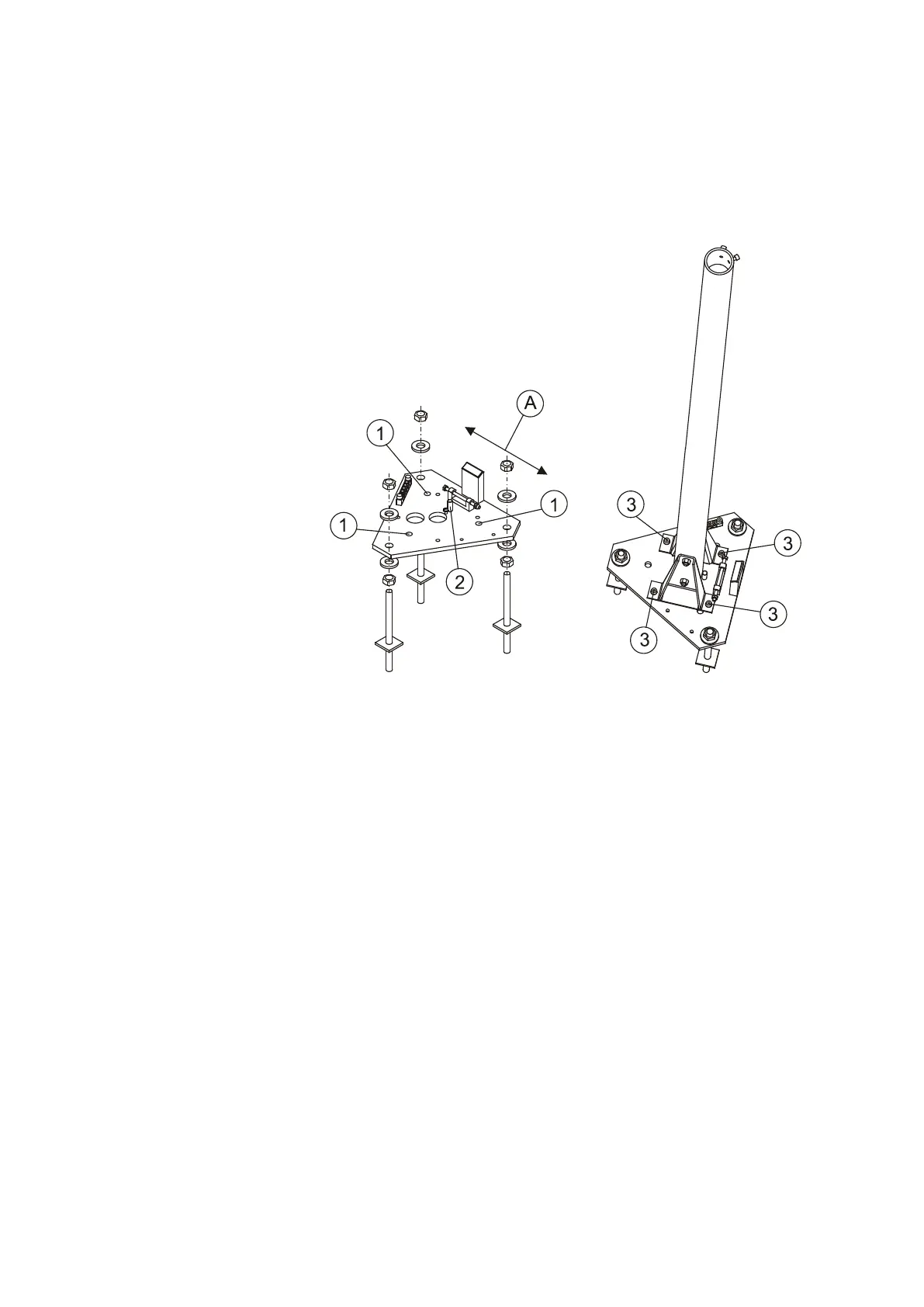

Figure 11 Mounting FS11P Aluminum Mast Using
FS211296 Foundation Kit
The following numbers and letter refer to Figure 11 above:
Background luminance sensor viewing direction (normally
North in the Northern hemisphere and South in the Southern
hemisphere)
5. Mount the rear panel of the radiation shield to the pole mast with
the two clamps supplied; see Figure 14 on page 41. See that the
anti-sliding gaskets are correctly set between the clamps and the
mast. Screw the bolts from the inside and secure the bolts with nuts
from the outside.
