10. Connect the measurement unit cable plug to the connector at the
bottom of FSM102 (see Figure 16 below).
0201-068

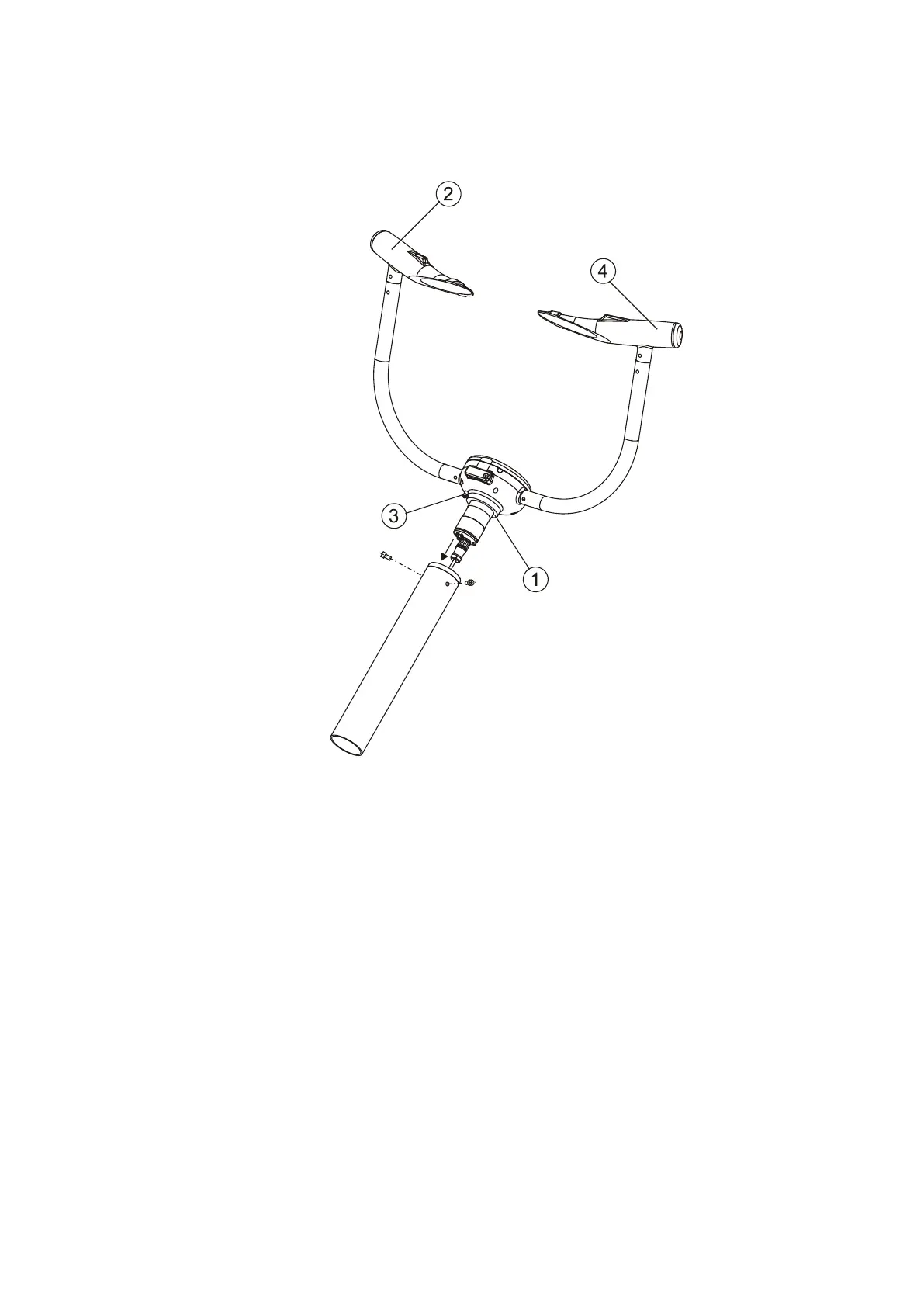

Figure 16 Connecting Measurement Unit
The following numbers refer to Figure 16 above:
1
=
Measurement unit end gasket
2
=
Transmitter
3
=
Surface temperature probe
4
=
Receiver
11. Insert the measurement unit into the pole mast and lock it in the
correct orientation as discussed in section Location and Orientation
on page 24 with two 8-mm bolts (see Figure 16 above). The
transmitter and receiver heads can be identified by first locating the
surface temperature probe, which is closer to the transmitter.
12. Erect the mast.
