➥ The quickhitch is fully open if check pin K (red) is extended.
5. Release the stabilizer-blade lever.
6. Retract the bucket hydraulic cylinder.
7. Set down the attachment.
8. Raise the boom.
9. Release foot-operated pushbutton switch 3.
10.Pull and hold stabilizer-blade lever 8 as far as it will go.
➥ The quickhitch closes.
11.Release the stabilizer-blade lever.
12.Switch off switch 42.
➥ The buzzer is silent.

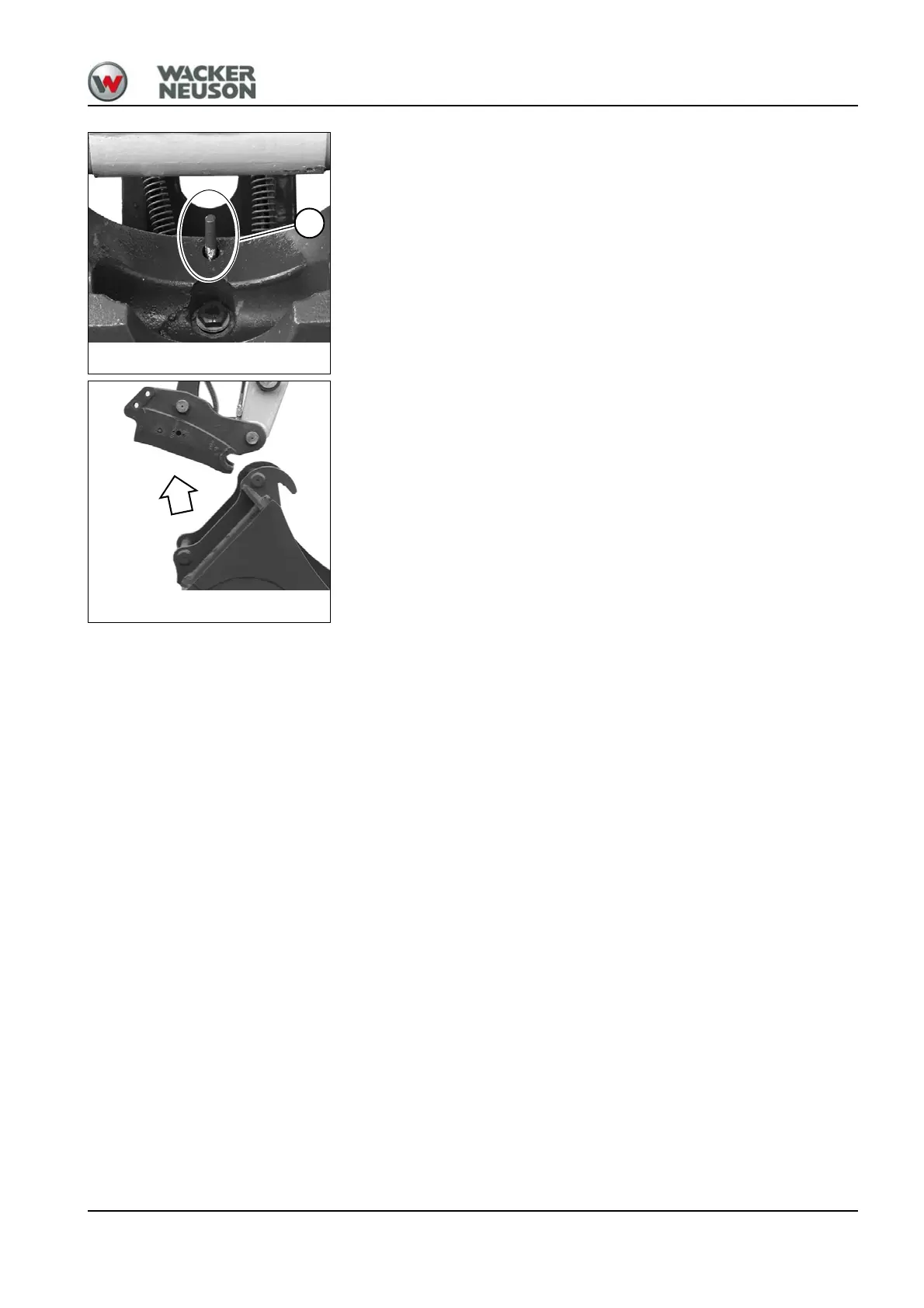

Fig. 178
