Wacker Neuson EZ38 - Page 44

3-16 OM EZ38 us 1.1 * ez38e300.fm
3

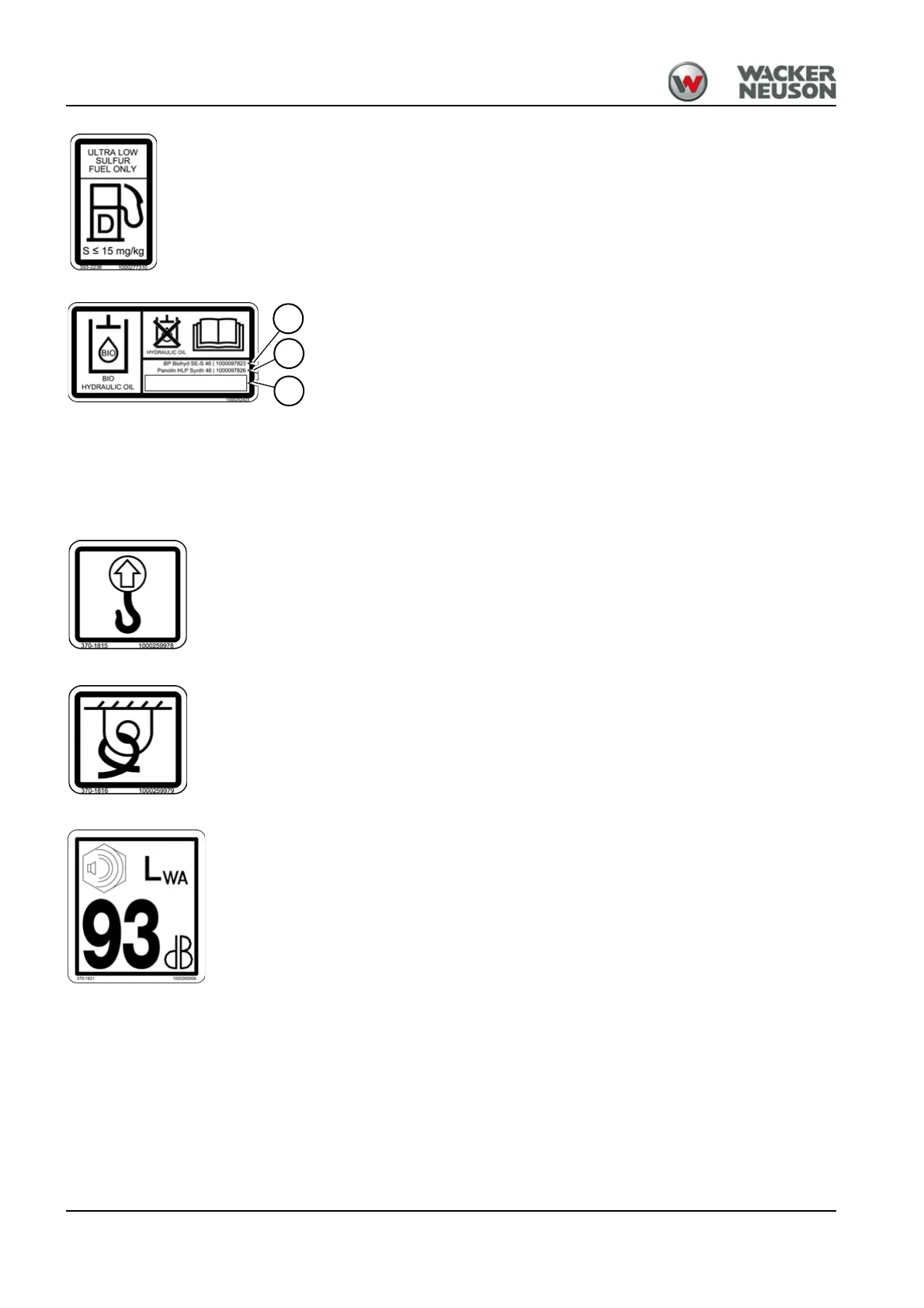

Meaning
Only refuel with Diesel fuel with a sulphur content of < 15 mg/kg (=
0.0015 %).
Position
Next to the fuel tank filler inlet.
Meaning (option)
The tank contains biodegradable hydraulic oil.
This label is notched on the side depending on the biodegradable
hydraulic oil used.
1. BP Biohyd SE-S 46
2. Panolin HLP Synth 46
3. Other biodegradable hydraulic oil
Position
Next to the filler inlet of the hydraulic oil reservoir.
Meaning
Indicates the lifting points of the machine.
Position
On either side of the stabilizer blade, and on either side of the boom.
Meaning
Indicates the tie-down points for tying down the machine.
Position
On either side of the stabilizer blade, and on either side of the travel gear
Meaning
Indication of sound power level produced by the machine.
L
Wa
= sound power level.
Position
At the front on the chassis.
Fig. 30
Fig. 31
1
2
3
Fig. 32
Fig. 33
Fig. 34
