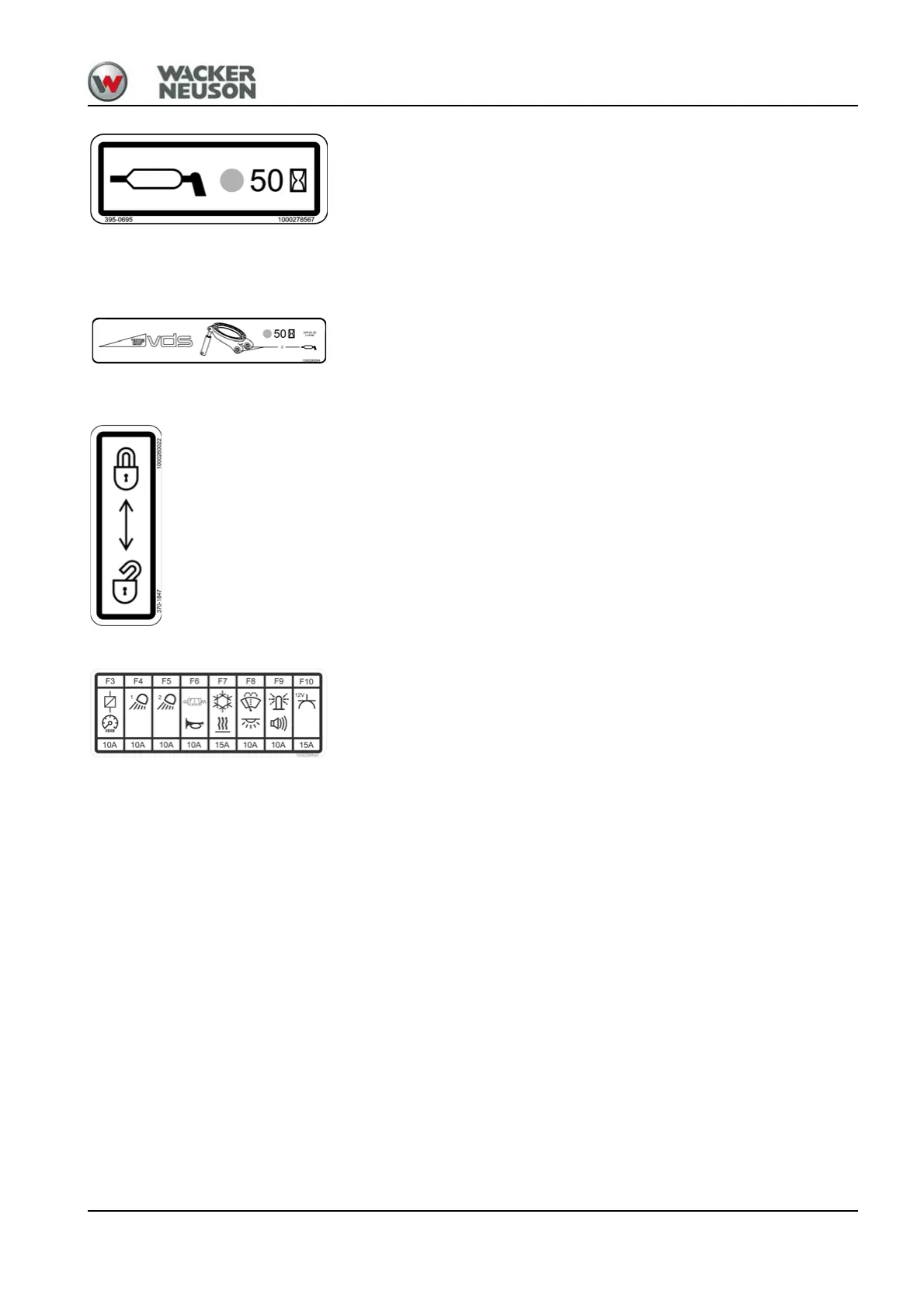

Meaning
Indicates the interval at a which lubrication point must be lubricated.
Green grease nipples mean: lubrication every 50 hours or once a week.
Blue grease nipples mean: lubrication every 10 hours or daily.
Position
On the upper carriage at the front left in driving direction.
Meaning (option)
Indicates the lubrication points of the VDS tilt console.
Position
On the roof window on right-hand side in driving direction.
Meaning
This label indicates the position in which the control levers are locked.
Position
On the left-hand control lever base.
Meaning
Fuses.
Position
At the left under the seat.
Fig. 35
Fig. 36
Fig. 37
Fig. 38
