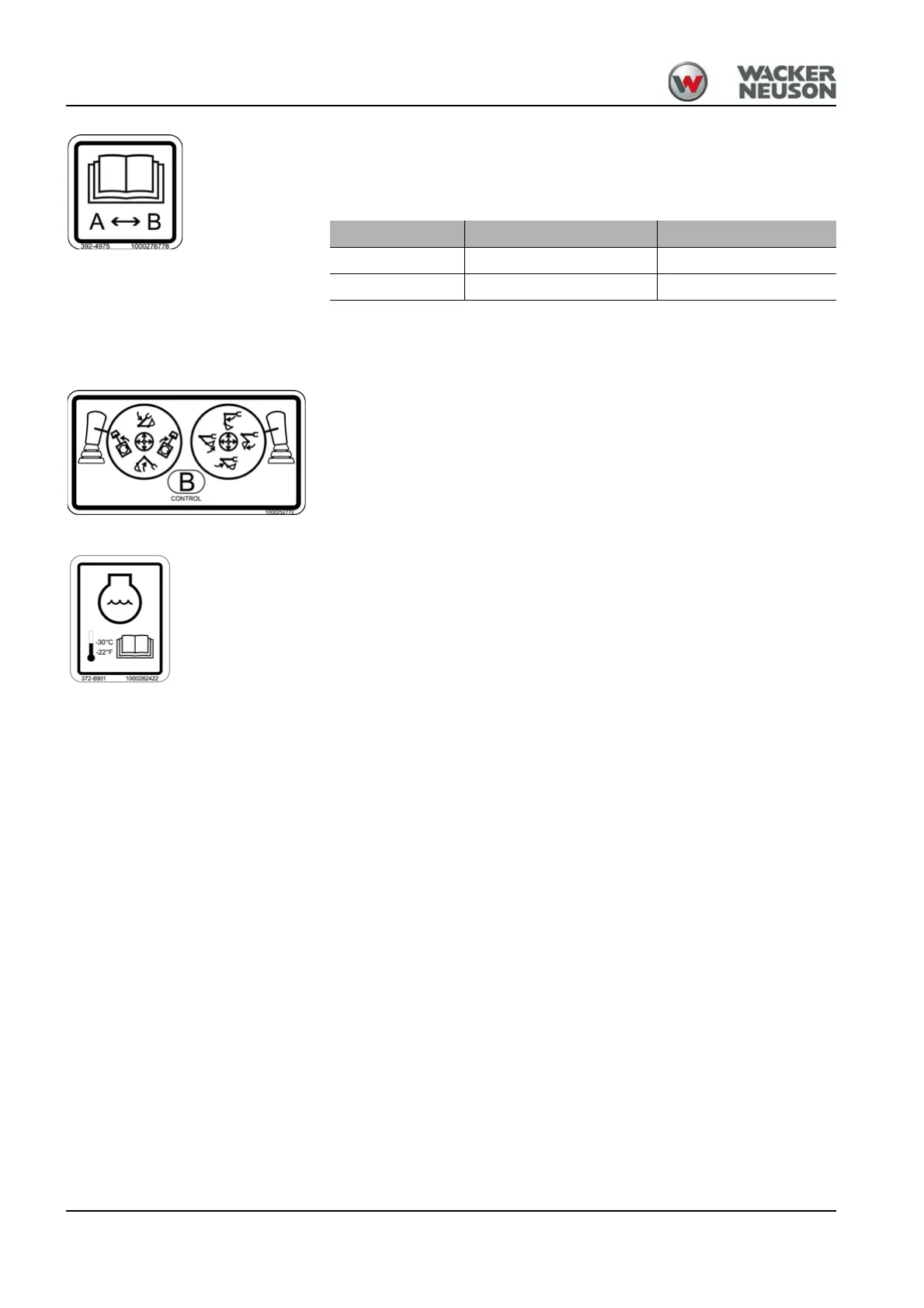

Meaning (option)
Check before starting the machine the operating pattern that has been
chosen. Label shows the lever position in which the ISO or SAE controls
are selected.
Position
On the upper carriage at the front left in driving direction.
Meaning (option)
Indicates the control operations that do not comply with the ISO standard
if the SAE controls are selected.
Position
On the roof window on right-hand side in driving direction.
Meaning
The coolant must have a thermal stability of at least –30 °C (–22 °F).
Position
In the engine compartment on the expansion tank.
Fig. 39
Wiring diagram Controls
A ISO controls Operating Pattern A
B SAE controls Operating Pattern B
