Meaning

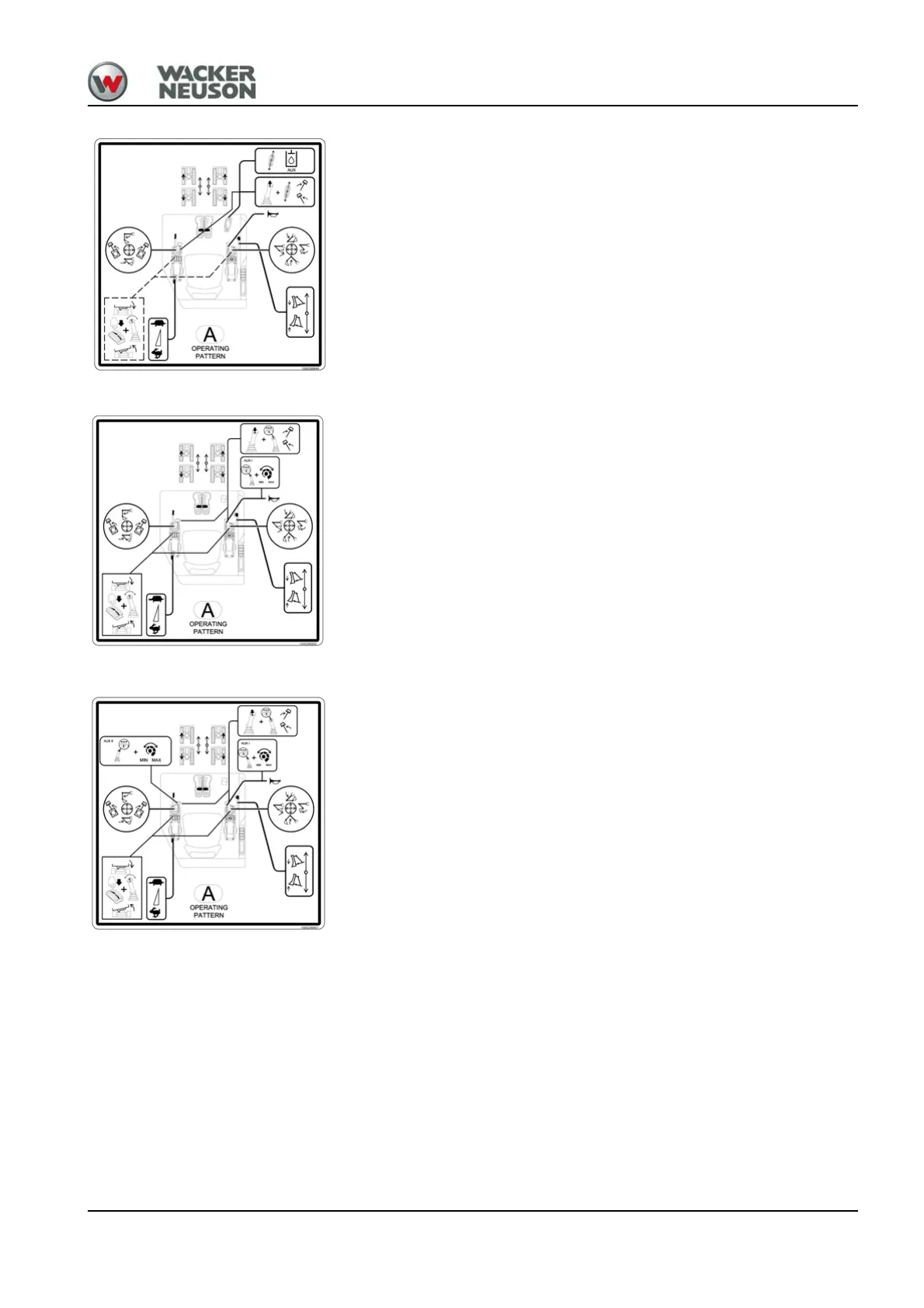

This label describes the functions of the pedals and control levers
(Operating Pattern A: ISO controls).
Check before starting the machine the operating pattern that has been
chosen.
Position
On the roof window on right-hand side in traveling direction.
Meaning
This label describes the functions of the pedals, control levers and of the
proportionally controlled auxiliary hydraulics (Operating Pattern A: ISO
controls).
Check before starting the machine the operating pattern that has been
chosen.
Position
On the roof window on right-hand side in traveling direction.
Meaning
This label describes the functions of the pedals, control levers and 3rd
control circuit/Powertilt with proportional controls (Operating Pattern A:
ISO controls).
Check before starting the machine the operating pattern that has been
chosen.
Position
On the roof window on right-hand side in traveling direction.
Fig. 42
Fig. 43
Fig. 44
