3-20 OM EZ38 us 1.1 * ez38e300.fm
3

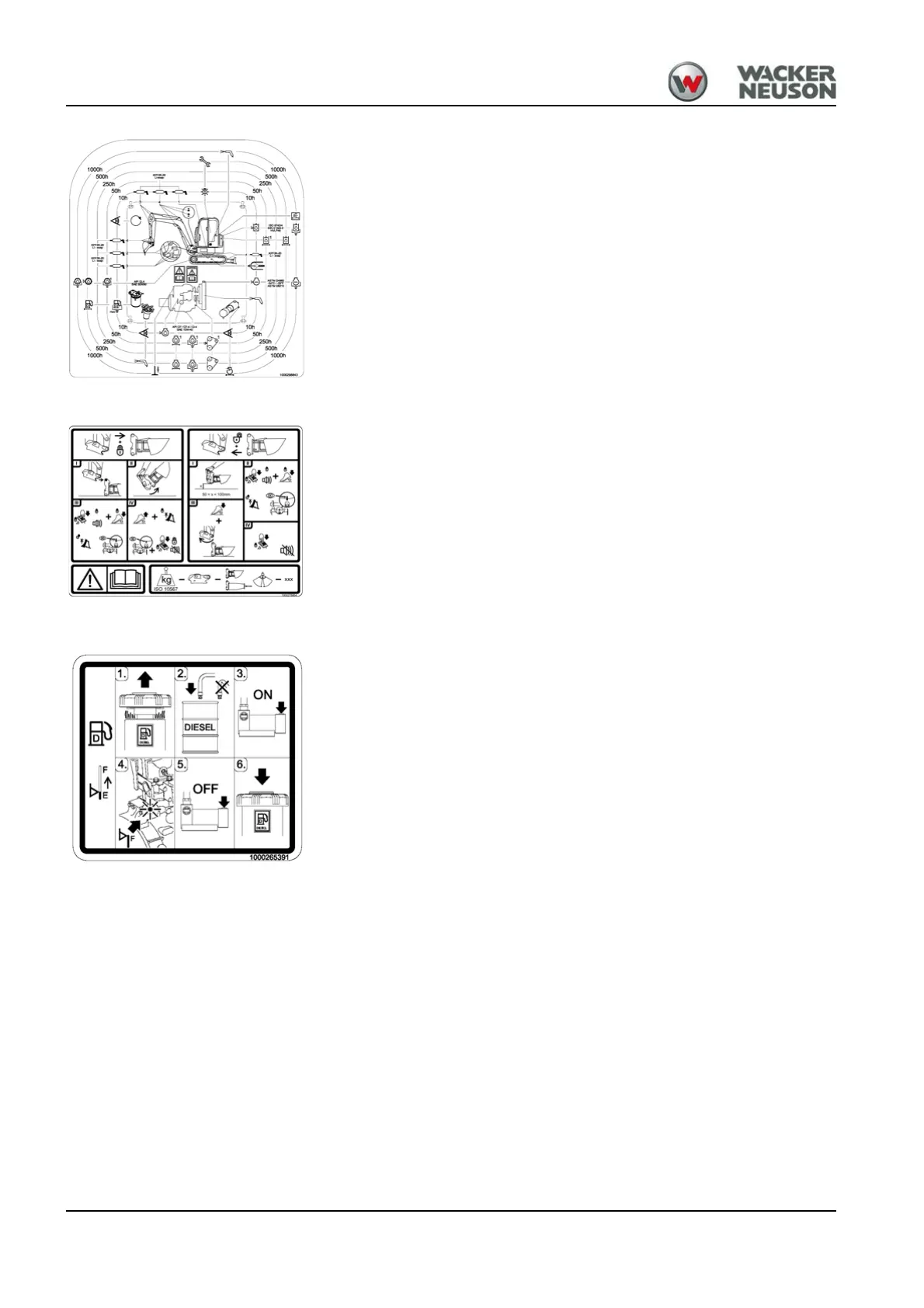

Meaning
Indication of maintenance intervals.
Position
On the roof window on the left in traveling direction.
Meaning
This label describes the functions of the hydraulic Easy Lock quickhitch.
Position
On the roof window on right-hand side in traveling direction.
Meaning
This label shows how to refuel with a fuel-filling pump.
Position
Near the fuel-filling pump.
Fig. 45
Fig. 46
Fig. 47
