O P E R ATIN G A N D O PE R AT I O N
113
W L 3 0
Electrical connector on the loader lift arms

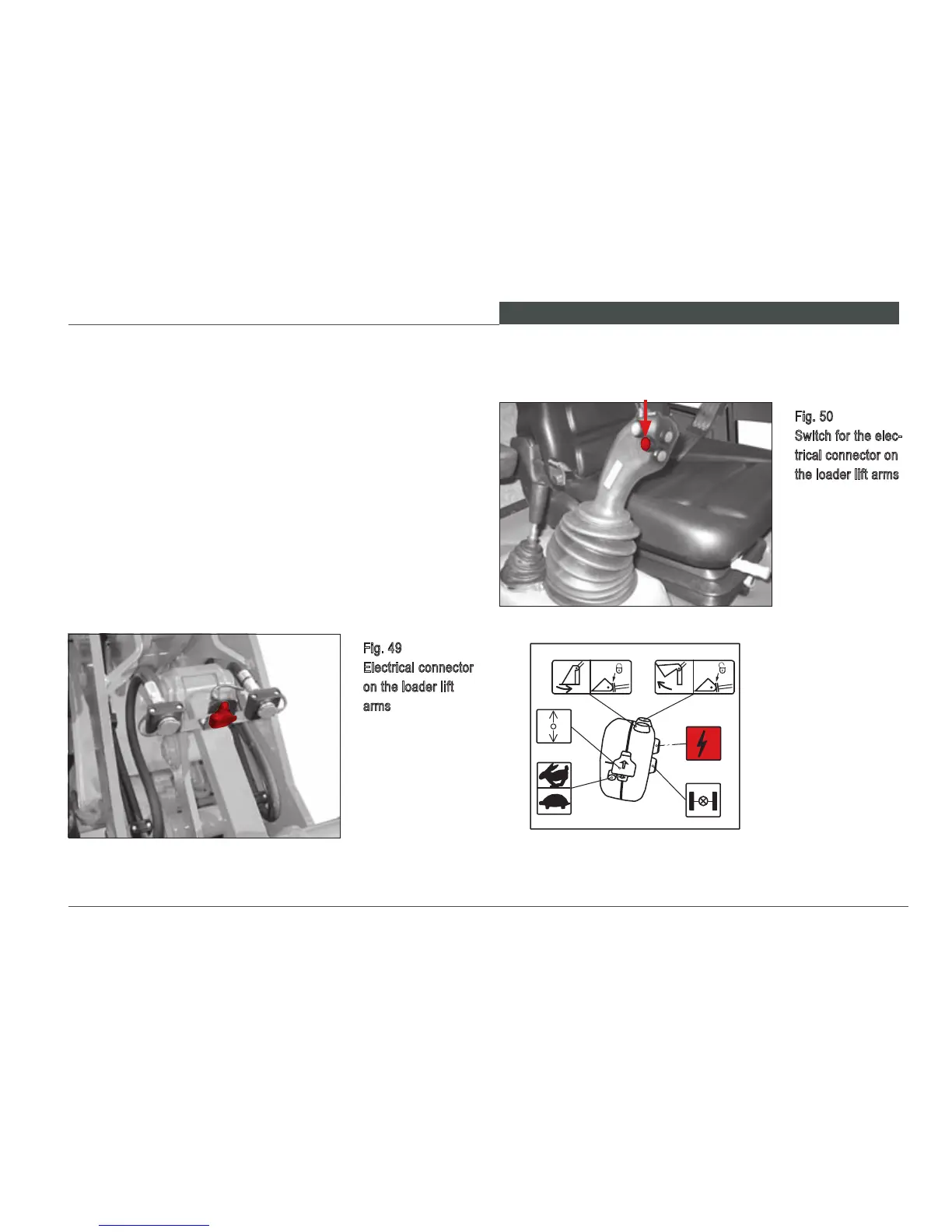

Switch the electrical connector on the lift arms (Fig. 49) by
means of the switch, Item 2 (Fig. 50), on the control lever.
The electrical connector on the loader lift arms is used to
connect attachments for which certain functions must be
activated electrically.
Fig. 50
Switch for the elec-
trical connector on
the loader lift arms
2
12 V
2
Fig. 49
Electrical connector
on the loader lift
arms
