S E R V I C I N G A N D I N S PE C T I O N
192

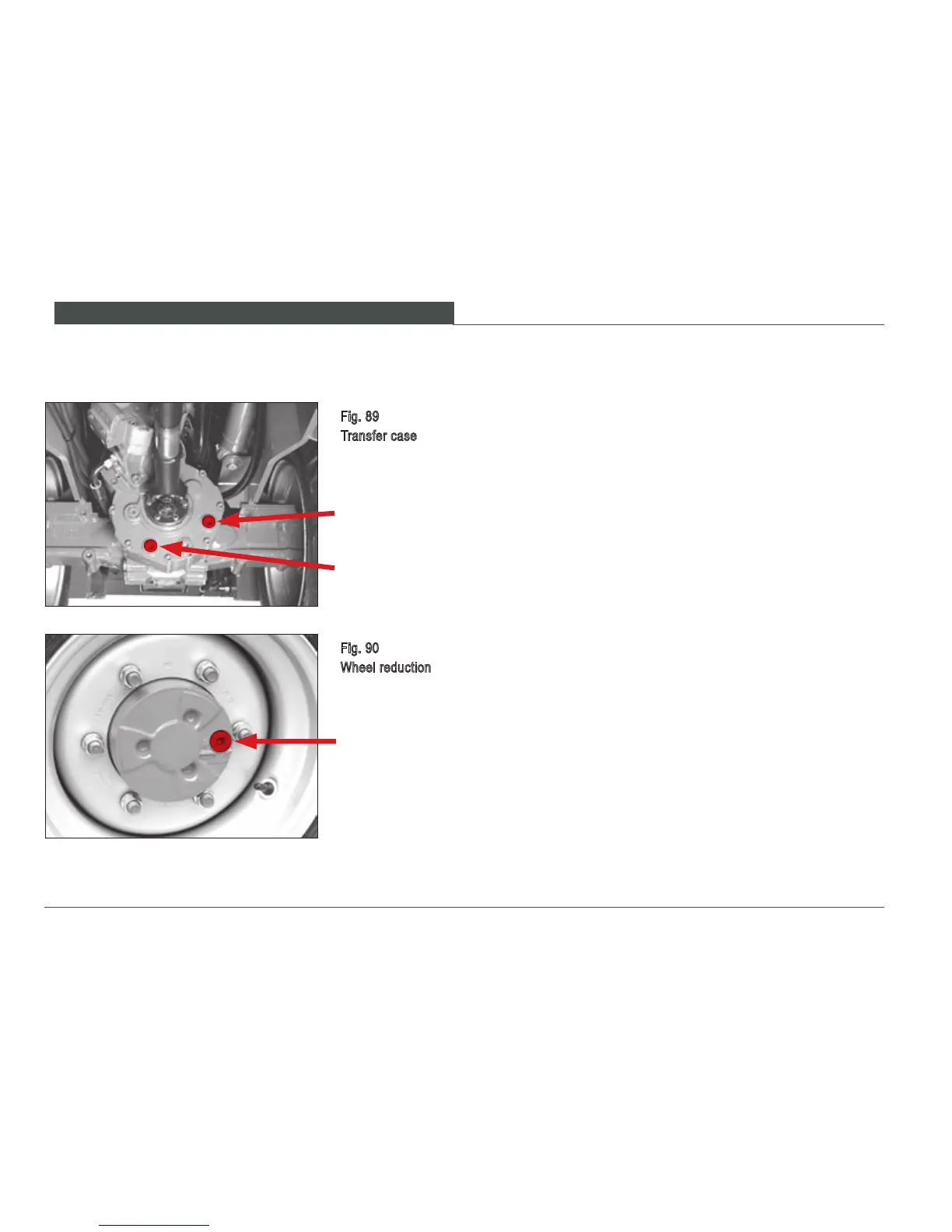

Fig. 89
Transfer case
c
d
Fig. 90
Wheel reduction
e
1.
Stop the loader on a horizontal surface and set the park-
ing brake.
2.
Lower the loader lift arms and attachment to the ground
or work surface.
3. Stop the engine.
4.
Remove the hex socket screws items a, c, e
(Fig. 88/89/90). For the wheel reduction gears raise the
wheel with a jack rst and turn it so that the hex socket
screw Item e (Fig. 90) is horizontal.
5.
The transmission oil must be at or below the bottom
edge of the ller neck.
6. If necessary, add transmission oil.
7.
Replace the hex socket screws items a, c, e
(Fig. 88/89/90).
