S E R V I C I N G A N D I N S PE C T I O N
160
Tilting the operator’s platform:
1.
Remove any loose objects from the operator’s platform.
2.
Make sure there is sufcient room to the right of the
loader.
3. Close the cab doors.
4. Open the engine enclosure.
5.
Remove the two mounting bolts from the support
bracket on the left of the operator’s platform (Fig. 64).
Note: Do not remove the bolts that hold the support
bracket to the rear frame.
6.
Remove the lever (item 1, Fig. 63) from the retaining clips
and insert it into the holder (item 2, Fig. 63) beneath the
operator’s platform.
7.
Pull upward on the lever to tilt the operator’s platform
to the right.
8.
Prop the tilted operator’s platform by raising the support
bar stored in the cross member on the bottom of the cab
oor and inserting it into the pocket (Fig. 65).

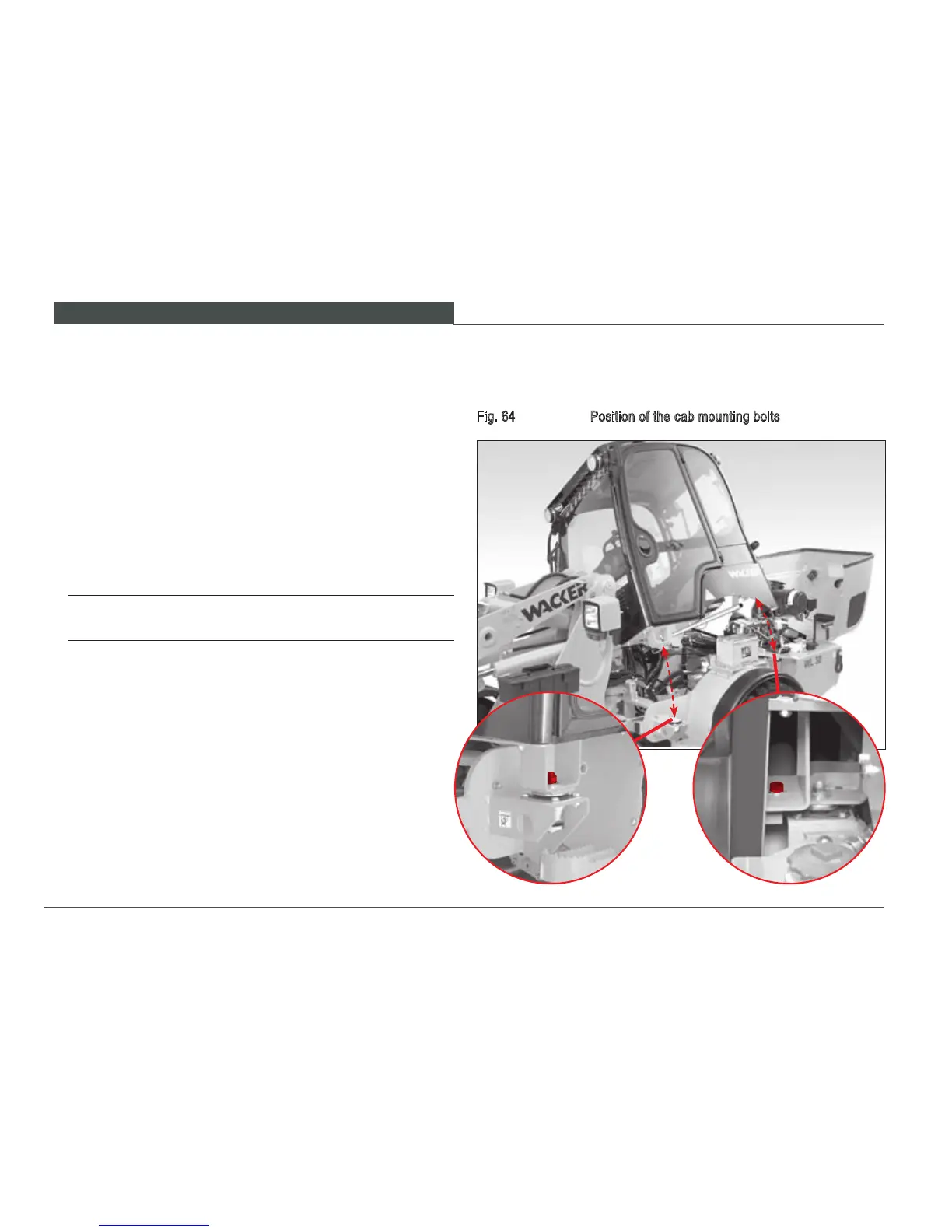

Fig. 64 Position of the cab mounting bolts
