S E R V I C I N G A N D I N S PE C T I O N
163
W L 3 0

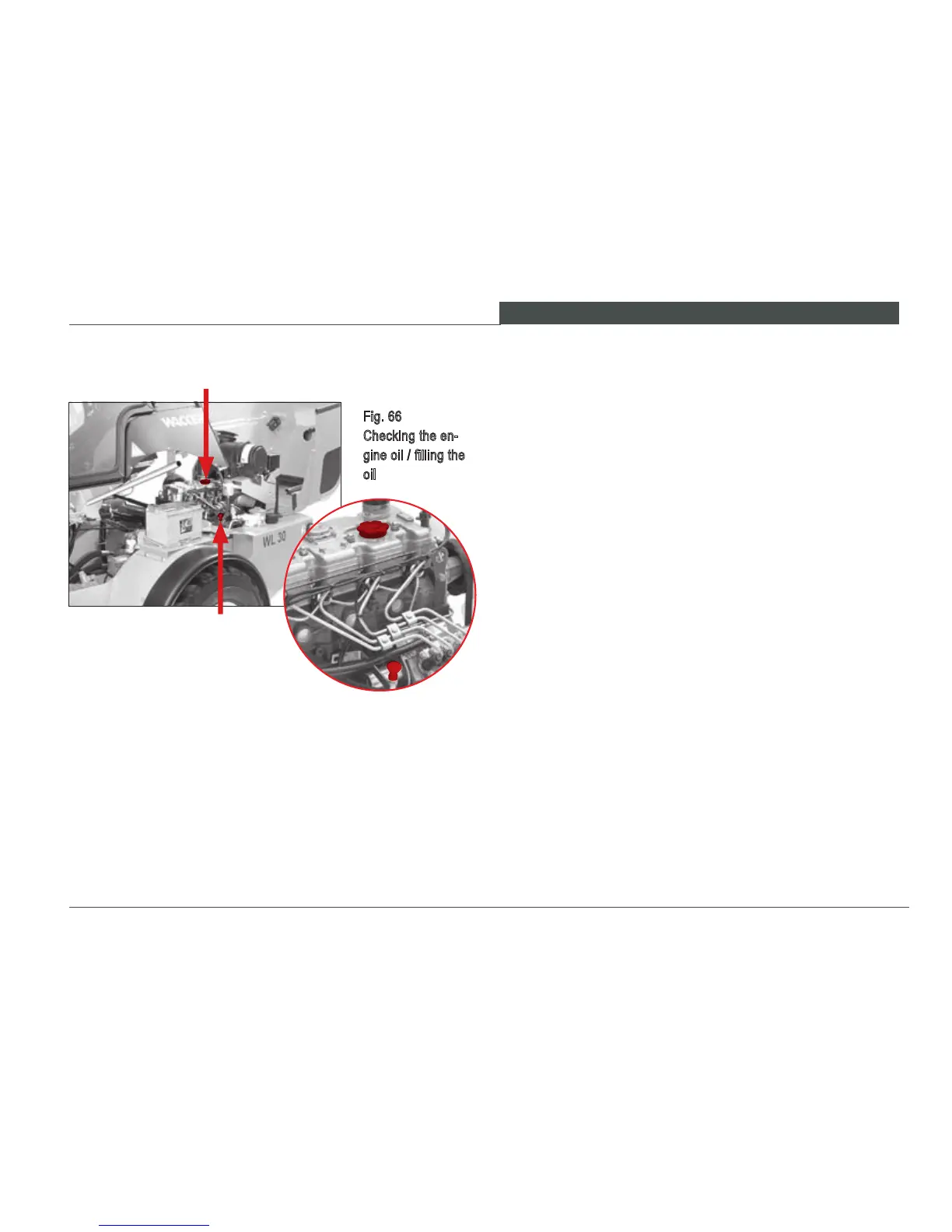

Fig. 66
Checking the en-
gine oil / filling the
oil
2
1
1.
Stop the loader on a horizontal surface and set the park-
ing brake.
2.
Lower the loader lift arms and attachment to the ground
or working surface.
3. Stop the engine.
4.
Wait until the engine has cooled and the dipstick is com-
fortable to touch.
5. Open the engine enclosure.
6. Pull out the dip stick (left side of the engine; Item 1 Fig.
66).
7. Wipe the dip stick with a clean, lint-free cleaning rag.
8. Put the dip stick back in.
9. Pull the dip stick out again.
10.
Check the oil level. The oil level must be between the
»minimum« and »maximum« marks.
11. Put the dip stick back in after checking the oil level.
