4.4 Indicator devices

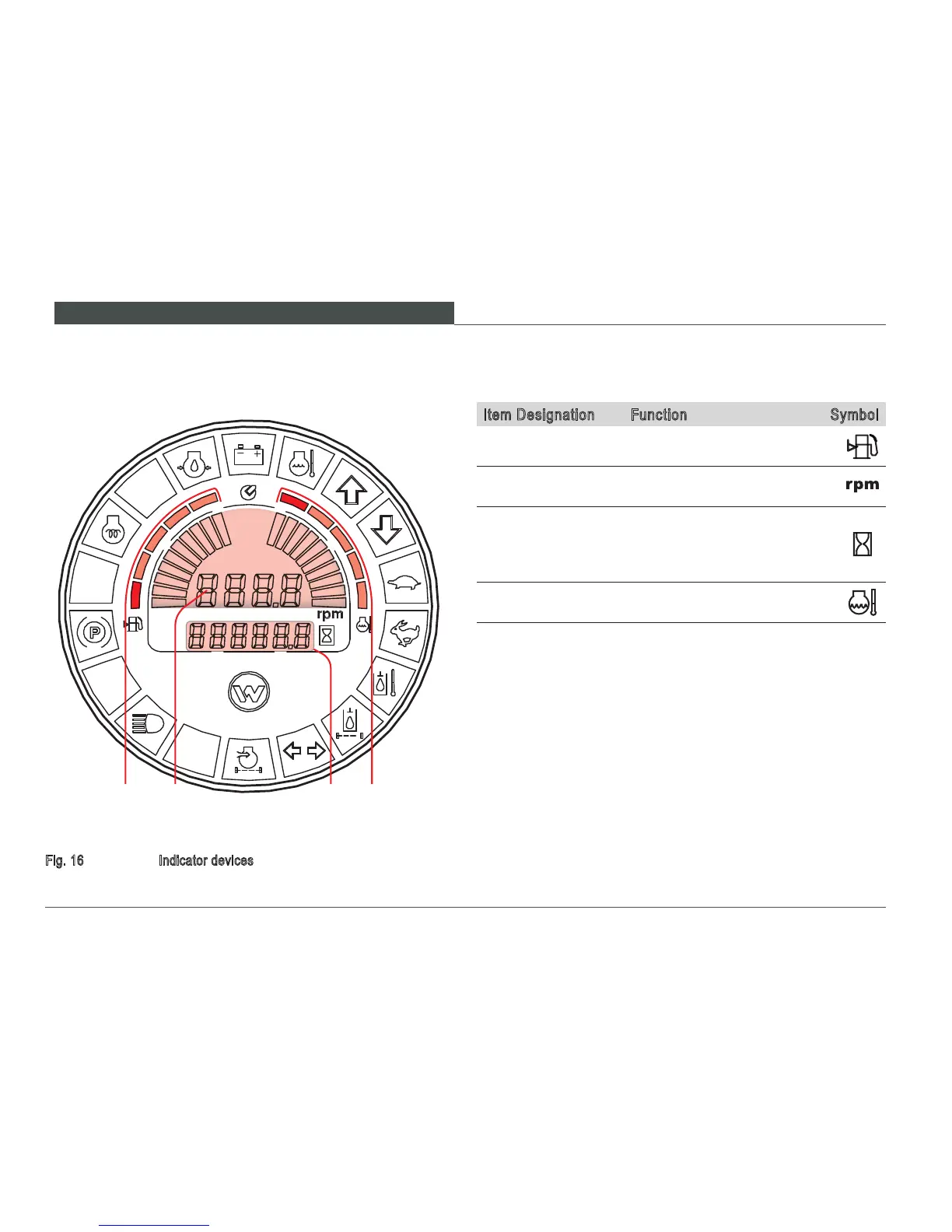

Fig. 16 Indicator devices
2 431
Item Designation Function Symbol
1
Fuel gauge Shows the fuel quantity
2
Tachometer Shows the diesel engine‘s rpm
3
Hour meter
Adds up the loader‘s operating
time. Plan your service work
and inspection work according
to the meter reading
4
Engine tem-
perature
Shows the diesel engine‘s
temperature
