Woodward GCP-20 Series User Manual

Manual 37128A GCP-20 Series - Genset Control
© Woodward Page 15/190
Chapter 4.
Housing
Dimensions
≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡
Housing Type APRANORM DIN 43 700
Dimensions 144 × 96 × 118 mm
Front cut out 138 [+1.0] × 92 [+0.8] mm
Connection Screw type connector, depending on plug connector 1.5 mm² or 2.5 mm²
Protection system IP 21
Weight depending on model, approx. 1,000 g
Bottom view
Side view
2004-12-01 | GCP20 Dimensions g3ww-4904-ab.skf
0 1 24
50 54
Back view with
connecting terminals
X5
93 104 60
48
9290 Y1 Y5 X1
75
25
128120
Front view
116
Direct configuration
port
Direct configuration port
144
8
96
136 88

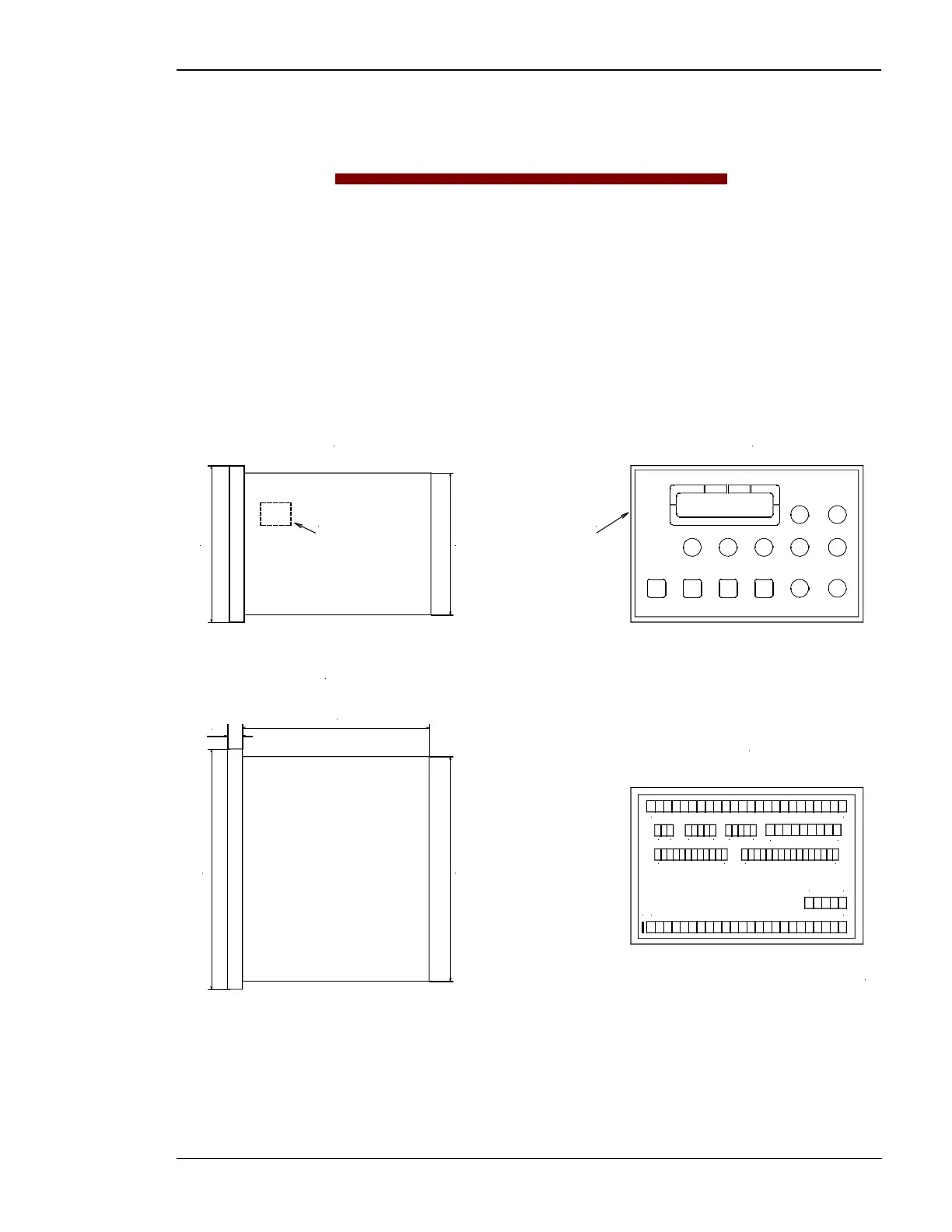

Figure 4-1: Housing - Dimensions
