Manual 37128A GCP-20 Series - Genset Control
© Woodward Page 151/190
Appendix A.
Technical Data

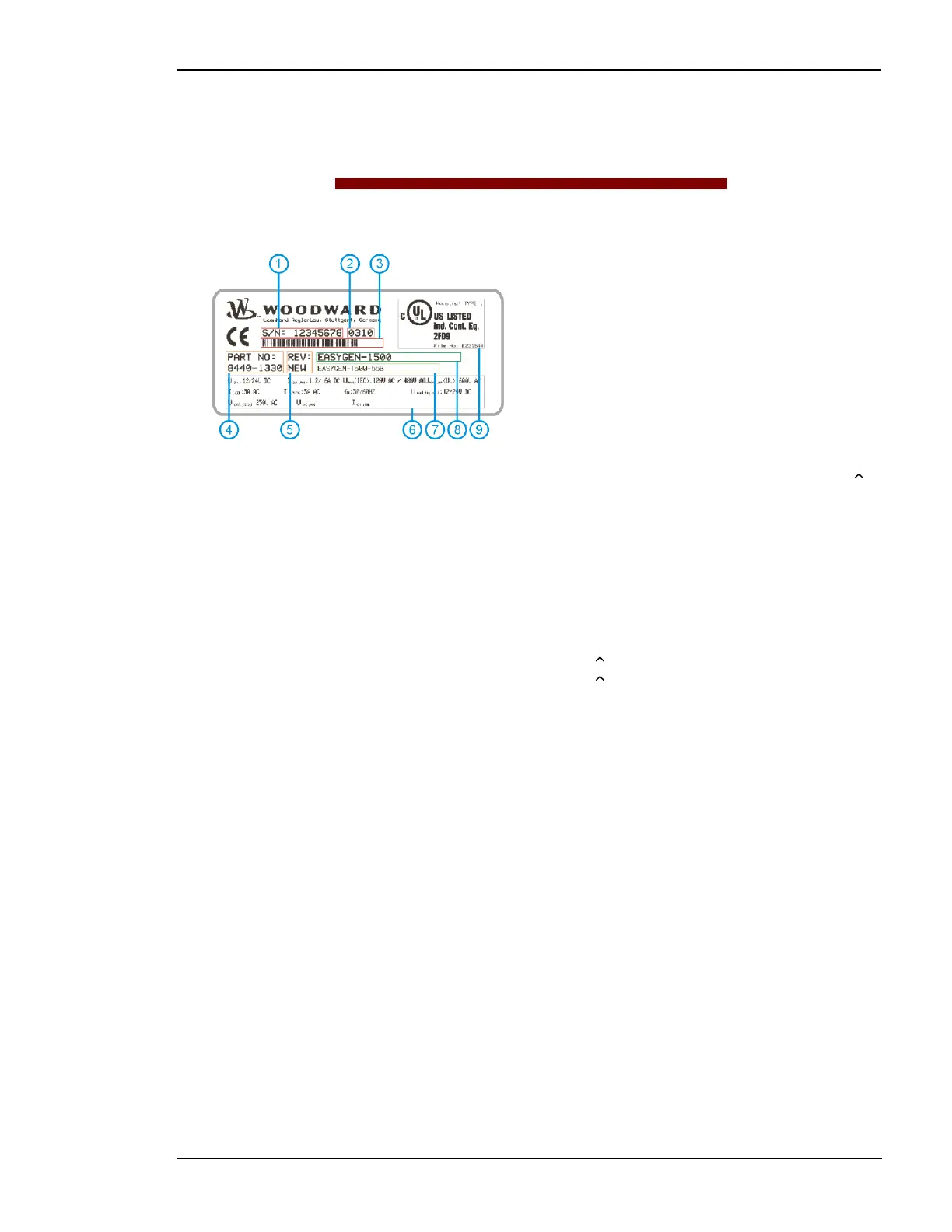

Name plate -----------------------------------------------------------------------------------------------------
(Example of a typical name plate)
1 S/N Serial number (numerical)
2 S/N Date of production (YYMM)
3 S/N Serial number (Barcode)
4 P/N Item number
5 REV Item revision number
6 Details Technical data
7 Type Description (long)
8 Type Description (short)
9 UL UL sign
Measuring values, voltages------------------------------------------------------------------------------
/Δ
- Measuring voltages [1] 120 Vac
Rated value (V
rated
)....................................... 69/120 Vac
Maximum value (UL max)........................max. 150 Vac
[4] 400 Vac
Rated value (V
rated
)..................................... 231/400 Vac
Maximum value (UL max)........................max. 300 Vac
- Setting range (prim)............................................................................ 0.050 to 65.000 kVac
- Setting range (sec) [1]........... 50 to 125 Vac.....................Δ 50 to 114 Vac
[4]...........
50 to 480 Vac....................Δ 50 to 380 Vac
- Measuring frequency..................................................................50/60 Hz (40.0 to 70.0 Hz)
- Accuracy....................................................................................................................Class 1
- Input resistance per path [1] 0.21 MΩ
[4] 0.7 MΩ
- Maximum power consumption per path................................................................ < 0.15 W
Measuring values, currents ------------------------------------------------------ galvanically isolated
- Measuring current [../1] Rated value (I
rated
).......................................... ../1 A
[../5] Rated value (I
rated
)......................................... ../5 A
- Accuracy....................................................................................................................Class 1
- Linear measuring range Generator (terminals x/x) .................................3.0 × I
rated
Mains/ground current (terminals x/x) ............. 1.5 × I
rated
- Maximum power consumption per path...............................................................< 0.15 VA
- Rated short-time current (1 s) [..1/ A]............................................................50.0 × I
rated
[../5 A]........................................................... 10.0 × I
rated
Ambient variables --------------------------------------------------------------------------------------------
- Power supply ............................................................................12/24 Vdc (9.5 to 32.0 Vdc)
- Intrinsic consumption ..........................................................................................max. 20 W
- Ambient temperature Storage ................................. -30 to 80 °C / -22 to 176 °F
Operation................................-20
to 70 °C / -4 to 158 °F
- Ambient humidity.............................................................................. 95 %, non condensing
