Woodward GCP-20 Series User Manual

Manual 37128A GCP-20 Series - Genset Control
Page 26/190 © Woodward

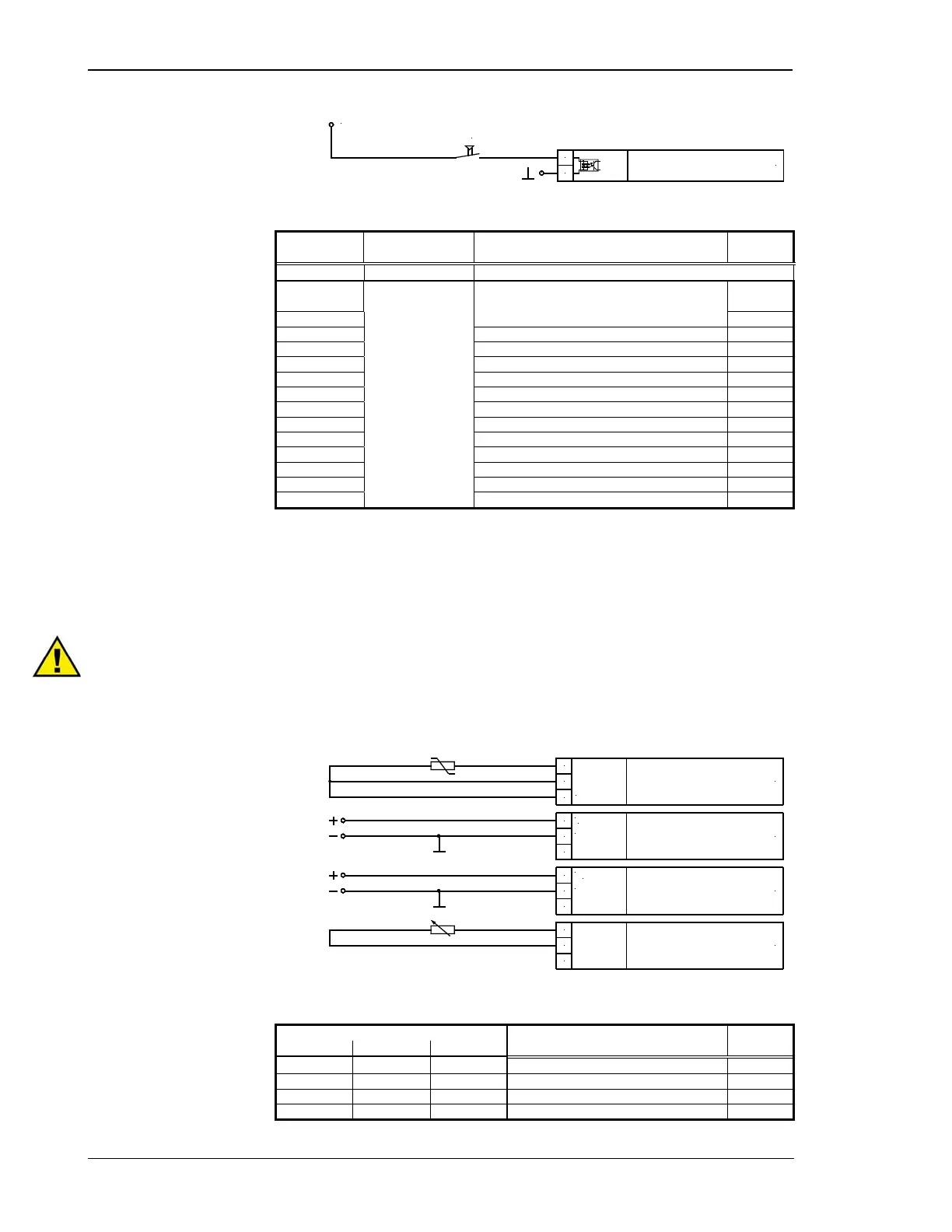

Alarm Inputs
Digital input
AB
Signal device
4 to 40 V DC
Figure 6-9: Alarm input (positive signal)
Terminal Associated com-
mon
Description
(according to DIN 40 719 Part 3, 5.8.3)
A
max
A B make contact
61
Discrete input 1 (for sprinkler op. = EMERG.
STOP)
1.5 mm²
62 Discrete input 2 1.5 mm²
63 Discrete input 3 1.5 mm²
64 Discrete input 4 1.5 mm²
65 Discrete input 5 1.5 mm²
66 Discrete input 6 1.5 mm²
67 Discrete input 7 1.5 mm²
68 Discrete input 8 1.5 mm²
69 Discrete input 9 1.5 mm²
70 Discrete input A 1.5 mm²
71 Discrete input B 1.5 mm²
72 Discrete input C 1.5 mm²
73 Discrete input D 1.5 mm²
74
60
Discrete input E 1.5 mm²
Table 6-9: Alarml inputs - terminal assignment (positive signal)
Analog Inputs (Option T4)
≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡≡
WARNING
The analog inputs of the GCP are not isolated. When using an isolation monitor, we recommend to use
two-pole, isolated transmitters.
The analog inputs for active transmitters (0 to 20 mA, 0 to 10V) should only be operated with two-pole,
isolated transmitters.
GND
GND
only at Pt100
C
a
AC CAB B CA
a
I
B AB
Analog input
NTC, PTC, VDO
0 to 180/380 Ohm
Analog input
0 to 5 V, 0 to 10 V, 0 to 150 mV
Analog input
0/4 to 20 mA
Analog input
Pt100 or Pt1000
V
Figure 6-10: Analog inputs
Terminal Description A
max
A B C
93 94 95 Analog input 1 1.5 mm²
96 97 98 Analog input 2 1.5 mm²
99 100 101 Analog input 3 1.5 mm²
102 103 104 Analog input 4 1.5 mm²
Table 6-10: Analog inputs - terminal assignment
