03/2003
4-34
8850/ 510DP
REP 8.4
Repairs and Adjustments
3. (Figure 2): On the underside of the Fuser Module, locate and detach the Stack Height
Sensor.
NOTE: On newer Printers the Stack Height Switch is also secured with a Spring Clip.

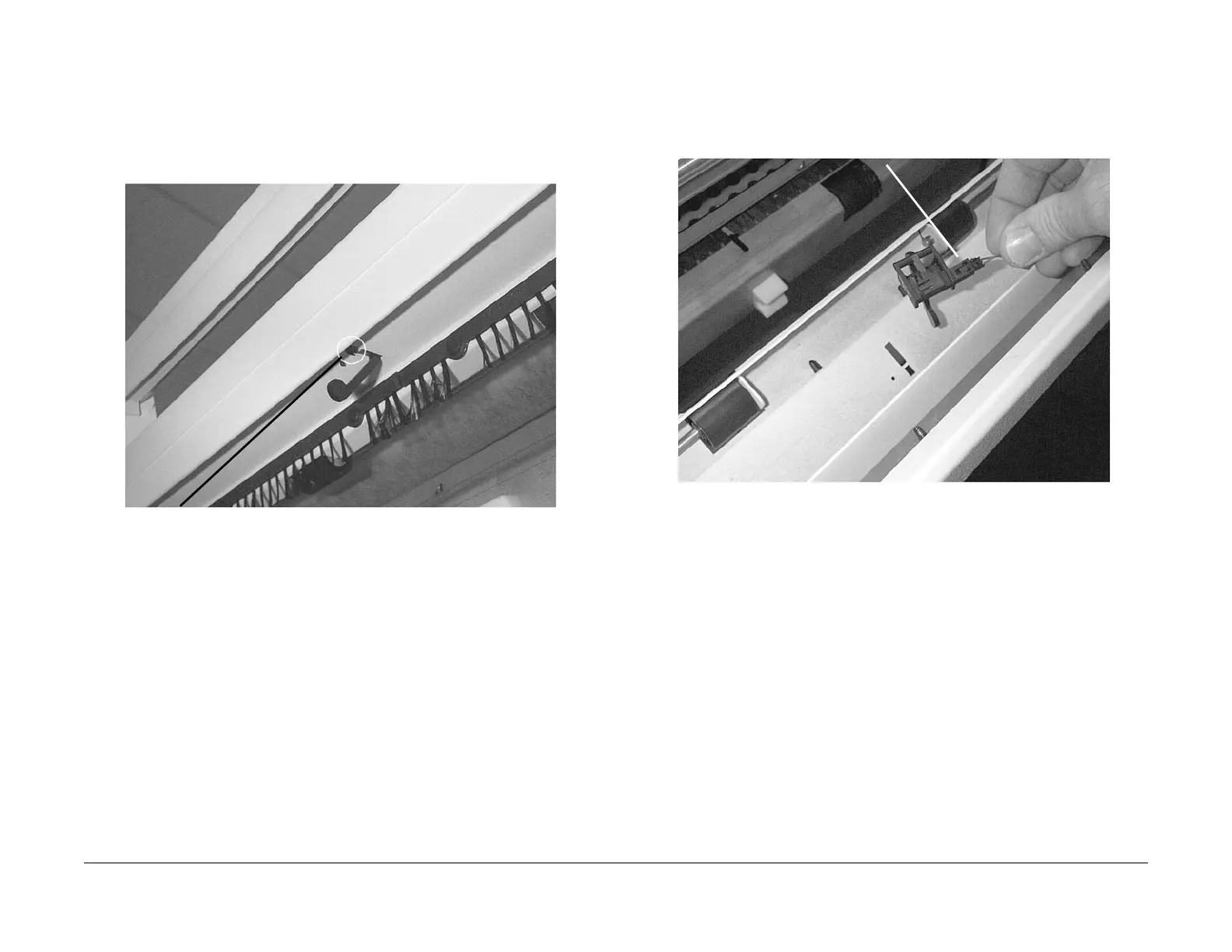

Figure 2 Detaching the Stack Height Sensor
4. (Figure 3): Remove the Stack Height Sensor from the Printer.
Figure 3 Removing the Stack Height Sensor
1
Remove the Spring Clip, then compress
locking tabs and push Stack Height Sen-
sor Assembly up through cutout in cover
1
Disconnect P/J Q2P1
