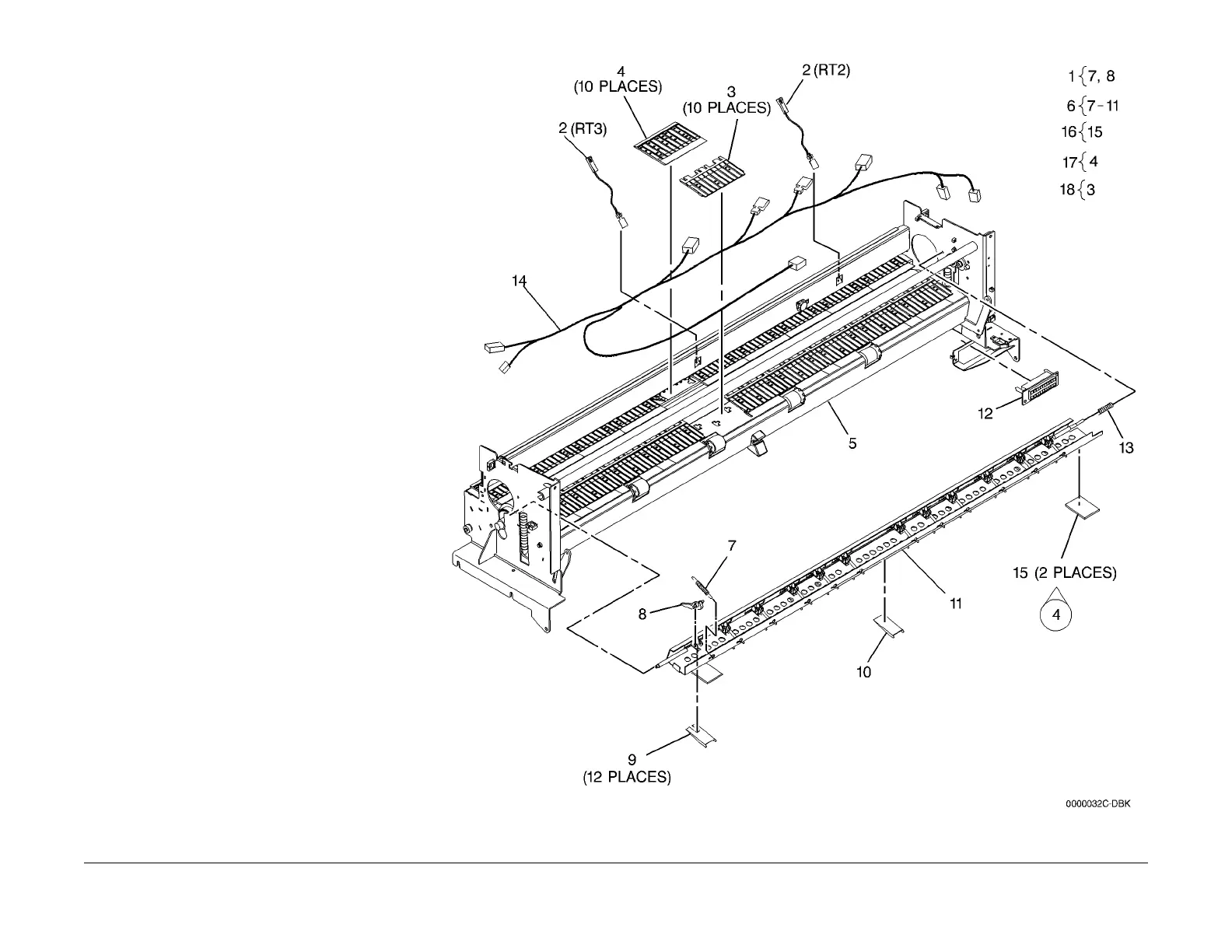

PL 10.3 Fuser Components (Part 2 of
4)
Item Part Description
1 604K04460 Stripper Finger Kit (Kit contains 12
Springs and 12 Stripper Fingers)
2 130K66560 CenterThermistor (RT3), Edge
Thermistor (RT2) (REP 10.7)
3 038E27721 Vacuum Transport Exit Guide
4 038E27710 Media Transport Guide
5 – Fuser Housing (P/O PL 10.1 Item
7)
6 030K71183 Stripper Finger Assembly
7 809E43260 Stripper Finger Spring
8 019E51260 Stripper Finger (REP 10.4)
9 035E64530 Media Guide
10 038K11070 Media Guide
11 – Stripper Support (P/O PL 10.3 Item
6)
12 962K02921 Fuser Harness Adapter
13 009E38060 Stripper Shaft Spring
14 962K00542 Fuser Harness
15 038K14960 Media Guide (TAG 4 )
16 604K12770 Stripper Repair Kit (TAG 4) (2/Kit)
17 604K04480 Entrance Guide Kit (10/Kit)
18 604K04470 Exit Guide Kit (10/Kit)
