Xerox 8850 Service Manual

03/2003
5-25
8850/ 510DP
PL 9.3
Parts Lists

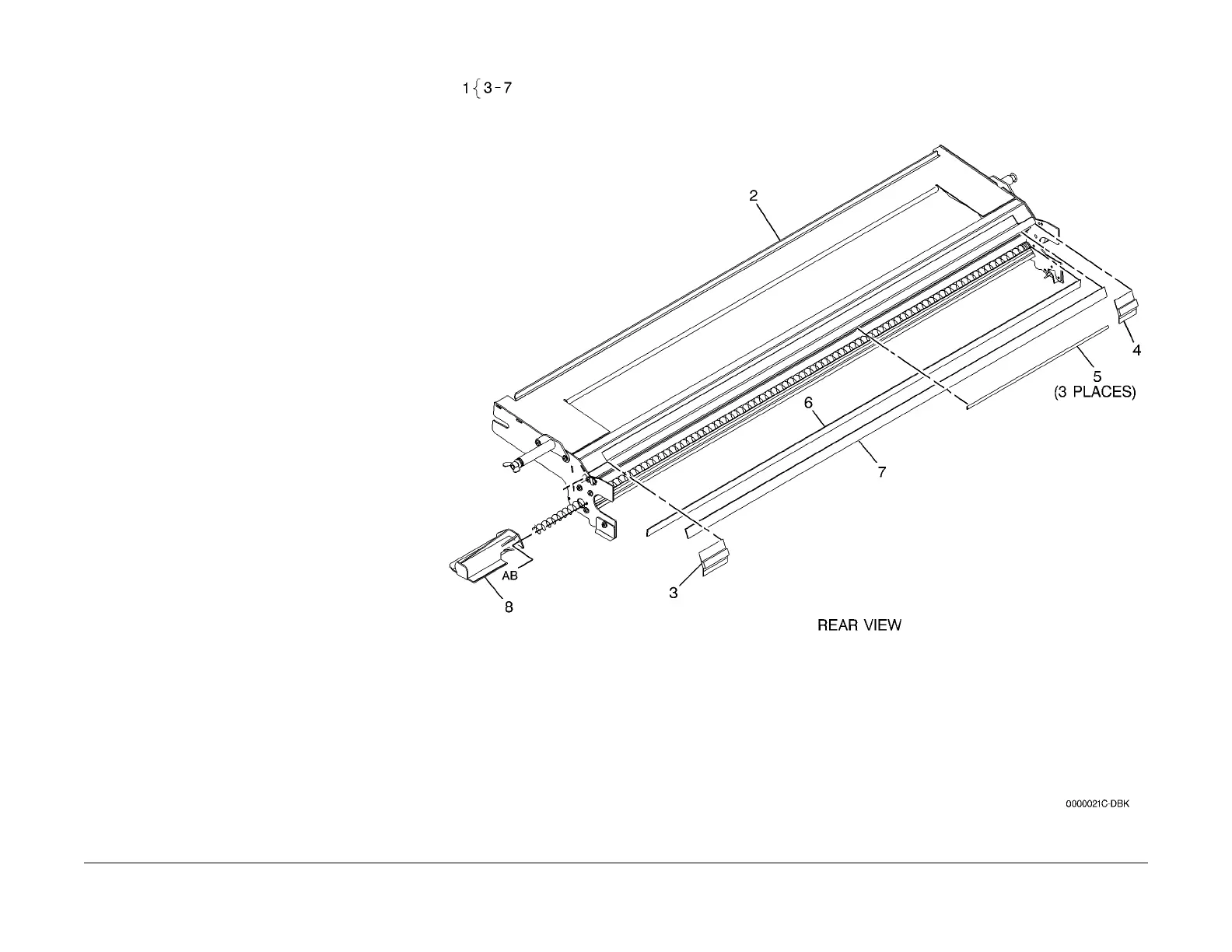

PL 9.3 Drum Cleaning (Part 1 of 3)
Item Part Description
1 600K59060 Cleaner Blade Repair Kit
2 – Xerographic Frame (P/O PL 9.1
Item 6,PL 9.3 Item 1)
3 – Blade Seal (P/O PL 9.1 Item 6,PL
9.3 Item 1)
4 – Blade Seal (P/O PL 9.1 Item 6,PL
9.3 Item 1)
5 – Cleaner Blade Retainer (P/O PL 9.1
Item 6,PL 9.3 Item 1)
6 035K05790 Photoreceptor Seal
7 – Cleaner Blade (P/O PL 9.1 Item
6,PL 9.3 Item 1) (REP 9.4)
8 021K02160 Toner Exit Cap
