Xerox 8850 - PL 7.1 Roll Supply Feed Assembly

03/2003
5-12
8850/ 510DP
PL 7.1
Parts Lists

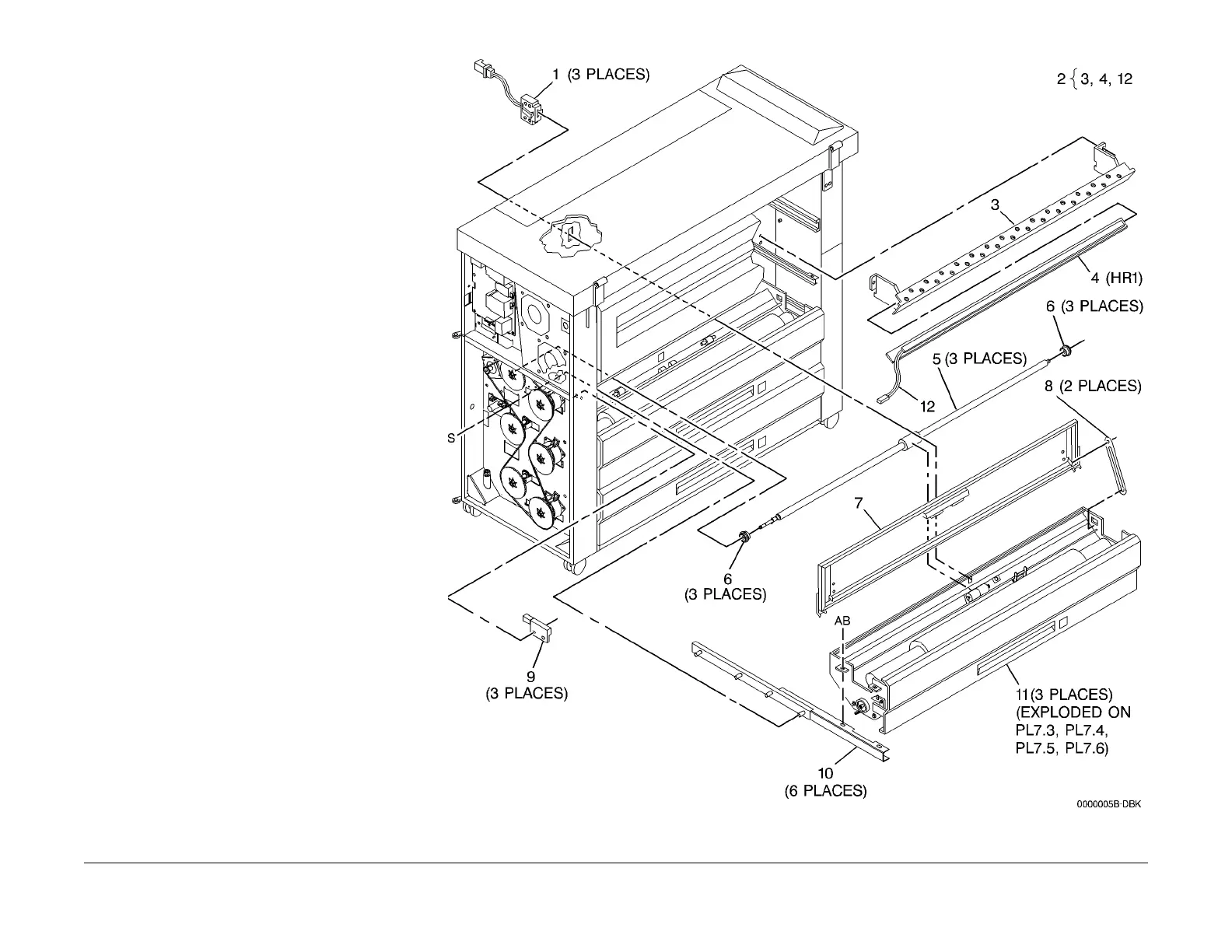

PL 7.1 Roll Supply Feed Assembly
Item Part Description
1 130K51801 Position Sensor
2 – Heater Assembly (Not Spared)
3 – Heater Housing (Not Spared)
4 126K07330 Upper Heater (Roll 1) (HR1) (REP
7.11)
5 022K79970 Roll Feed Drive Roll (REP 7.4)
6 413W31054 Bearing
7 802K39400 Drawer Cover
8 830E76230 Link
9 130E02271 Drawer Interlock Switch
10 010K01351 Slide
11 050K55060 Unsealed Roll Media Drawer
Assembly (510dp) (REP 7.1)
– 050K52841 Sealed Roll Media Drawer
Assembly (8850) (REP 7.1)
12 162K28610 Jumper Harness
