Xerox 8850 - 14.3 Front Door and Right Side Covers

03/2003
5-42
8850/ 510DP
PL 14.3
Parts Lists

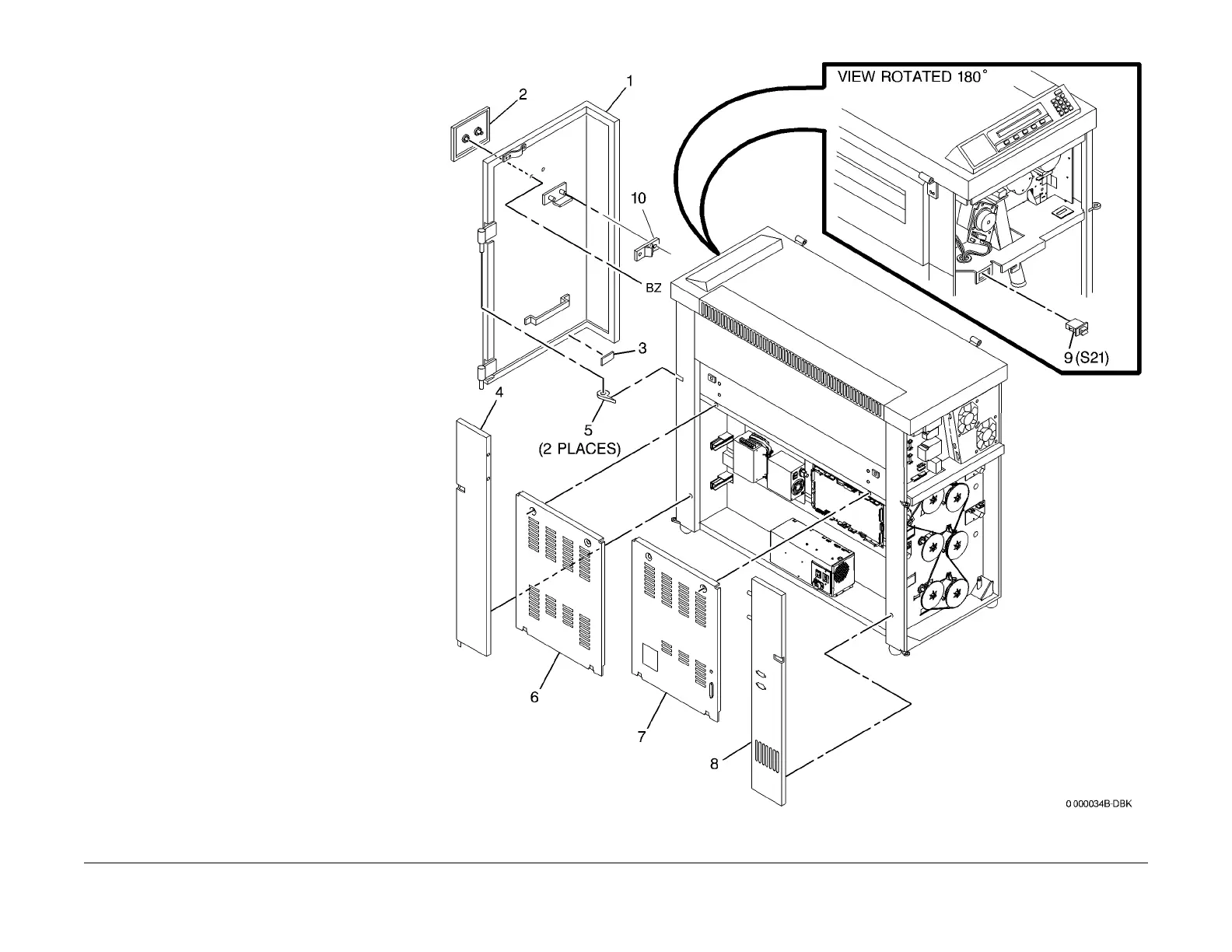

PL 14.3 Front Door and Right Side
Covers
Item Part Description
1 048K14304 Front Door
2 – Logo Plate (Not Spared)
3 121E10610 Magnet
4 048K47710 Right Side, Left Cover
5 014E20551 Right Hinge Spacer
6 048K47680 Right Side, Left Lower Cover
(8850)
– 802K61120 Right Side, Left Lower Cover
(510dp)
7 048K47692 Right Side, Right Lower Cover
8 048K44401 Right Side, Right Cover
9 110E02640 Front Door Interlock Switch (S21)
10 003E13010 Keeper
