Xerox 8850 - REP 7.3 Roll Feed Pinch Rolls

03/2003
4-11
8850/ 510DP
REP 7.2, REP 7.3
Repairs and Adjustments

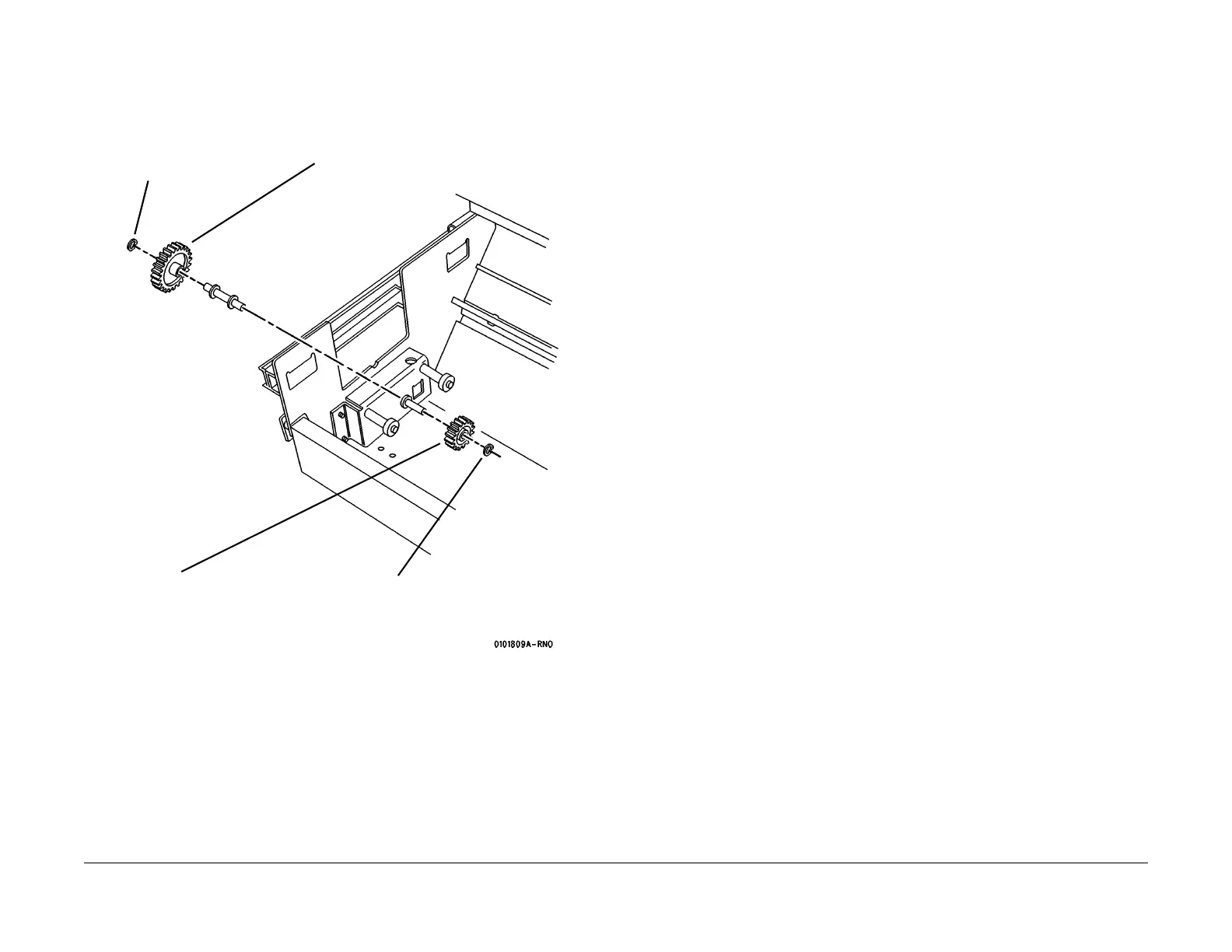

Figure 1 Removing the Rewind Gears
REP 7.3 Roll Feed Pinch Rolls
Parts List on PL 7.5
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
NOTE: All three Roll Feed Pinch Roll Assemblies are removed the same way.
Removal
1. Open the Roll Media Supply Drawer.
2. (Figure 1): Remove the Roll Feed Pinch Rolls.
4
Remove the
Rewind Gear
3
Remove the E-ring
2
Remove the Rewind
Internal Gear
1
Remove the E-ring
