REP 3.1 Main PWB (A3)
Parts List on PL 1.1
WARNING
Switch off the Controller and the Printer Main Power Switches. Disconnect the Printer
Power Cord.
CAUTION
Electrostatic Discharge Damage (ESD) may occur. Use ESD procedures and Antistatic Wrist
Strap to avoid damage to PWBs or components.
Removal
1. Attach a Static Wrist Strap between your wrist and the unpainted metal chassis of the
Controller.
2. (Figure 1): Remove the Controller or (Figure 2): Remove the P193 Interface Cover.

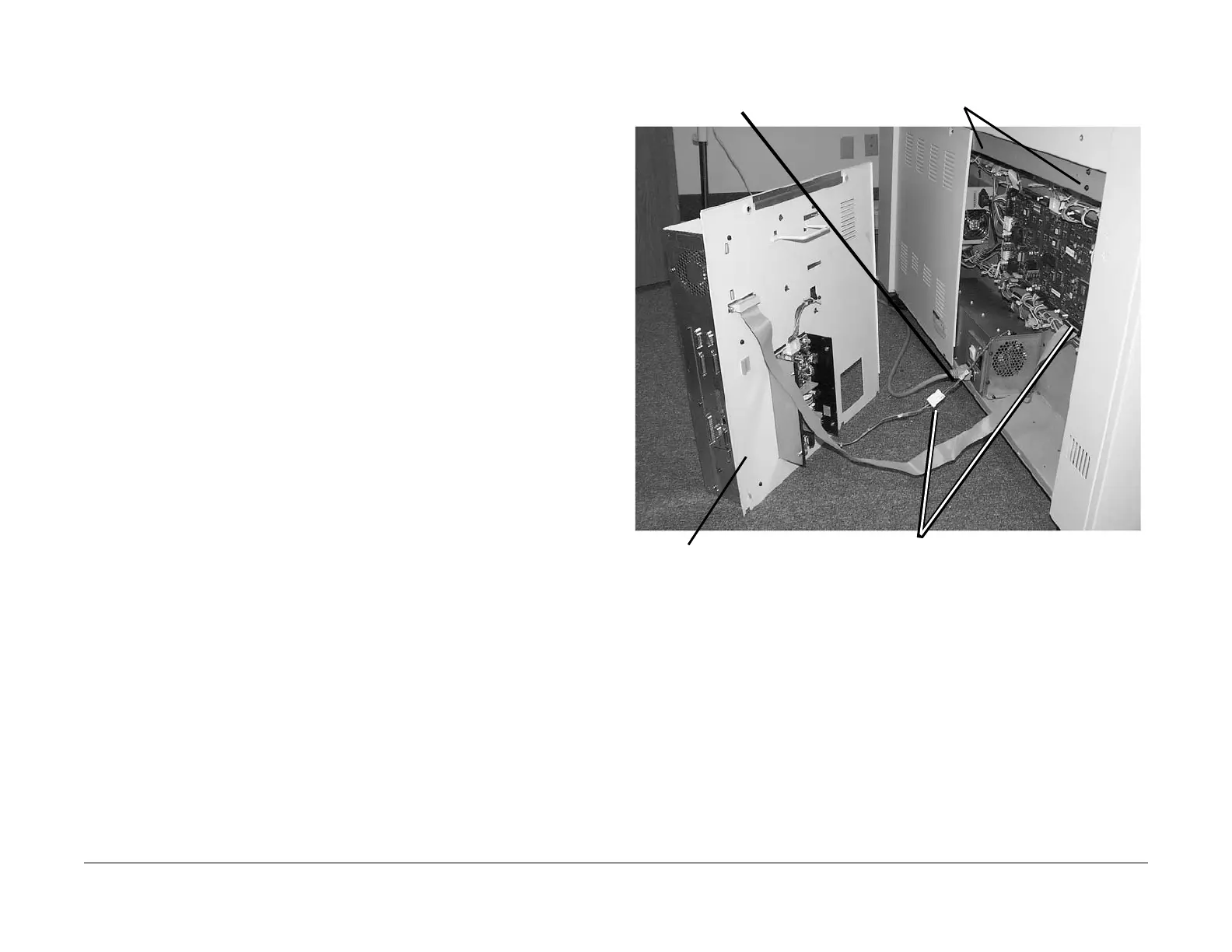

Figure 1 (8850) Removing the Controller
2
Remove 2 screws from the
Printer Right Lower Cover
3
Lift out the Controller
and set it on the floor
4
Disconnect connectors
A1P5 and J610
1
Diconnect the
Power Cord
To Next Page
