Xerox 8850 - 7.3 Roll Supply Drawer Components (Part 1 of 4)

03/2003
5-14
8850/ 510DP
PL 7.3
Parts Lists

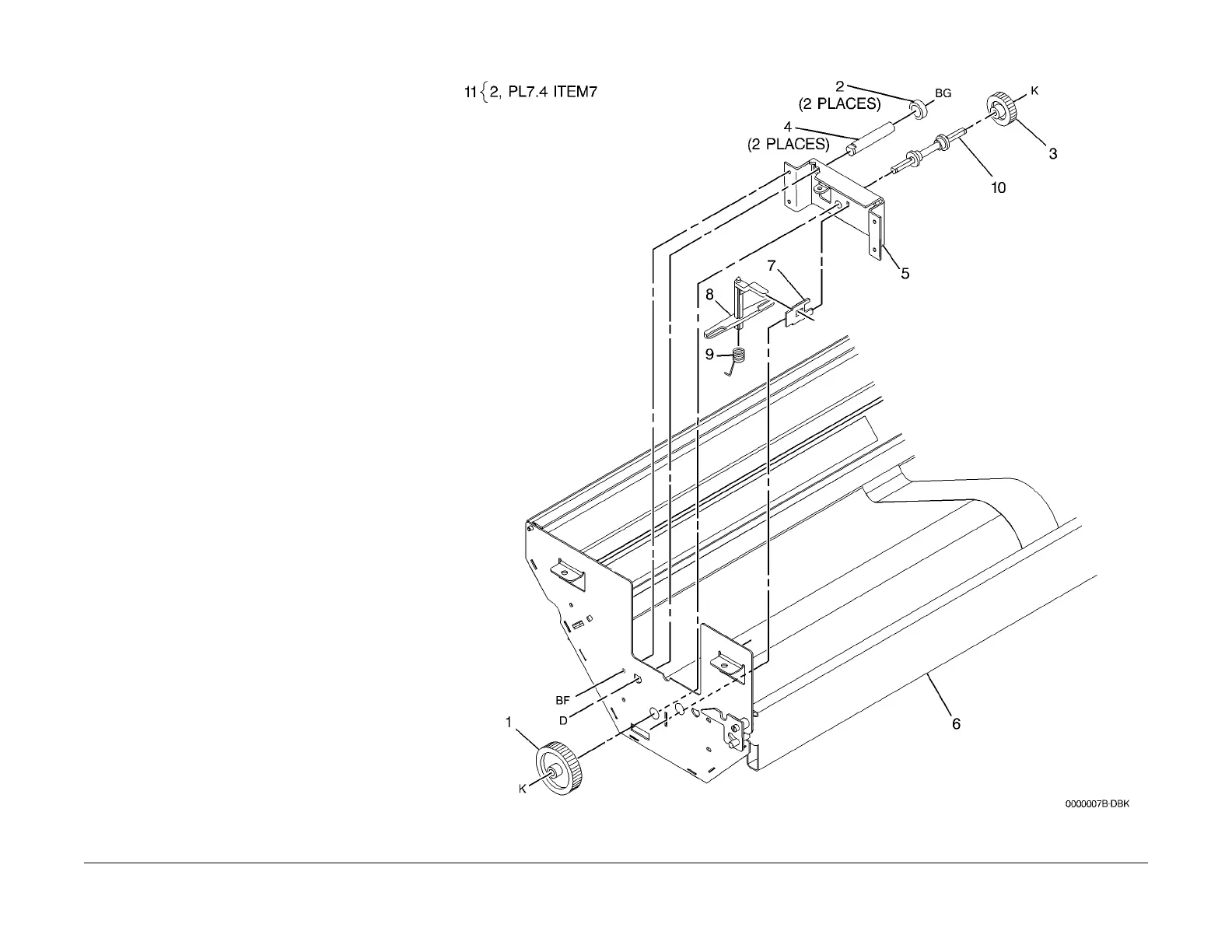

PL 7.3 Roll Supply Drawer
Components (Part 1 of 4)
Item Part Description
1 007E14600 Rewind Gear (32T) (REP 7.2)
2 022E11540 Support Roller
3 007E14650 Rewind Internal Gear (20T) (REP
7.2)
4 029E14760 LH Support Pin
5 – LH Cradle Bracket (P/O PL 7.1 Item
11)
6 – Drawer Frame (P/O PL 7.1 Item 11)
7 – LH Roll Lock (P/O PL 7.1 Item 11)
8 003E17610 Roll Lock
9 009E27340 Roll Lock Spring
10 029E12930 Rewind Shaft
11 604K17800 Support Roller Kit
