Xerox 8850 - BSD 1.1 Main Power on (50 and 60 HZ)

Xerox 8850
432 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
03/2003
7-8
8850/ 510DP
BSD 1.1
Wiring Data

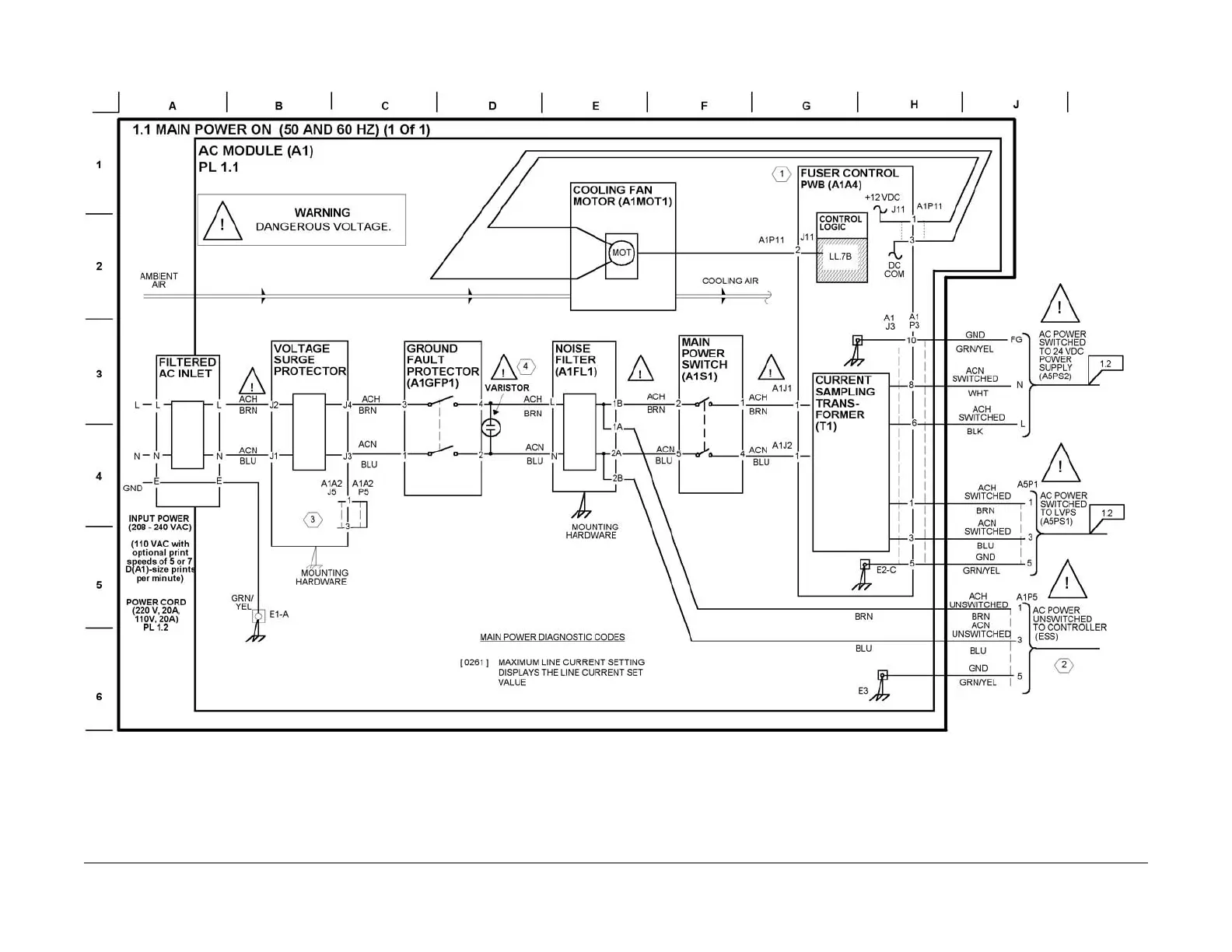

BSD 1.1 Main Power On (50 and 60 HZ)
