03/2003
5-22
8850/ 510DP
PL 8.3
Parts Lists

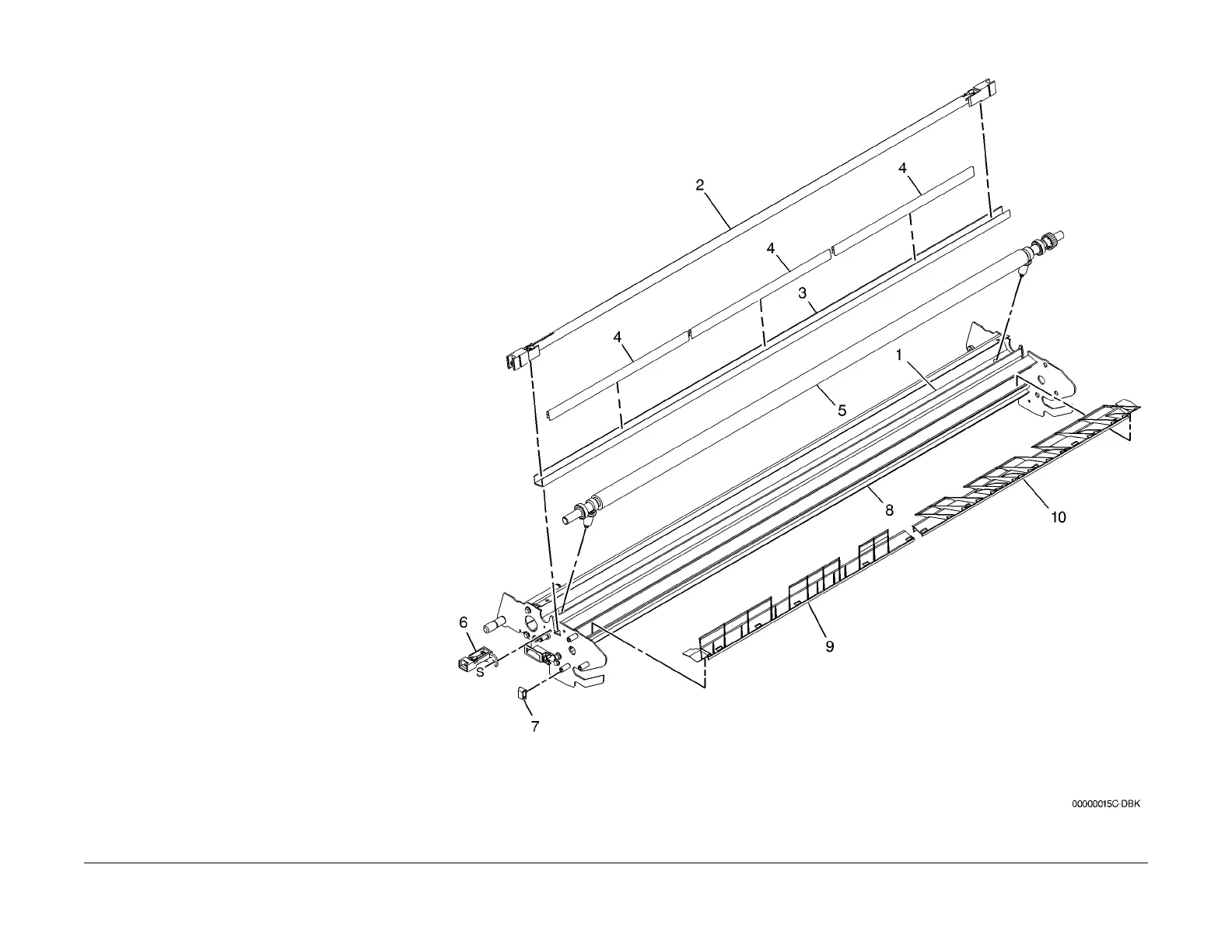

PL 8.3 Media Registration
Components (Part 2 of 2)
Item Part Description
1 038K14000 BTR Extrusion (ADJ 8.1)
2 029K03530 Detack Corotron (REP 9.9)
3 – Shield (P/O PL 8.1 Item 1)
4 809E45020 Clip
5 006K26760 Bias Transfer Roll (REP 8.18)
6 030K73120 BTR Contact
7 019E07100 Cable Clip
8 – Media Transport Frame (P/O PL 8.1
Item 1)
9 055E49380 Left Media Shield
10 055E49390 Right Media Shield
