03/2003
4-139
8850/ 510DP
REP 14.1
Repairs and Adjustments
REP 14.1 Top Cover
Parts List on PL 14.5, SPS 510dp PL 14.6
WARNING
Switch off the Controller and the Printer Main Power Switches. Disconnect the Printer
Power Cord.
Removal
1. (Figure 1): Open the Printer Rear Door.

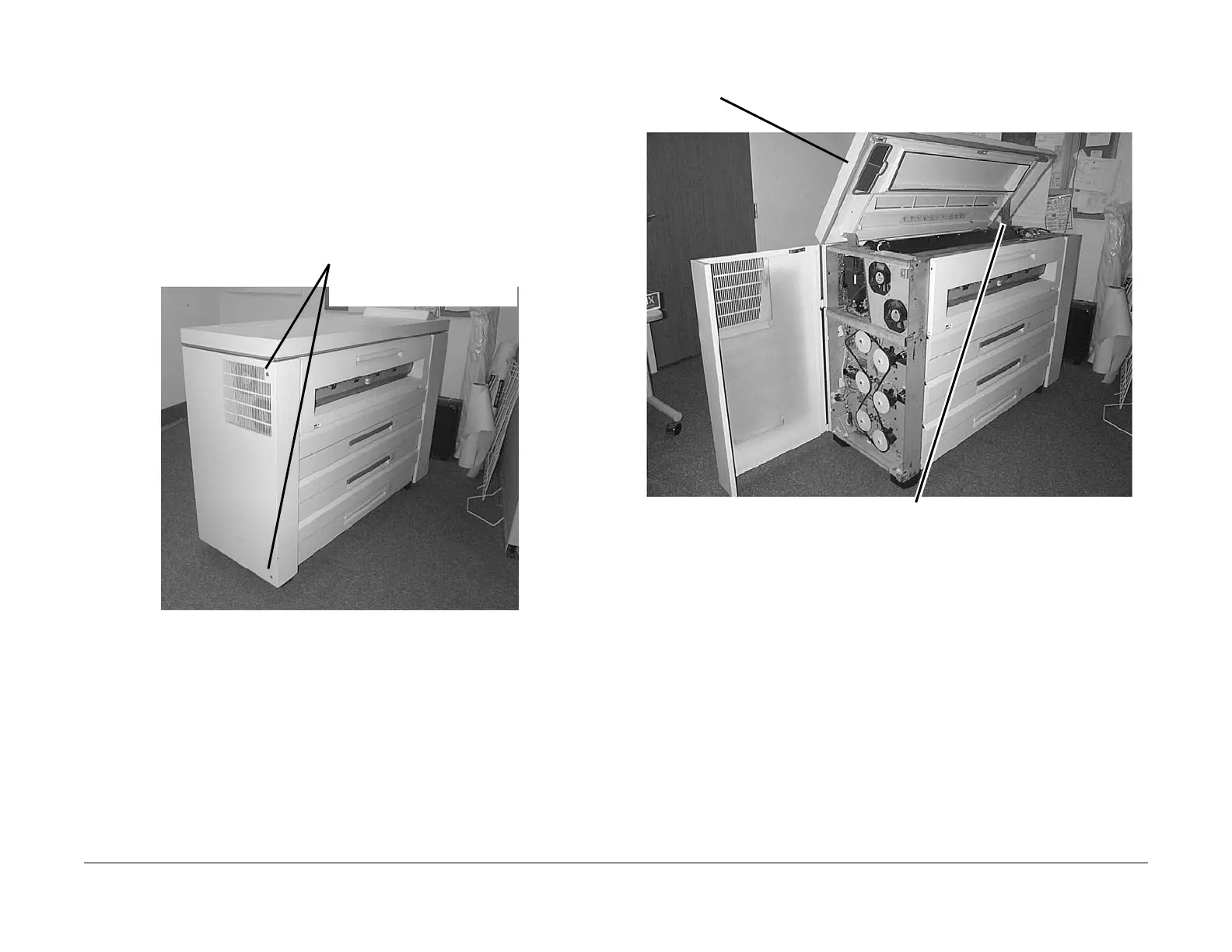

Figure 1 Opening the Printer Rear Door
2. (Figure 2): Lift and latch the Printer Top Cover.
Figure 2 Latching the Printer Top Cover
3. (510dp): Remove the Control Panel (REP 3.3).
(8850) Loosen the 2 retaining
screws
(510dp) Release the Latch using
the handle on the left side of the
cover
2
Swing open the door
1
Lift open the Printer Top Cover
2
Do not release the Top Cover until
the latch engages
To Next Page
