Xerox 8850 - 1.1 Electrical Control Components;DC Power Generation

03/2003
5-7
8850/ 510DP
PL 1.1
Parts Lists

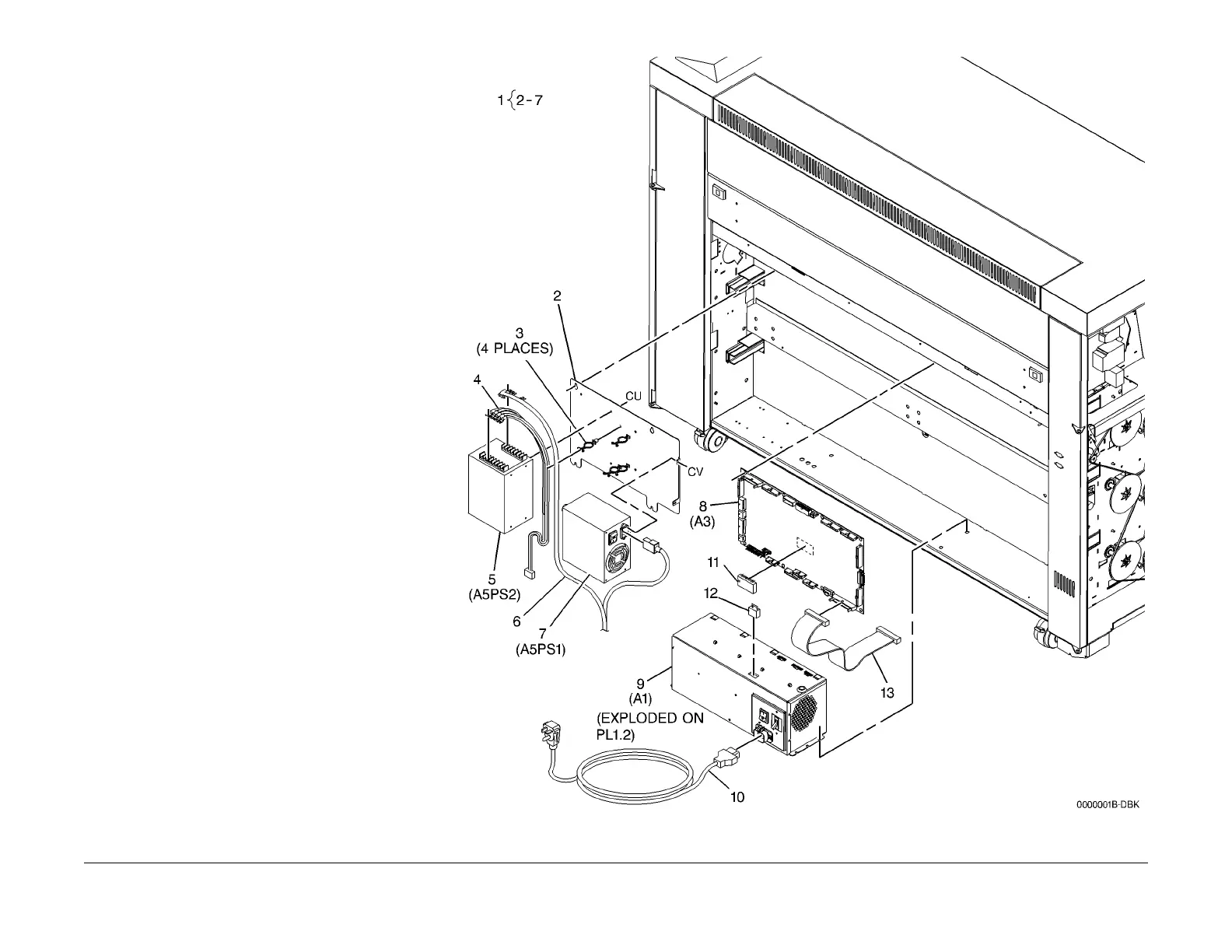

PL 1.1 Electrical Control
Components/DC Power Generation
Item Part Description
1 105K25951 Low Voltage Power Supply
Assembly (LVPS) (W/TAG 1)
2 – LVPS Chassis (P/O PL 1.1 Item 1)
3 – Twist Clamp (P/O PL 1.1 Item 1)
4 – LVPS DC Output Harness (P/O PL
1.1 Item 1)
5 – Power Supply (24V DC) (A5PS2)
(P/O PL 1.1 Item 1)
6 – LVPS AC Power Harness (P/O PL
1.1 Item 1)
7 105E15060 Power Supply (5V DC) (A5PS1)
8 160K73004 Main PWB (A3) (8850) (REP 3.1)
– 960K10720 Main PWB (A3) (510dp) (REP 3.1)
9 101K42713 AC Module Assembly (A1) (TAG 7 )
10 117K39560 Power Cord (110V)
– 117E23750 Power Cord (220V)
– 117E23751 Power Cord (220V)
– 152S05101 240V/13A UK
– 152S05100 250V/16A Europe
11 733W05871 SRAM
12 113K03160 Jumper
13 162K29730 Ribbon Cable
