Xerox 8850 - REP 10.9 Fuser Exit Sensor (S2)

03/2003
4-134
8850/ 510DP
REP 10.8, REP 10.9
Repairs and Adjustments

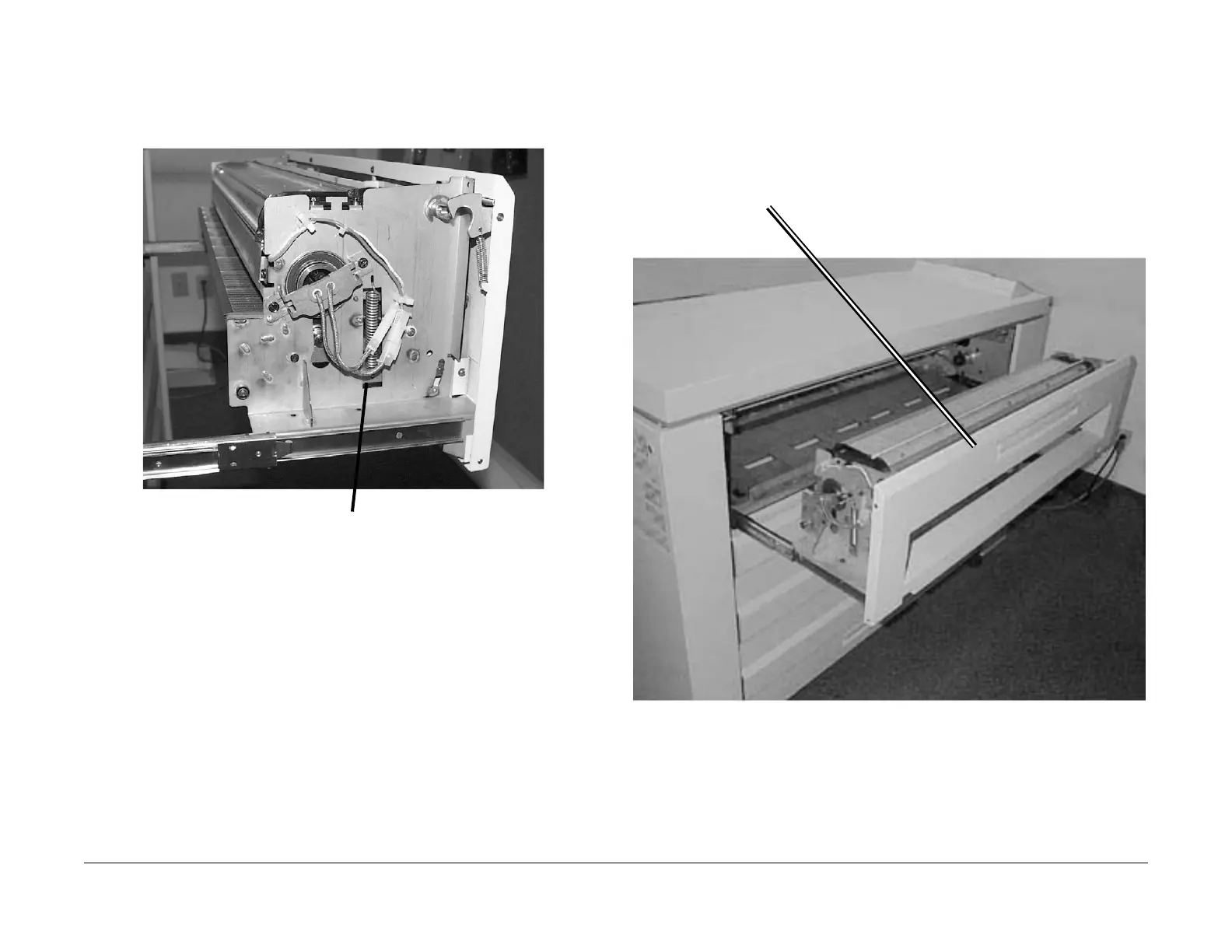

4. (Figure 10): Reinstalling the Pressure Roll Spring.
Figure 10 Reinstalling the Spring
REP 10.9 Fuser Exit Sensor (S2)
Parts List on PL 10.4
Removal
1. (Figure 1): Access the Fuser.
Figure 1 Accessing the Fuser
2. (Figure 2) and (Figure 3): Remove the Upper Sheet Feed Housing off the Fuser
1
Insert the spring in the top
hole of the Pressure Roll
1
Pull up on the handle and pull open the
Fuser Module Drawer
1
Support the Upper Sheet Feed
Housing from falling
2
Remove the two screws
