03/2003
4-12
8850/ 510DP
REP 7.3, REP 7.4
Repairs and Adjustments

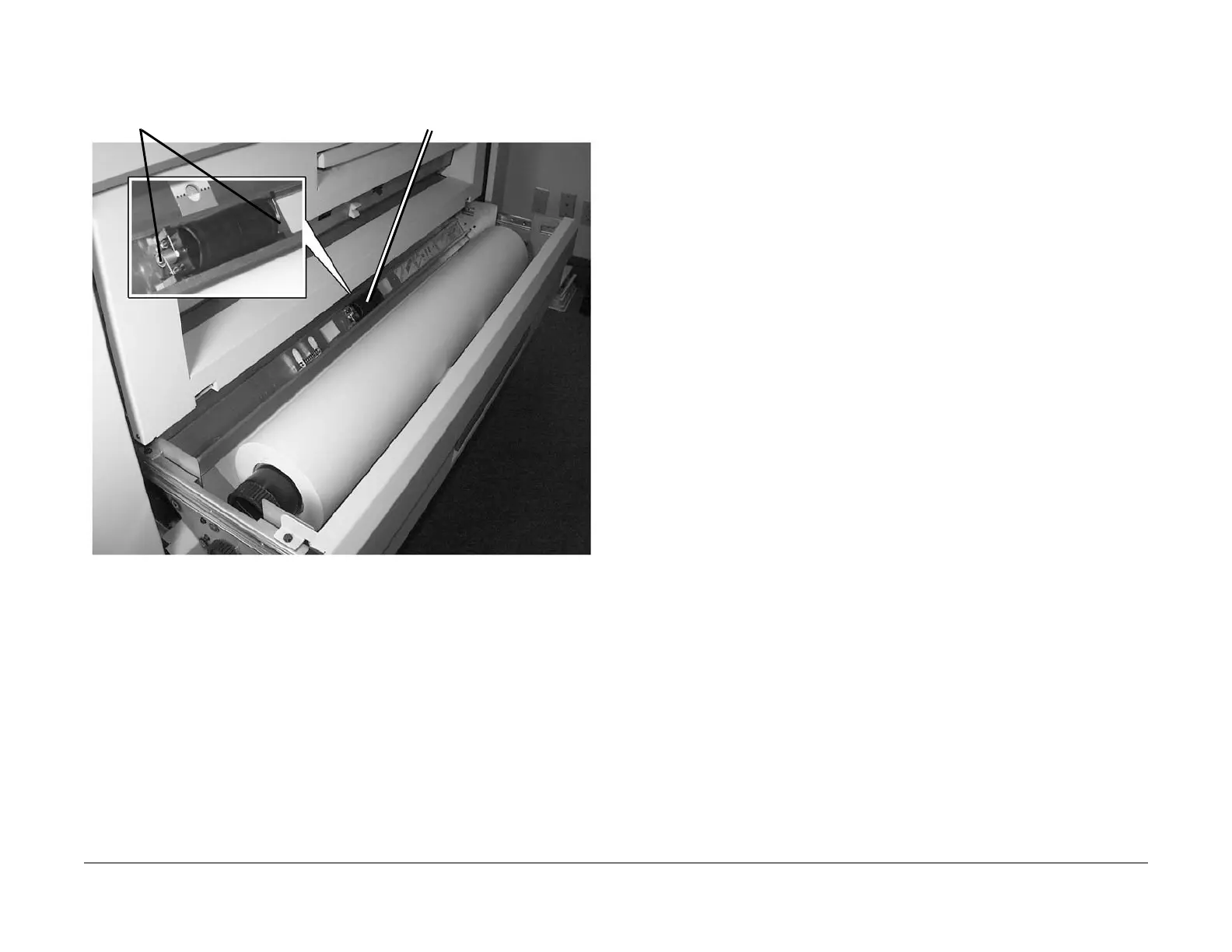

Figure 1 Removing the Roll Feed Pinch Rolls
REP 7.4 Roll Feed Drive Roll
Parts List on PL 7.1
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
NOTE: All three Roll Feed Drive Roll assemblies are removed the same way.
Removal
1. Remove the appropriate Roll Media Supply Drawer (REP 7.1).
2. Remove the Feed Clutch (REP 7.5).
3. Remove the Toner Waste Container.
4. (Figure 1): Remove the Roll Feed Drive Roll.
1
Remove the two Pinch Roll Springs from
the plastic mounts
2
Remove the Roll Feed
Pinch Rolls and Shaft
3
Remove an E-ring from one end of the
Roll Feed Pinch Roll Shaft to access the
Pinch Rolls
To Next Page
