03/2003
5-40
8850/ 510DP
PL 14.1
Parts Lists

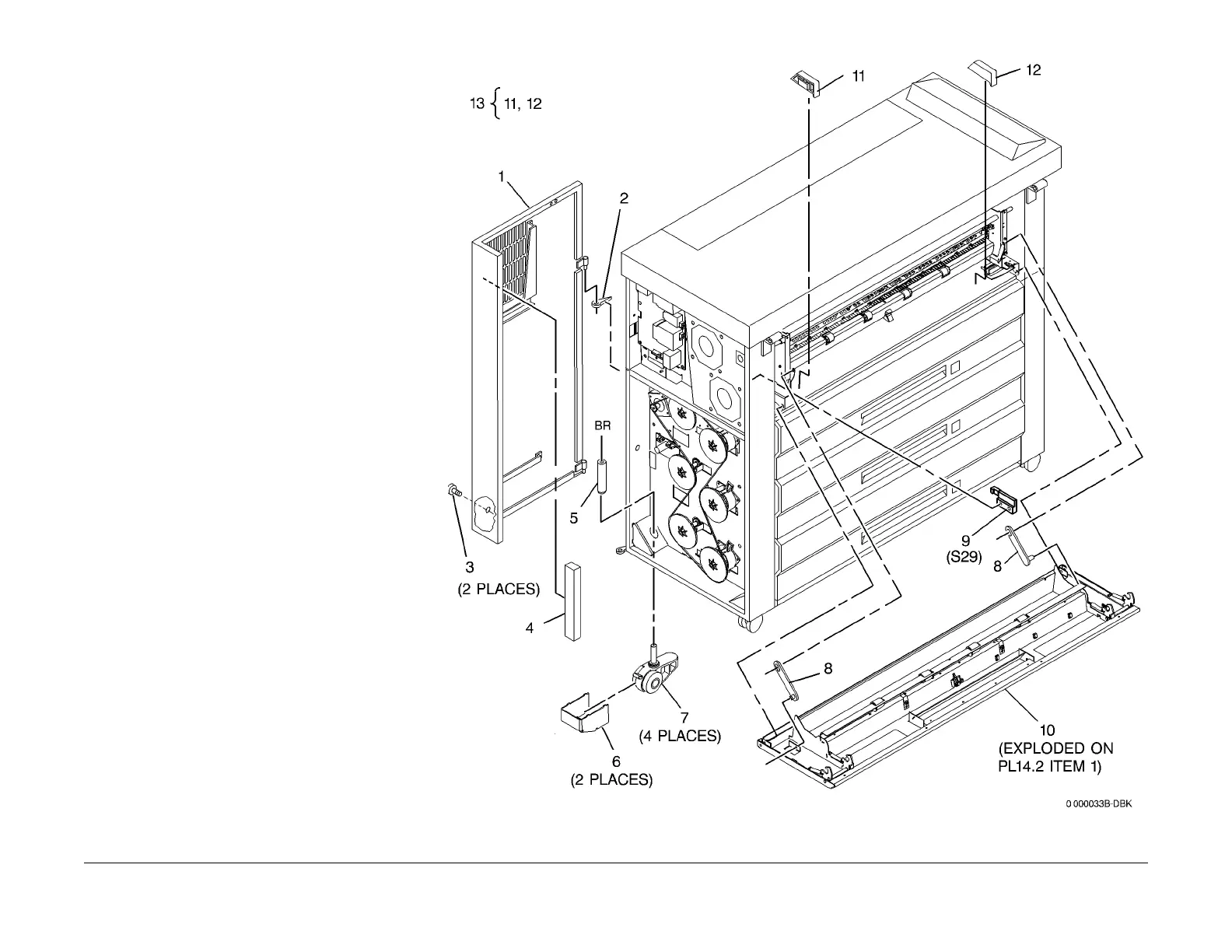

PL 14.1 Transport Latching Cover and
Rear Door
Item Part Description
1 048K47700 Rear Door
2 014E20541 Left Hinge Spacer
3 029E28060 Fastener
4 035E41160 Gasket
5 – Castor Tube Support (Not Spared)
6 – Ramp Bracket (Not Spared)
7 017K01120 Caster
8 – Bracket (Not Spared)
9 110K08970 Fuser Drawer Interlock Switch
(S29)
10 802K61140 Transport Latching Cover Assembly
(510dp)
– 802K40242 Transport Latching Cover Assembly
(8850) (TAG 8 )
11 038K14990 Left Side Guide (8850)
– 038K15460 Left Side Guide (510dp)
12 038K15000 Right Side Guide (8850)
– 038K15470 Right Side Guide (510dp)
13 604K12740 Side Guide Kit
To Next Page
