Xerox 8850 - REP 10.7 Edge and Center Thermistors (RT 2) and (RT 3)

03/2003
4-128
8850/ 510DP
REP 10.7
Repairs and Adjustments
REP 10.7 Edge and Center Thermistors (RT 2) and (RT 3)
Parts List on PL 10.3
Removal
1. (Figure 1): Access the Fuser Module.

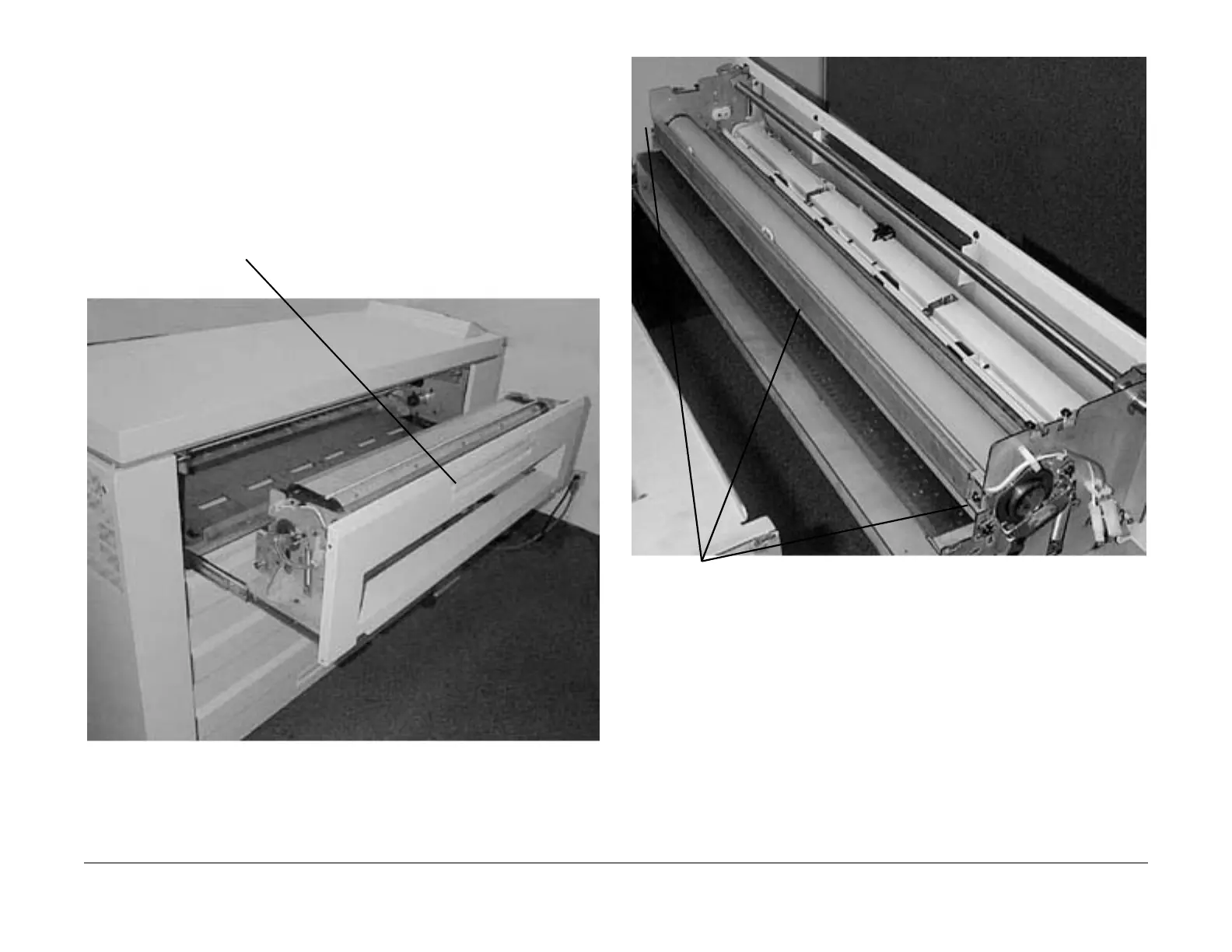

Figure 1 Accessing the Fuser Module
2. Remove the Fuser Heat Roll (REP 10.2)
3. (Figure 2): Access the Edge (RT 2) or Center (RT3) Thermistor.
Figure 2 Accessing the Edge and Center Thermistors
1
Pull up on the handle and pull open the
Fuser Module Drawer.
1
Remove the two screws,
one each side and remove
the Cover
